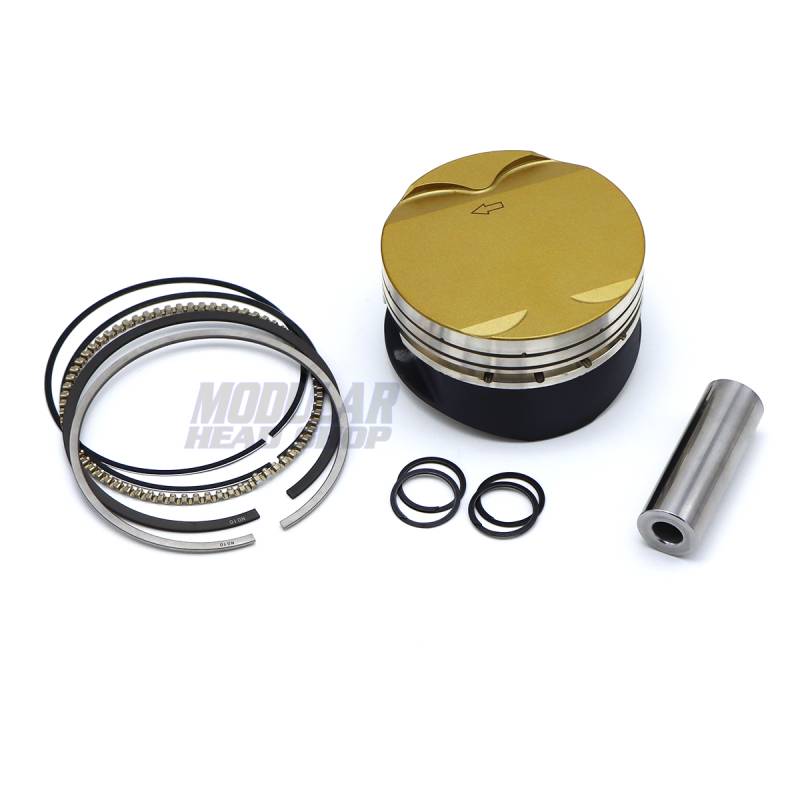

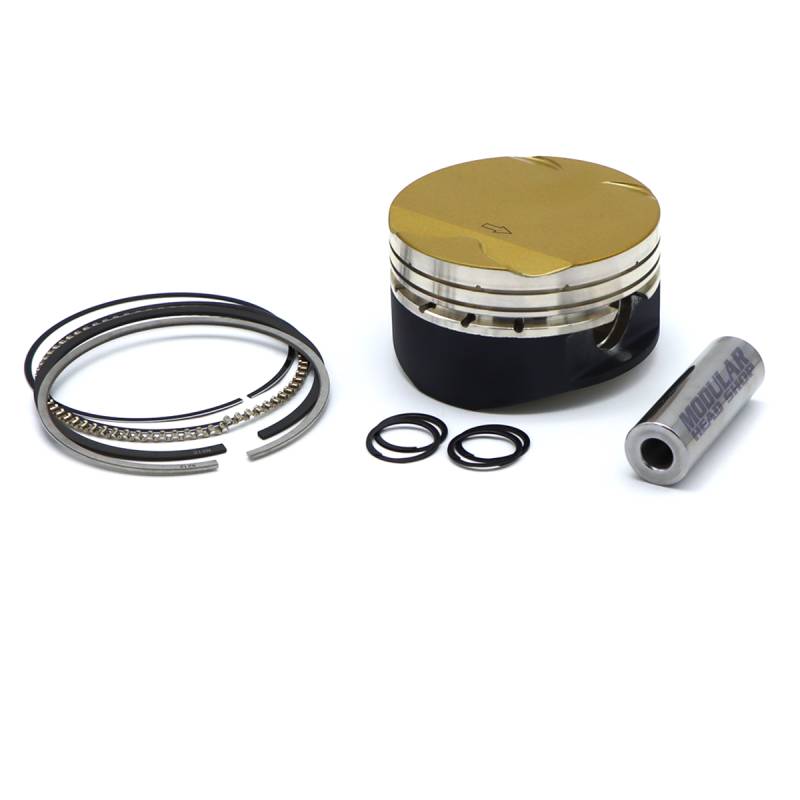

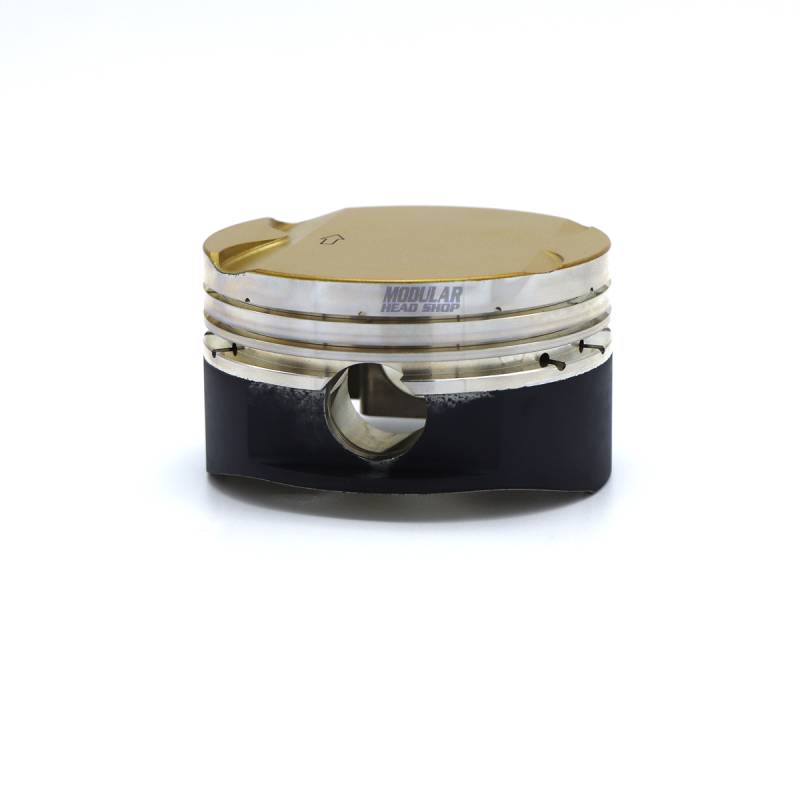

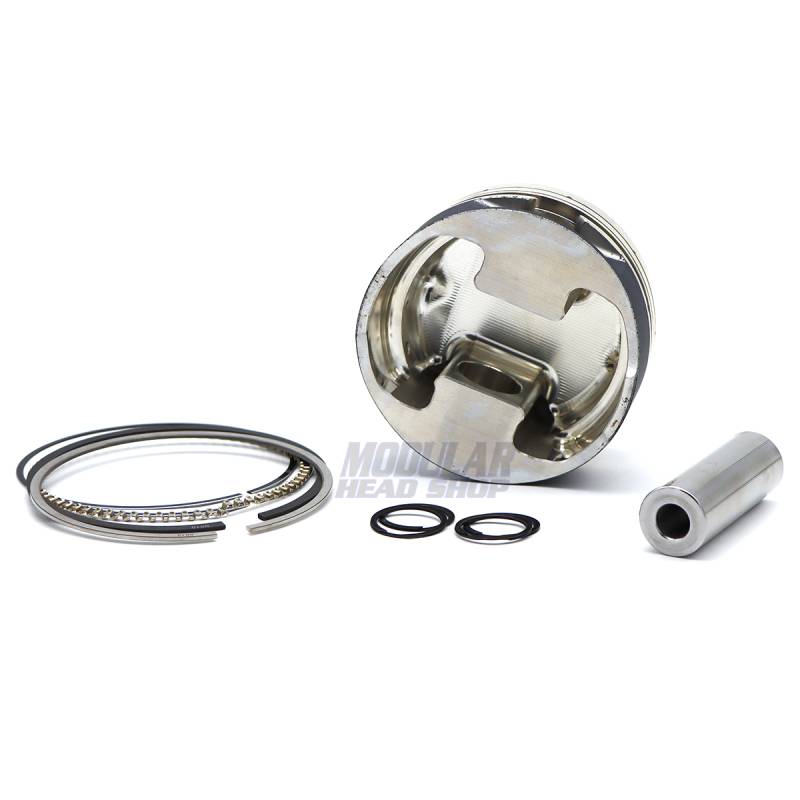

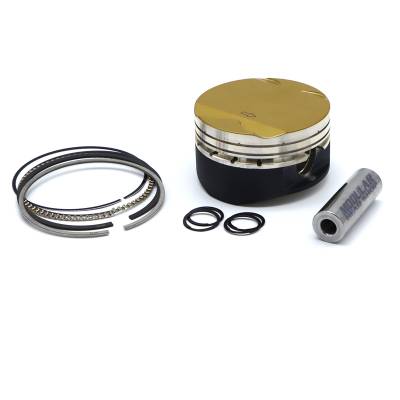

MHS / Wiseco Gen 1/2 5.0L Coyote Competition Piston and Ring Kit- 3.650" Bore, -3cc Flat Top

MHS-305035
Includes Lateral Gas Ports, Moly Skirt Coating, .200" Wall Tool Steel Pins, Wiseco Steel Top / Napier 2nd Ring Set
Pricing: $1,799.00
Qty:
Free Shipping!

Description

This MHS / Wiseco Piston and Ring Kit is designed for competition use and capable of relabiably holding 2500+ HP and 45+ lbs of boost. These Pistons have many subtle upgrades and details that make them just plain work!

3.650" Bore - This part number was originally designed to be a replacement for our 3.630" Bore Pistons. If you are starting with a new build, we highly suggest starting with the 3.630" Bore Pistons and using these for the next time the engine block needs to be serviced.

Why 10:1 Compression? It's a good compression ratio for high boost pressures. There is no need to go any higher, just to have to pull more timing. We have had extremely good success in the 10.0:1 - 10.5:1 Compression range on both Ethanol based fuels and Methanol.

  • 3.650" Bore

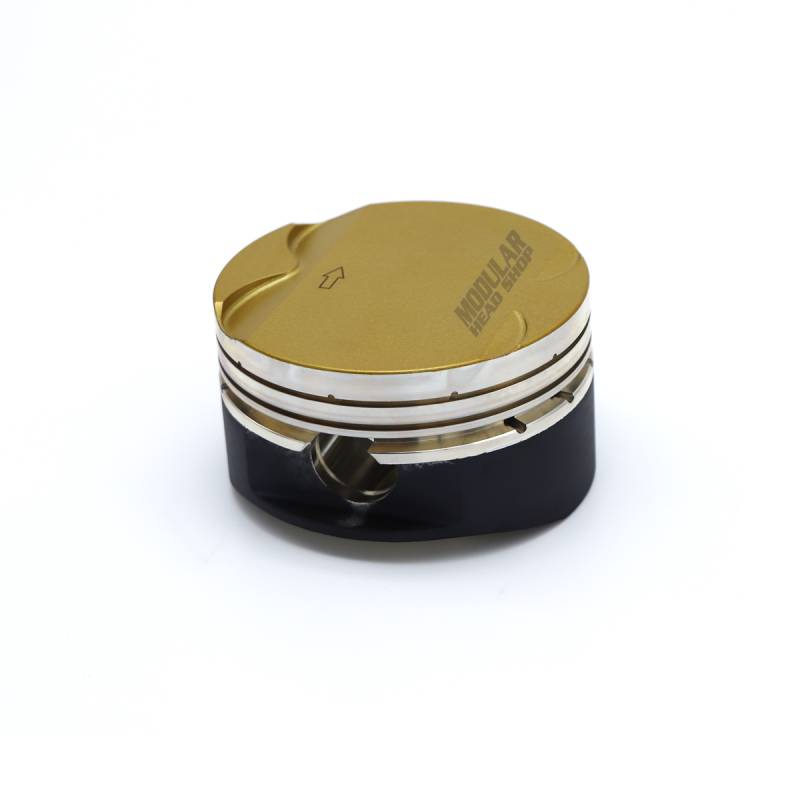

  • -3cc Flat Top
  • Full Round 2618 Competition Forging
  • .300" Down Top Ring with Max Ring Land Spacing
  • Lateral Gas Porting for better Top Ring Seal

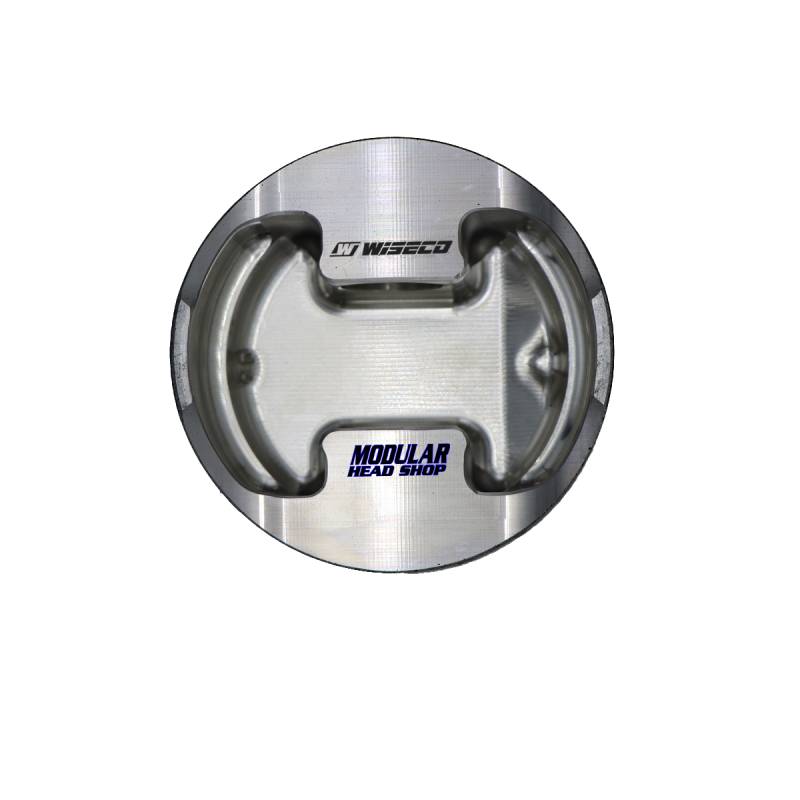

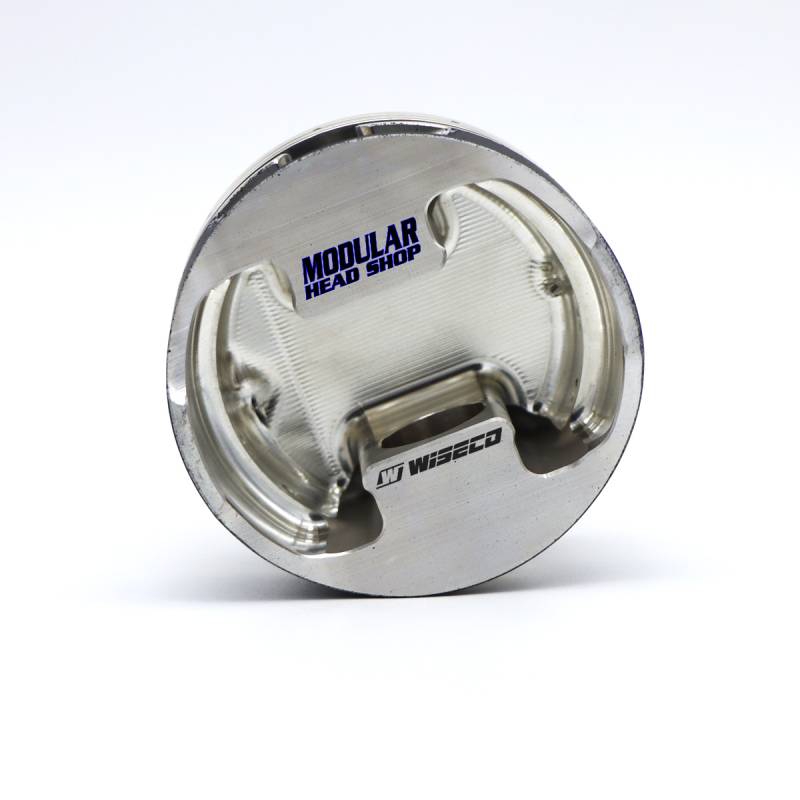

  • Internal Skirt and Undercrown Mill for Lightening
  • Ceramic Dome Thermal Barrier Coating
  • Spray on Moly Skirt Coating
  • Double Broached Pin Oilers
  • 2.500" x .230" Wall Tool Steel Wrist Pins
  • Double Spiral Locks
  • Wiseco GNX Rings - Nitrided Steel Top, Napier 2nd
Part Number  MHS-305035
Application Ford Gen 1 / 2 5.0L Coyote
Bore  3.650"
Stroke  3.650"
Rod Length  5.933"
Compression Height  1.165"
Piston Volume -3cc
Piston Skirt Design  Full Round
Piston Material  2618 Aluminum Alloy
Piston Average Weight  382g
Compression Ratio 10.1:1 with 57cc Chambers and .040" Gasket
Included Wrist Pin JE 866-2500-23-52S
Wrist Pin Material  52100 Tool Steel
Wrist Pin Dimension  .866" x 2.500" x .230" Wall - 146g
Lock Style  Double Spiral Locks
Replacement Lock PN  JE 866-042-CS
Ring Stack  1.5mm x 1.5mm x 3mm
Included Piston Ring Set  3650GNX
Piston Ring Details  Gas Nitrided Steel Top, Cast Iron Napier 2nd, 3 Piece Oil
Included Oil Rail Supports  GLS11
Piston Assembly Reciprocating Weight   569g - Pistons, Pins, Clips and Rings
