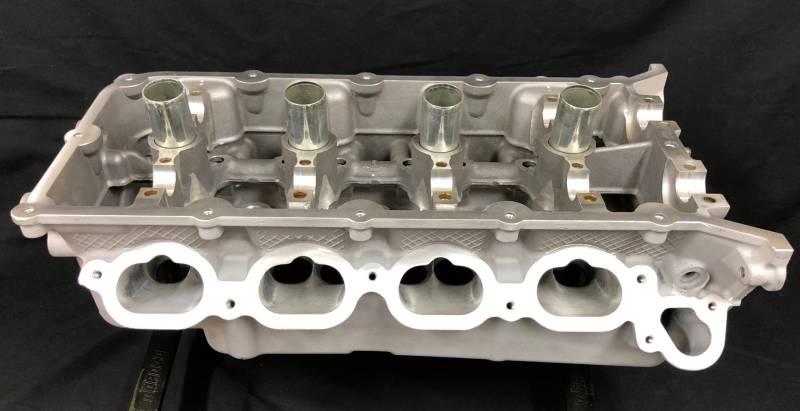

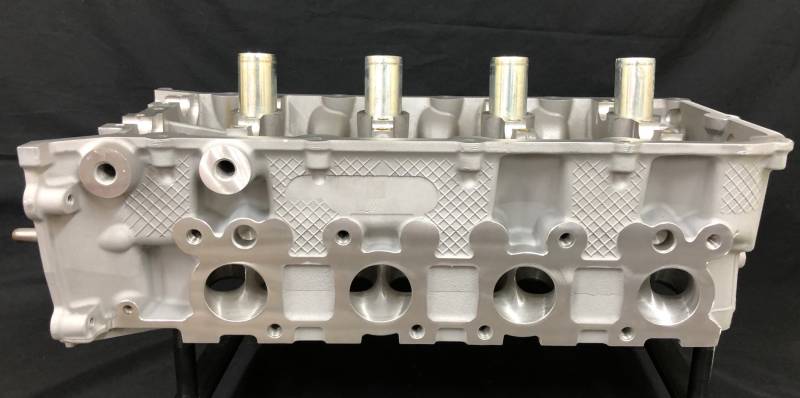

5.0L Coyote Ti-VCT Stage 3 Competition CNC Porting Package

MHS-Ti-VCT-STG3CNC
Stage 3 CNC Porting Package for 5.0L Ti-VCT Cylinder Heads - Cleaning, Stage 3 CNC Program, Bronze Guides, Competition 5 Angle Valve Job, Manley BeadLoc Groove Valves, PAC Stage 4 RPM Series Springs and Ti Retainers
Please Call for Availability
407-564-8069

Description



MHS 5.0L Coyote Ti-VCT Stage 3 Competition CNC Porting Package

These are the Ultimate 5.0L Ti-VCT Cylinder Heads. They are capable of handling upwards of 40lbs of boost and 9000 RPM. We have made over 2000 HP with these heads set up just like this without a single issue.
These heads cannot be ran with the Ti-VCT Phasers due to the amount of Spring Pressure.

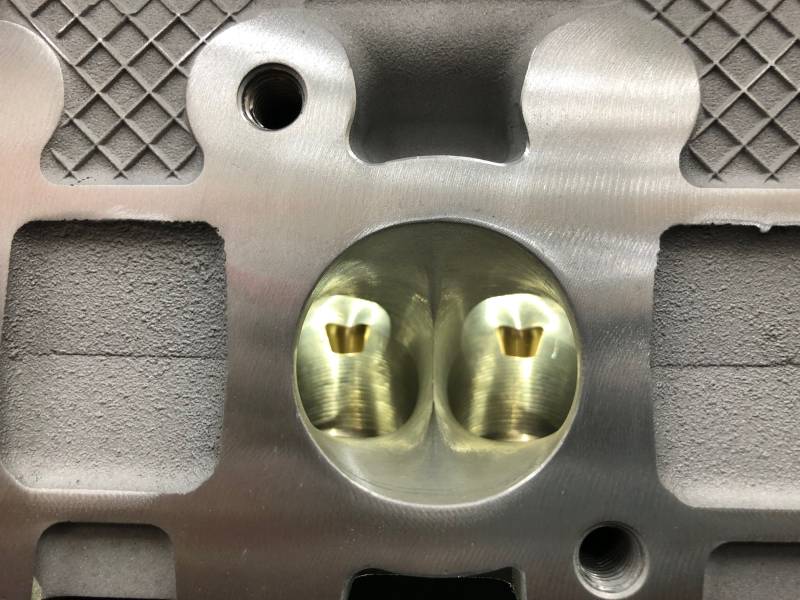

We start by disassembling the heads, thoroughly inspecting them for any possible damage, removing all oil galley plugs and freeze plugs, removing the old valve guides, deep cleaning them and bead blasting the ports and chambers to remove any additional carbon deposits. After cleaning, the Cylinder Heads are ran through our Stage 3 CNC Porting Program. The heads are then moved over to our Seat and Guide area where our custom Bronze Guides are installed and honed to size. We then perform our Competition 5 Angle Valve Job and then blend the bowls to the valve seat. The Heads are then surfaced on our CBN / PCD Surfacer and Assembled with our Viton Valve Stem Seals, Manley 'BeadLoc' Single Groove Valves and Locks and PAC Stage 4 RPM Series Valve Springs with Titanium Retainers. Heads will also be assembled with new USA Made Brass Freeze Plugs and New Oil Gallery Plugs.

Cylinder Heads are to be sent in with camshafts, lash adjusters and followers removed. If you would like to leave them in the cylinder heads, we can clean all the parts, polish up the camshafts and re-install everything for an additional cost.

Includes:

  • Disassembly and Cleaning of all Parts
  • Bead Blasting of Ports and Chambers

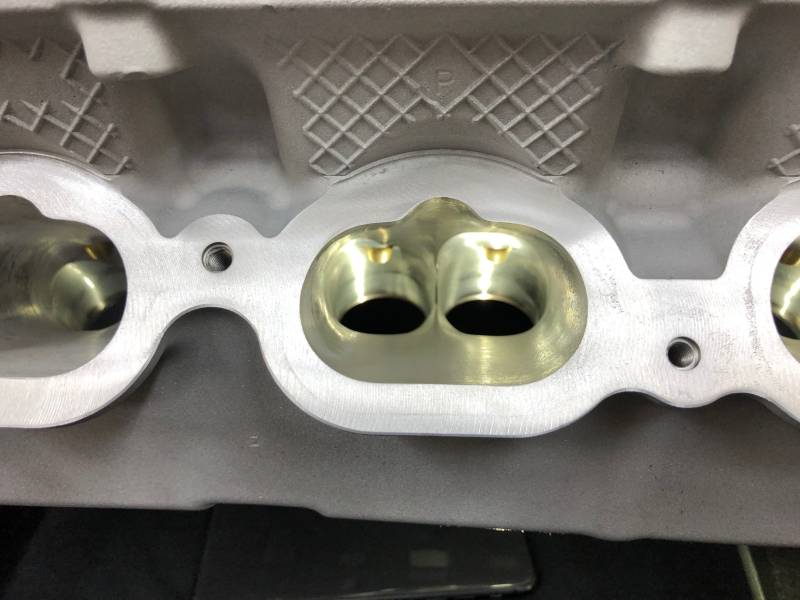

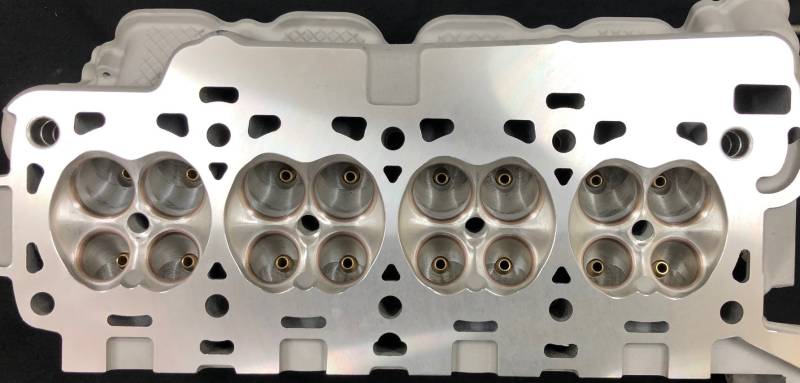

  • Stage 3 CNC Porting and Chamber Programs
  • Hand Blended Bowls to Valve Seats
  • MHS Bronze Valve Guides - Honed to Size

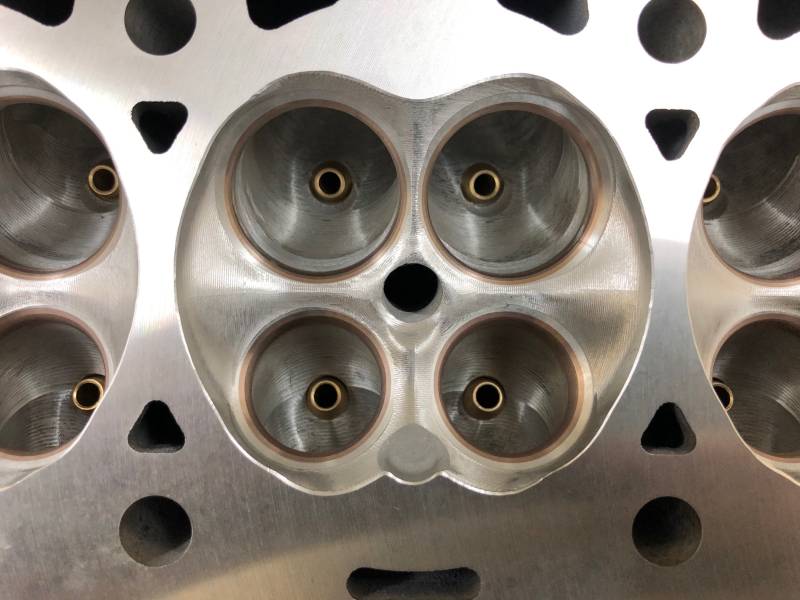

  • Competition 5 Angle Valve Job

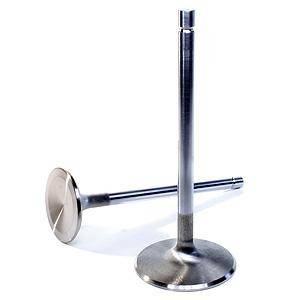

  • Manley BeadLoc Singe Groove Stainless Valves and Locks
  • Manley BeadLoc Single Groove Locks

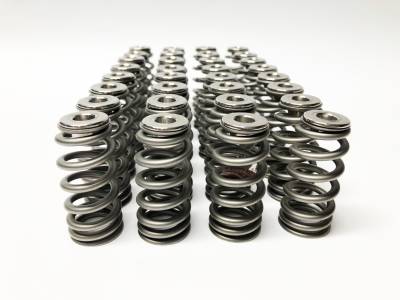

  • PAC Stage 4 RPM Series Springs - 125lbs Seat Pressure
  • MHS Titanium Retainers
  • CBN Surfacing
  • New Viton Valve Stem Seals
  • New Brass Freeze Plugs and Oil Gallery Plugs
  • Assembly

Note: +1mm Oversize Valves only applies to GEN 1 Heads. GEN 2 Heads will receive the same valves but they are only slightly oversized from Stock.

SHIPPING - After your order is received, we will ship out a set of Cylinder Head Boxes to you with Pre-Paid Return Labels, all the proper packaging and packaging instructions to ensure your heads arrive safely. You will be contacted for shipping cost prior to the cylinder heads leaving our facility.
