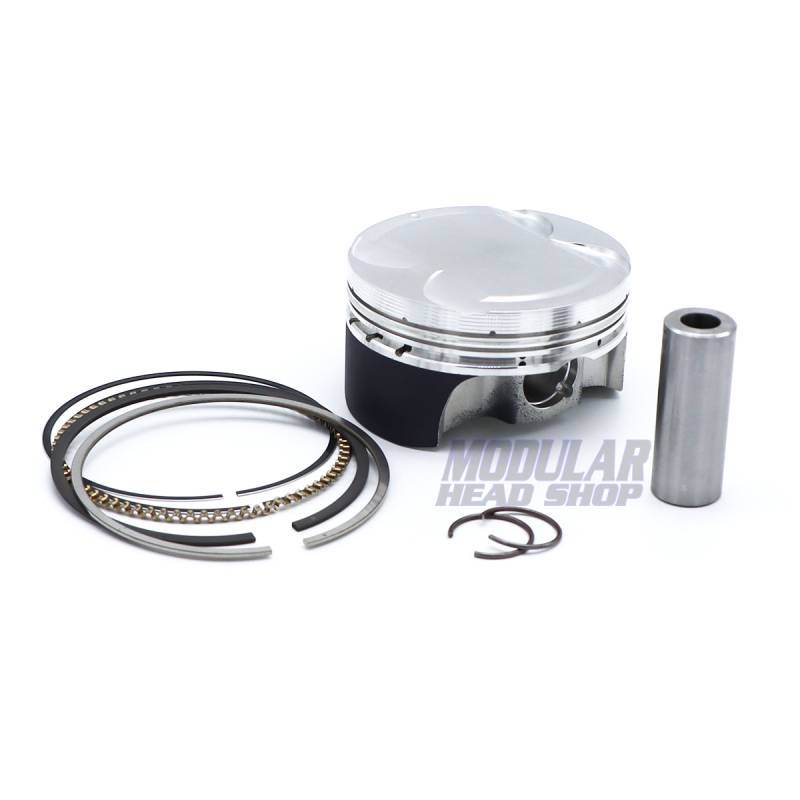

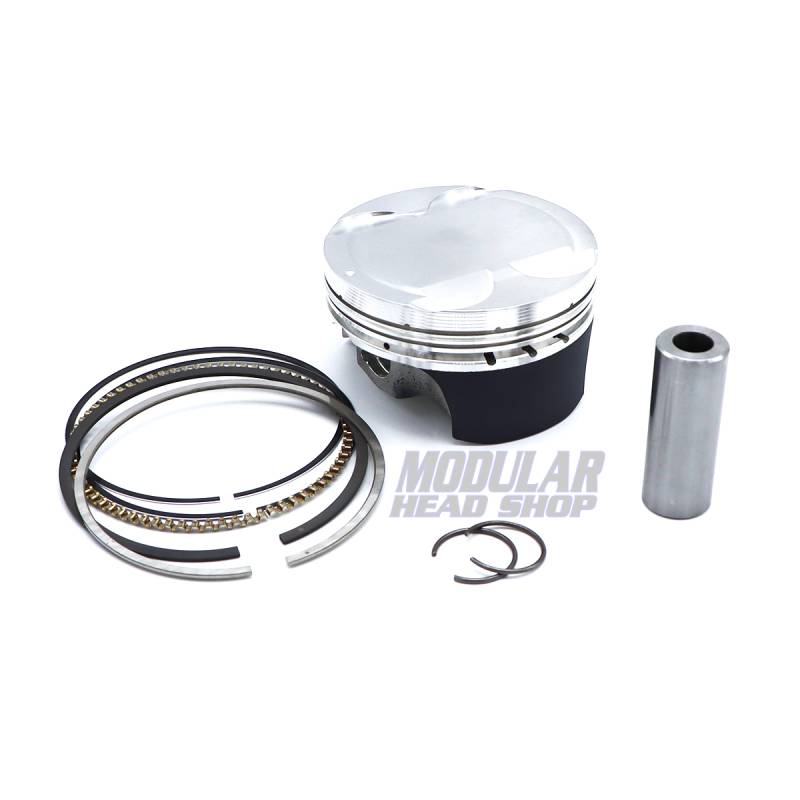

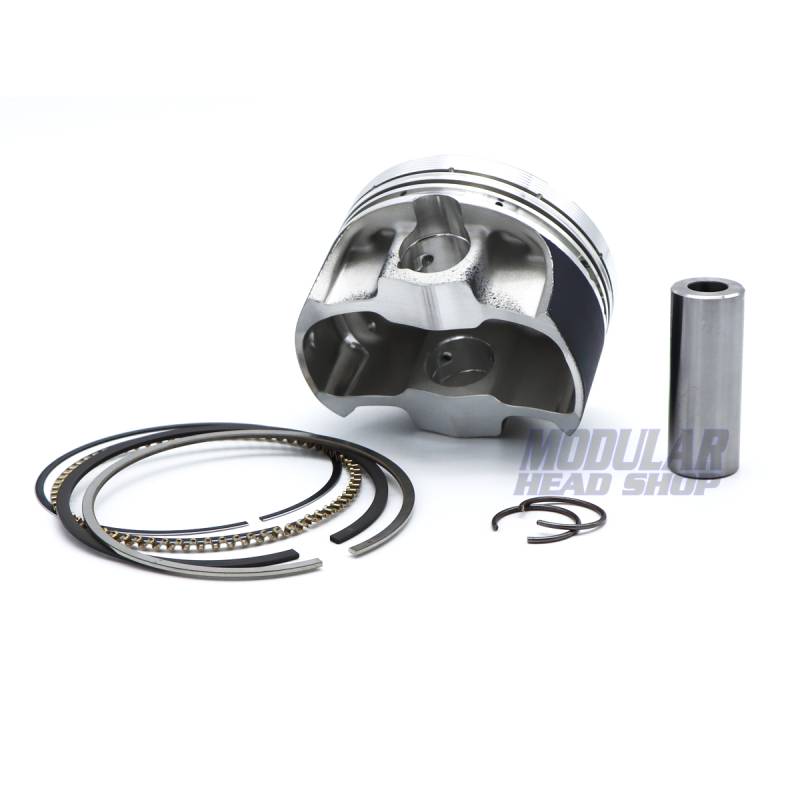

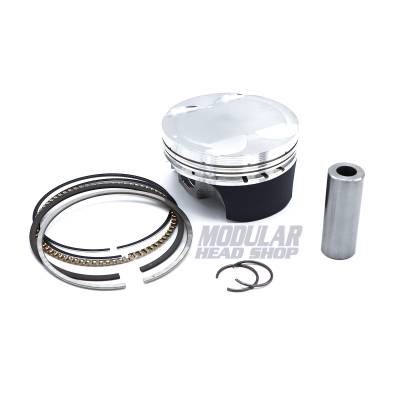

MHS / Wiseco Gen 1/2 5.0L Coyote Street / Strip Piston and Ring Kit - 3.630" Bore, +2cc Dome, 11:1 CR

MHS-305030
Includes Lateral Gas Ports, Moly Skirt Coating, .200" Wall Tool Steel Pins, Wiseco Steel Top / Napier 2nd Ring Set.
Pricing: $1,349.00
Qty:
Free Shipping!

Description

Compression Ratio: 11.0:1

MHS / Wiseco Gen 1/2 5.0L Coyote Street / Strip Piston and Ring Kit. These Pistons are a great choice for all power adder combinations up to 1500 WHP and have an excellent strength to weight ratio.

  • 3.630" Bore
  • +2.0cc Dome / 11.0:1 Compression
  • In-Board / Strutted 2618 Alloy Forging
  • .300" Down Top Ring
  • Lateral Gas Porting for better Top Ring Seal
  • Moly Skirt Coating
  • Dual Forced Pin Oilers
  • 2.250" x .200" Wall Tool Steel Wrist Pins
  • Wiseco GNX Ring Set - Steel Top, Napier 2nd
Part Number  MHS-305030
Application Ford 5.0L GEN 1 /2 Coyote
Bore  3.630"
Stroke  3.650"
Rod Length  5.933"
Compression Height  1.176"
Piston Volume +2.0cc
Piston Skirt Design  Strutted Forging
Piston Material  2618 Aluminum Alloy
Piston Average Weight  396g
Compression Ratio 11.0:1 with Factory G3 Cylinder Heads (57cc)
Included Wrist Pin Wiseco S796
Wrist Pin Material  52100 Tool Steel
Wrist Pin Dimension  .866" x 2.250" x .200" Wall - 121.5g
Lock Style  Round Wire
Replacement Lock PN  W5590
Ring Stack  1.5mm x 1.5mm x 3.0mm
Included Piston Ring Set  Wiseco 3635GNX
Piston Ring Details  Gas Nitrided Steel Top, Cast Iron Napier 2nd, 3 Piece Oil
Piston Assembly Reciprocating Weight   549g - Pistons, Pins, Clips and Rings
