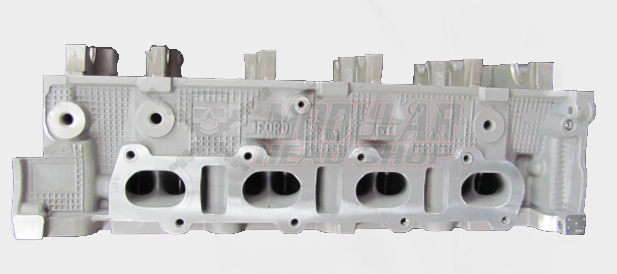

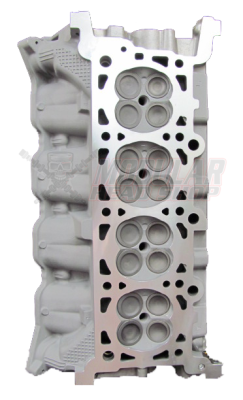

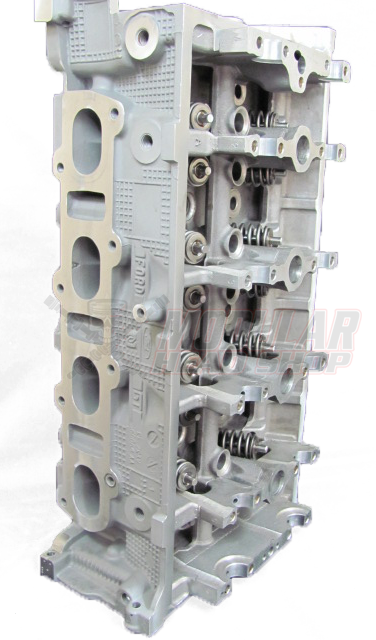

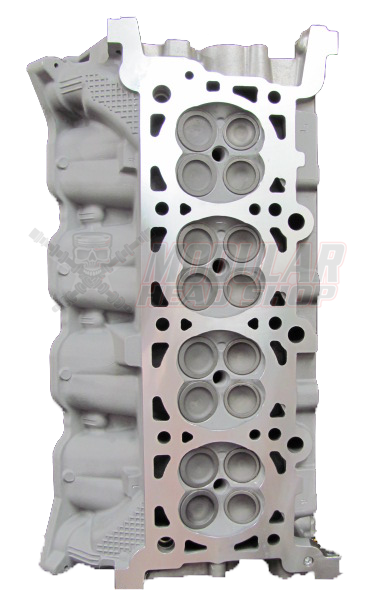

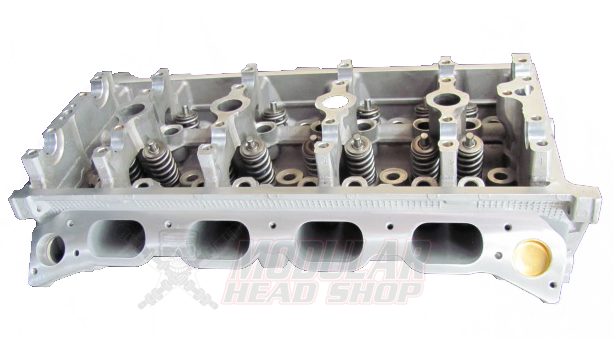

Ford GT / GT500 Stage 1 Cylinder Head Package

MHS-GT500-STG1
Includes Bowl Porting, Bronze Valve Guides, Performance Valve Job, Reground Stock Valves, MHS / PAC Stage 3 RPM Series Valve Springs, 4130 Chrome Moly Retainers, Surfacing and Assembly.
Pricing: $1,699.00

Customize Your Item

- Cylinder Head Cores -
 * required
Qty:
Free Shipping!

Description

MHS Ford GT / GT500 Stage 1 Cylinder Head Package

We currently have plenty of GT500 Cylinder Head Cores in stock. These Cylinder Heads can be purchased outright, or you can send in your own cores.

This is a great package for the budget minded ones. We realize some do not want to fork out the money for CNC ported heads as they are not necessary for every application. However, there are improvements that can be made to the factory castings while they are being freshened up.

We can fix all those issues while improving performance. The answer is our Freshen Up Package.

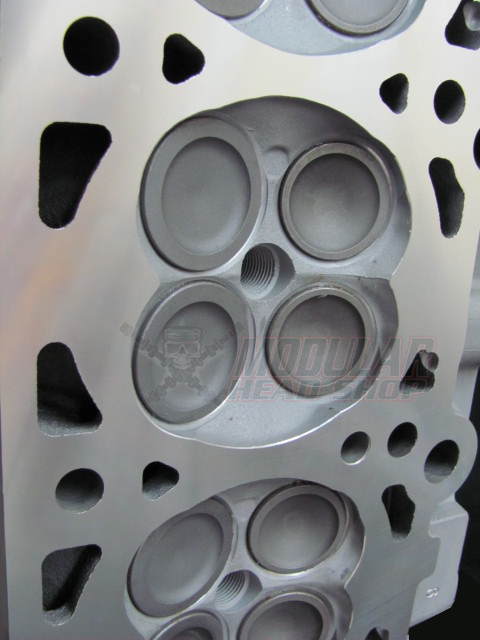

We start by disassembling the heads, thoroughly inspecting them for any possible damage, removing all oil galley plugs and freeze plugs, removing the old valve guides, deep cleaning them and bead blasting the ports and chambers to remove any additional carbon deposits. The heads are then bowl ported, smoothing out the transition from both the roof and short side to the valve seats. After that we install our custom length, performance tapered Manganese Bronze Valve Guides and size them with a Diamond hone. We then perform our Performance Valve Job (4 Angle Intake, 3 Angle / Radius Exhaust). Stock Valves are reground, stems polished and Intake Valve back-cut for additional flow. The Heads are then surfaced on our CBN / PCD surfacer and assembled with our Viton Valve Stem Seals, MHS / PAC Stage 3 RPM Series Valve Springs and 4130 Chrome Moly Retainers. Heads are finished up with all new USA made Brass Freeze Plugs and New Oil Gallery Plugs.

Includes:
Disassembly and Cleaning of all Parts
Bead Blasting of Ports and Chambers
Bowl Porting
MHS Bronze Valve Guides - Honed to Size
Performance Valve Job (4 Angle Intake, 3 Angle / Radius Exhaust)
Reground Stock Valves with Polished Stems and Back Cut on Intake
CBN Surfacing
New Viton Valve Stem Seals
MHS / PAC Stage 3 RPM Series Valve Springs and 4130 Chrome Moly Retainers
New Brass Freeze Plugs and Oil Gallery Plugs
Professional Assembly


SHIPPING- After your order is received, we will ship out a set of Cylinder Head Boxes to you with Pre-Paid Return Labels, all the proper packaging and packaging instructions to ensure your heads arrive safely. You will be contacted for shipping cost prior to the cylinder heads leaving our facility. You will be charged for the inbound shipping and we will cover the outbound shipping after the work is completed.

Details

  • MHS-GT500-STG1
  • MHS-GT500-STG1
  • Modular Head Shop
  • New

Shipping Information

  • Item Requires Shipping
  • 96.0 lbs.
  • W24.0000” x H24.0000” x L24.0000”
  • Free Shipping!
  • This item ships in its own box.
