Ford GT / GT500 Stage 2 CNC Ported Cylinder Head Package

MHS-GT500-STG2CNC
Includes Full CNC Porting, Hand Blended Bowls, Bronze Valve Guides, Performance Valve Job, Reground Stock Valves, MHS / PAC Stage 3 RPM Series Valve Springs, 4130 Chrome Moly Retainers, Surfacing and Assembly.
Please Call for Availability
407-564-8069

Description



MHS Ford GT / GT500 Stage 2 CNC Ported Cylinder Head Package

We currently have plenty of GT500 Cylinder Head Cores in stock. These Cylinder Heads can be purchased outright, or you can send in your own cores.

Our Stage 2 CNC Porting Package for the Ford GT / GT500 Cylinder Heads is a great choice for moderate to high HP street car applications where additional cylinder head flow is wanted. While the GT500 Heads flow very well from the factory, there is a ton of room for improvement. We start by disassembling the heads, thoroughly inspecting them for any possible damage, removing all oil galley plugs and freeze plugs, removing the old valve guides, deep cleaning them and bead blasting the ports and chambers to remove any additional carbon deposits. The heads are then ran on our CNC Porting Program, and bowls are hand blended to the valve seats. After that we install our custom length, performance tapered Manganese Bronze Valve Guides and size them with a Diamond hone. We then perform our Performance Valve Job (4 Angle Intake, 3 Angle / Radius Exhaust). Stock Valves are reground, stems polished and Intake Valve back-cut for additional flow. The Heads are then surfaced on our CBN / PCD surfacer and assembled with our Viton Valve Stem Seals, MHS / PAC Stage 3 RPM Series Valve Springs and 4130 Chrome Moly Retainers. Heads are finished up with all new USA made Brass Freeze Plugs and New Oil Gallery Plugs.

Includes:
Disassembly and Cleaning of all Parts
Bead Blasting of Ports and Chambers

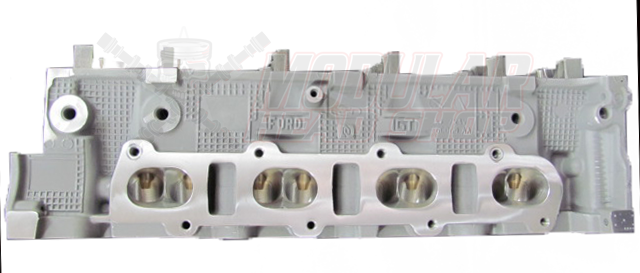

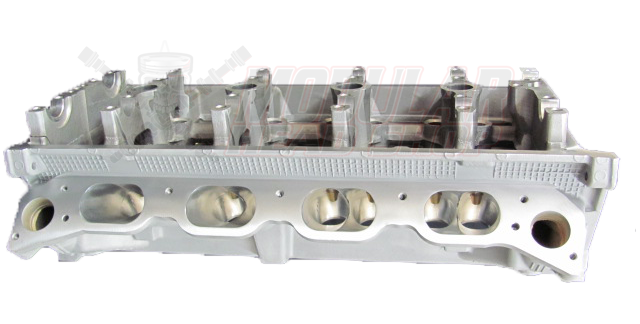

Full CNC Porting

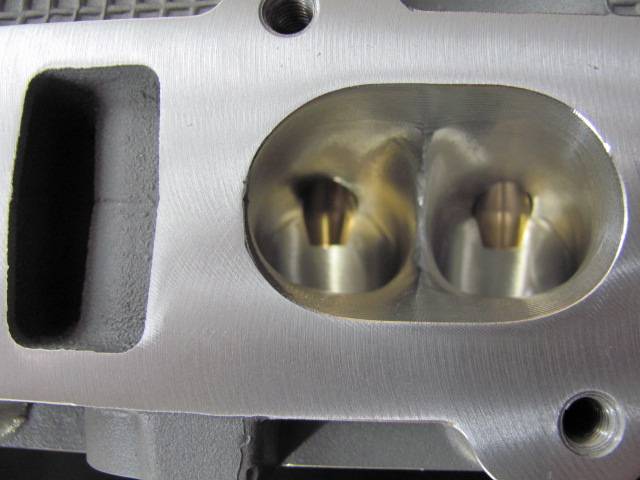

Hand Blending Bowls to Valve Seats
MHS Bronze Valve Guides - Honed to Size

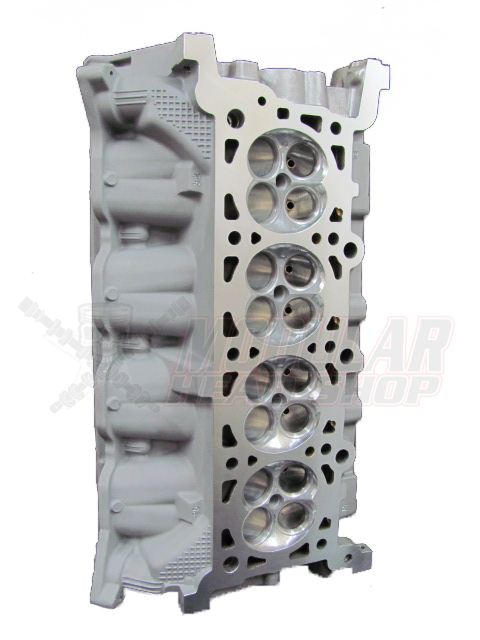

Performance Valve Job (4 Angle Intake, 3 Angle / Radius Exhaust)
Reground Stock Valves with Polished Stems and Back Cut on Intake
CBN Surfacing
New Viton Valve Stem Seals
MHS / PAC Stage 3 RPM Series Valve Springs and 4130 Chrome Moly Retainers
New Brass Freeze Plugs and Oil Gallery Plugs
Professional Assembly


SHIPPING- After your order is received, we will ship out a set of Cylinder Head Boxes to you with Pre-Paid Return Labels, all the proper packaging and packaging instructions to ensure your heads arrive safely. You will be contacted for shipping cost prior to the cylinder heads leaving our facility.

Details

  • MHS-GT500-STG2CNC
  • MHS-GT500-STG2CNC
  • Modular Head Shop
  • New

Shipping Information

  • Item Requires Shipping
  • 96.0 lbs.
  • W24.0000” x H24.0000” x L24.0000”
  • Free Shipping!
  • This item ships in its own box.
