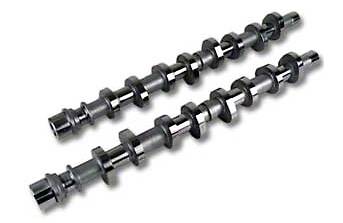

MHS GEN 2 4.6L / 5.4L 2V PI Stage 2.5 N/A Camshafts

MHS-2VPI-STG2.5NA
Absolute Largest Camshafts that will fit without Valve Reliefs. Modified or Aftermarket Intake Valves required. Valve Springs Required
Pricing: $649.00
Qty:
Free Shipping!

Description

Part Number  MHS-2VG2-STG2.5NA-PI
Name  2V Stage 2.5 N/A for PI Heads
Duration @ .050"  228 / 230
Lift  .575" / .550"
Lobe Sep Angle  111.5 + 1.5
Center Lines  110 / 113
Springs Required?  Yes
Suggested Valve Springs  MHS / PAC .600" Lift Stage 2
Valve Reliefs Required?   No - Modified or Aftermarket Intake Valves Required
No Valve Reliefs Required on 5.4L

The Stage 2.5 N/A Camshafts are a max effort design for stock short block applications. These are the asbolute largest cams that will fit without valve reliefs. They do require either our modified Intake Valves or aftermarket Stainless Steel Intake Valves. The stock Intake Valves have a very thick margin. Our modified Intake Valves have a much thinner margin allowing for a little extra PTV clearance. Complementing bolt ons suggested. Lightning 90mm MAF or similar and 24lb Injectors suggested. 3.73 Gears recommended, 2800 - 3000 Stall for Automatic vehicles. Moderate Lope. Valve Springs required.

Details

  • MHS-2VPI-STG2.5NA
  • MHS-2VPI-STG2.5NA
  • Modular Head Shop
  • New

Shipping Information

  • Item Requires Shipping
  • 16.0 lbs.
  • W30.0000” x H8.0000” x L8.0000”
  • Free Shipping!
