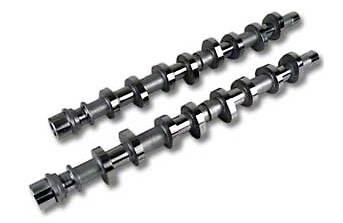

MHS GEN 2 4.6L / 5.4L 2V PI Stage 5 Turbo Camshafts

Modular Head Shop
Click on image to zoom
For Limited Street / Race Applications only.
Pricing: $799.00
Qty:
Free Shipping!
MHS-2VPI-T-STG5
  • MHS-2VPI-T-STG5
    • (0) Reviews: Write first review

    Description

    Part Number  MHS-2VPI-T-STG5
    Name  2V Stage 5 Turbo for PI Heads
    Duration @ .050"  242 / 242
    Lift  .575" / .575"
    Lobe Sep Angle  115 + 5
    Center Lines  110 / 120
    Springs Required?  Yes
    Suggested Valve Springs  MHS Stage 3 Springs
    Valve Reliefs Required?   Yes

    For Limited Street / Race Applications 1000+ HP. 76/75 to 91mm Single or 62/66 or larger twins. Will support boost levels from 25lbs to 40lbs. Built 4R70W, 4L80E, TH400 or Powerglide with Brake. 3800 - 4200 Stall. Suggested for use with Edelbrock Victor Jr or custom sheetmetal intake manifold. Competition Ported Cylinder Heads with oversize valves and matching valve job. Single Radius groove valves highly recommended due to RPM range. Expected shift points anywhere from 8000 - 8600 RPM depending on Intake Manifold and Turbo Size.
