MHS GEN 2 4.6L / 5.4L 2V PI Stage 3 Turbo Camshafts

MHS-2VPI-T-STG3
Valve Reliefs required, no exceptions.
Pricing: $799.00
Qty:
Free Shipping!

Description

Part Number  MHS-2VPI-T-STG3
Name  2V Stage 3 Turbo for PI Heads
Duration @ .050"  232 / 230
Lift  .575" / .575"
Lobe Sep Angle  115.5 + 5.5
Center Lines  110 / 121
Springs Required?  Yes

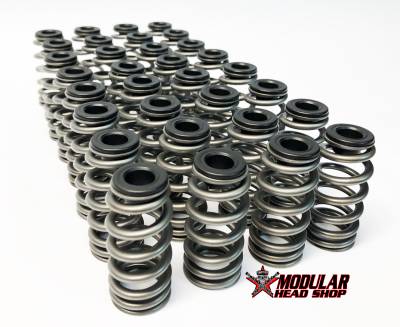

Suggested Valve Springs  MHS Stage 3 Springs
Valve Reliefs Required?   Yes

Valve reliefs required, no exceptions. Recommended for 72mm - 78mm Mid-Frame Single Turbo applications. Can also be used with 60mm - 66mm Twin Turbo applications. For use with ported Cylinder Heads with matching valve job. Suggested for 16 - 24lbs of Boost. We recommend using the Edelbrock Victor Jr., TFS Track Heat or custom sheetmetal intake for these camshafts. 3.27 - 3.55 Gears, 3200 - 3400 Stall. Shift points anywhere from 6900 - 7400 depending on Intake Manifold and Turbo size.

Details

  • MHS-2VPI-T-STG3
  • MHS-2VPI-T-STG3
  • Modular Head Shop
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 16.0 lbs.
  • W30.0000” x H8.0000” x L8.0000”
  • Free Shipping!
