Ready to Ship - Custom 2V TFS 185cc / 44cc Cylinder Heads

(0) Reviews: Write first review
2V-TFS44-RTS
MHS Spec'd Custom Manley Stainless Valve, MHS / PAC RPM Series Spring Kit w/ Titanium Retainers
Limited Supply: only 1 remaining
Pricing: $5,300.00

Customize Your Item

- Configuration -
 * required
Qty:
Free Shipping!

Description

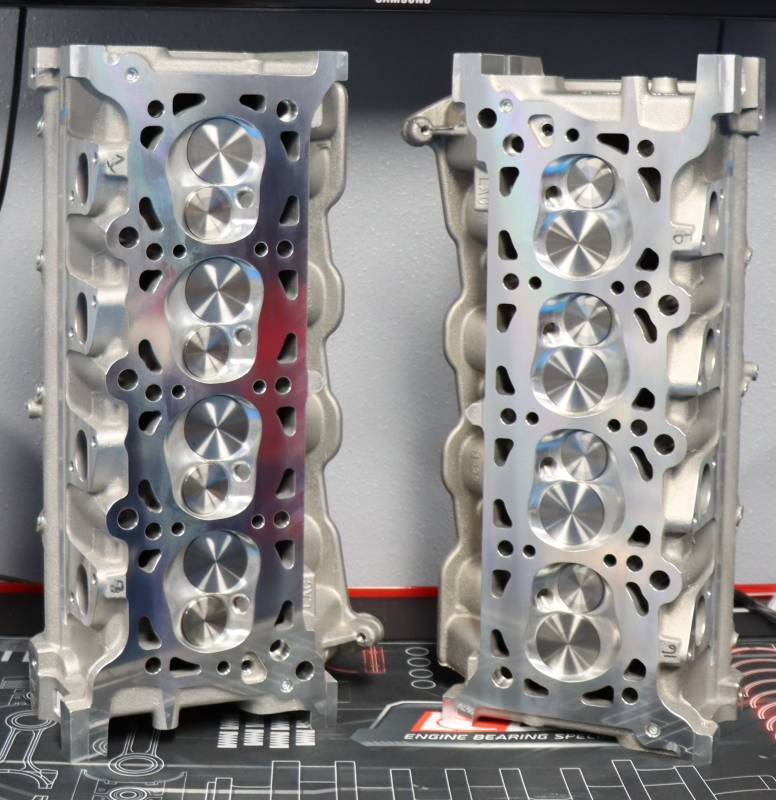

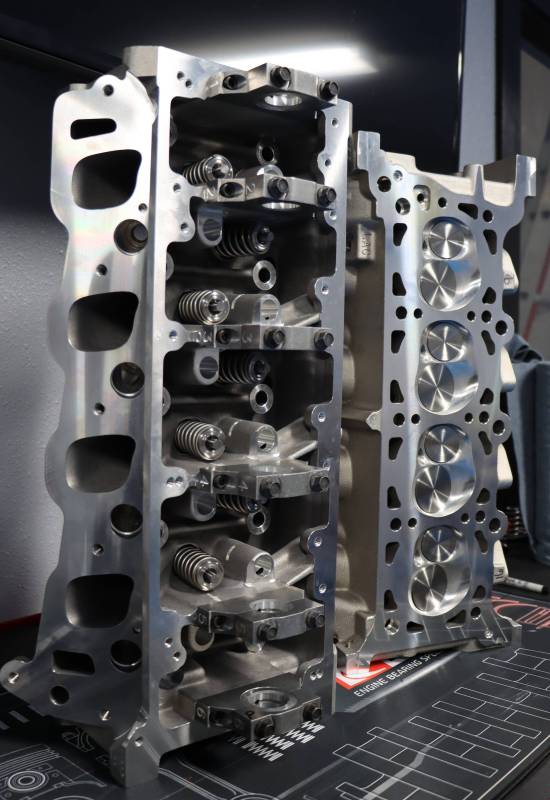

Ready to Ship! MHS Assembled Trick Flow Twisted Wedge 185cc / 44cc Cylinder Heads

  • TFS 185cc Castings w/ 44cc Chambers
  • MHS Spec Manley Race Master Stainless Steel Valves
    • ​1.840" Intake
    • 1.450" Exhaust
  • ​MHS / PAC RPM Series Beehive Valve Springs
    • ​​130-132lbs Seat Pressure
    • .060-.070" Coil Bind Clearance at .583" Lift
  • ​MHS 6AL-4V Titanium Retainers
  • Manley Billet Steel Radial Groove Valve Locks
  • All Valves Lapped in and Intake Valves Back-Cut
  • Surfaced, Blueprinted and Assembly - Ready to Bolt on.

These heads can also be configured with your choice of MHS Camshafts, Sprockets, Spacers, Washers, Camshaft Bolts, Ford GT Followers and Lash Adjusters. This option will add approx. 4 weeks until they will be ready to ship. Cost is $1600.00
