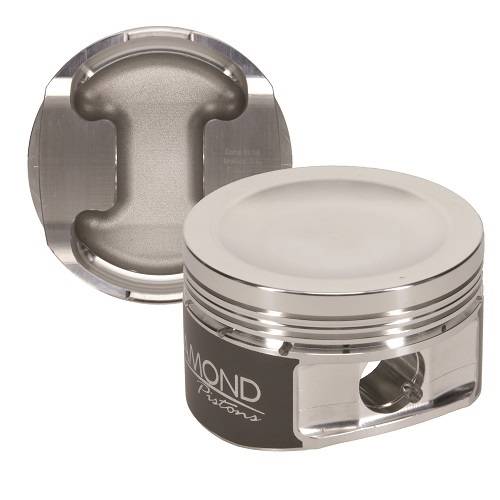

Diamond 30433-R1 Ford 5.4L 3V Competition Series Piston / Ring Kit -12cc Dish, 3.552" Bore - Upgraded H-13 Tool Steel Pins

Limited Supply: only 1 remaining
Was: $1,137.99
Sale: $1,081.09
Save: 5%
Save: $56.90
Free Shipping!



Part Number  30433-R1
Application Ford Modular 5.4L 3V
Bore  3.552"
Stroke  4.165"
Rod Length  6.657"
Compression Height  1.330"
Piston Volume -12cc
Ring Land Spacing  .280" x .180" x .080"
Included Wrist Pin Trend H8662500200C
Wrist Pin Material  H-13 Tool Steel
Wrist Pin Dimension  .866" x 2.500" x .200" Wall - 132g
Compression Ratio 10.5:1
Ring Stack  1.2mm x 1.5mm x 3mm
Included Piston Ring Set  09403552
Included Piston Ring Details  Gas Nitrided Steel Top, Napier 2nd, 3 Piece Oil

The Diamond 5.4L Competition Series Pistons have a 1.330" Compression Height, which brings the Piston Crown right up to the top of the deck, just like the 4.6L. This is the correct way to enhance combustion efficiency as the OEM 5.4L pistons sit .120" down in the cylinder. These Pistons are supplied with Diamond's Moly Skirt Coating, H-13 Tool Steel Wrist Pins and a Steel Top, Napier 2nd Ring Set. We suggest the H-13 Tool Steel Wrist Pins around the 900+ HP mark.

These Pistons include 3V valve reliefs.



Compression Ratios

Compression Ratios Calculated with a 3.620" x .036" Head Gasket and .010" Deck Clearance

  2V TFS 38cc   2V PI 42cc   2V TFS 44cc   3V 51cc  4V 52cc
 5.4L  -11.5cc Dish  12.8:1  12.0:1  11.7:1   10.6:1 10.5:1
