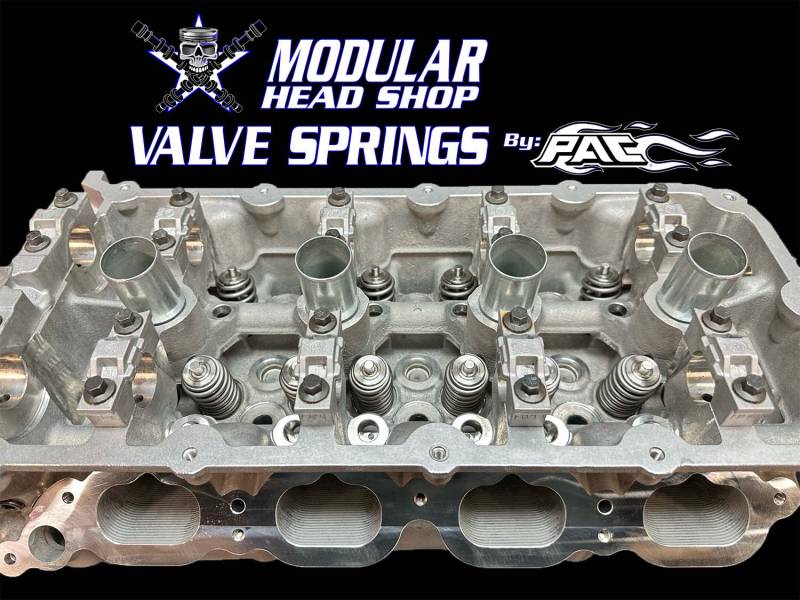

MHS / PAC RPM Series Competition Valve Spring / Retainer Kit for GEN 3 5.0L, 5.2L Voodoo and Predator Cylinder Heads

MHS-702624-32
Designed for High RPM, High Boost applications. Includes 6AL-4V Titanium Retainers.
Pricing: $1,049.00
Qty:
Free Shipping!

Description

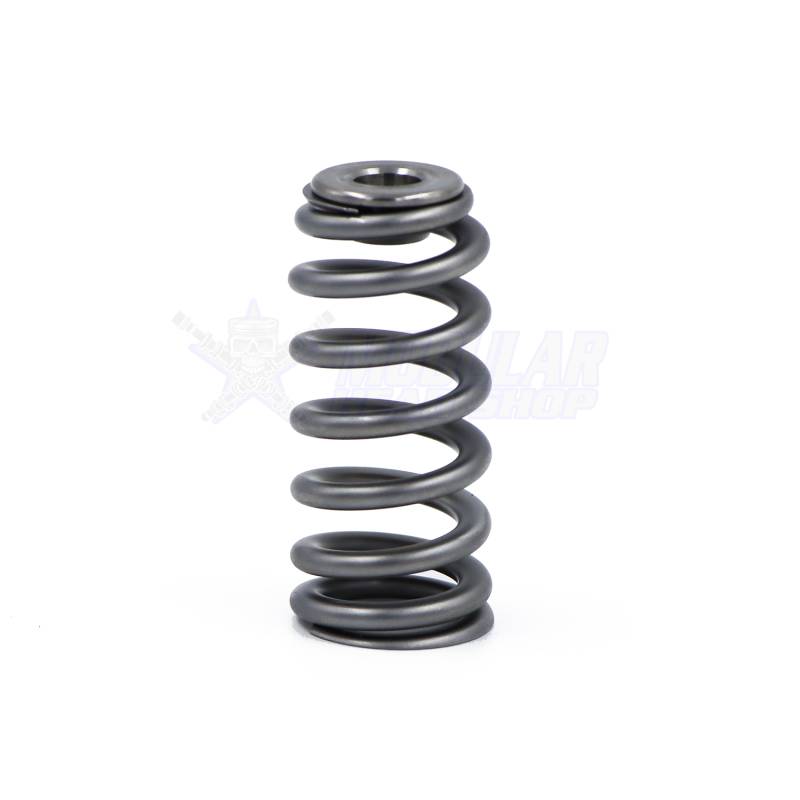

MHS / PAC RPM Series Competition GEN 3 Coyote / 5.2L GT350 Voodoo Valve Springs

You asked for it, we listened! Here is the MHS / PAC RPM Series Competition Valve Spring Kit for the GEN 3 Coyote and 5.2L Voodoo / Predator Cylinder Heads. These Valve Springs are 100% Made in the USA and are the finest quality Valve Springs available for the GEN 3 / GT350 Engines.

This Valve Spring Kit is designed specifically for High RPM, Competition Builds where shift points will be upwards of 9K RPM and boost pressures will be upwards of 35lbs. Will support 10K RPM and 50lbs +.

  • Includes MHS 6AL-4V Titanium Retainers
  • Fits Stock Valve Seals - Drop in design
  • 117lbs Seat Pressure @ 1.800" Installed Height
  • 285lbs/in Spring Rate
  • .650" Lift Capable
*Stock sized secondary chains, regardless of brand, will not last with the increase in spring rate and nose pressure. You MUST run an aftermarket big chain secondary drive or you will have a secondary chain failure at some point.

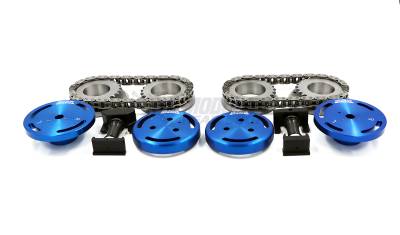

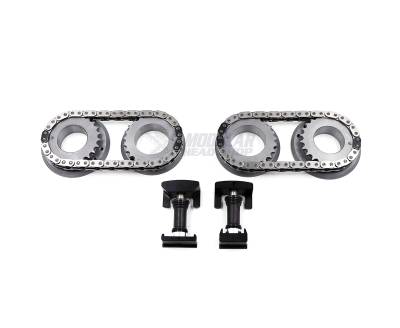

We highly recommend using RGR Secondary Chain, Sprocket and Tensioner Kit with these springs.


Please see Spring Spec Chart for complete pressures and details.

Spring Specs

*These Valve Springs are designed for High HP, High RPM Competition Builds. You must run an aftermarket big chain secondary kit with these springs due to the increased spring rate and nose pressure.

Part Number  MHS-702624-32
Application GEN 3 5.0L Coyote, 5.2L Voodoo / Predator
Seat Pressure   117lbs @ 1.800" Installed Height
Open Pressure   288lbs @ 1.200" - .600" Lift
 309lbs @ 1.150" - .650" Lift
Spring Rate   285 lbs / in
Coil Bind   1.105"
Max Recommended Lift   .650"
Spring ID Top   .538"
Spring ID Bottom   .710"
Spring Weight (g)   53.8g - Stock is 55.8g
Features   PAC RPM Processing, ID / OD Chamfer
Included Titanium Retainers   6AL-4V Titanium - 4.4g
