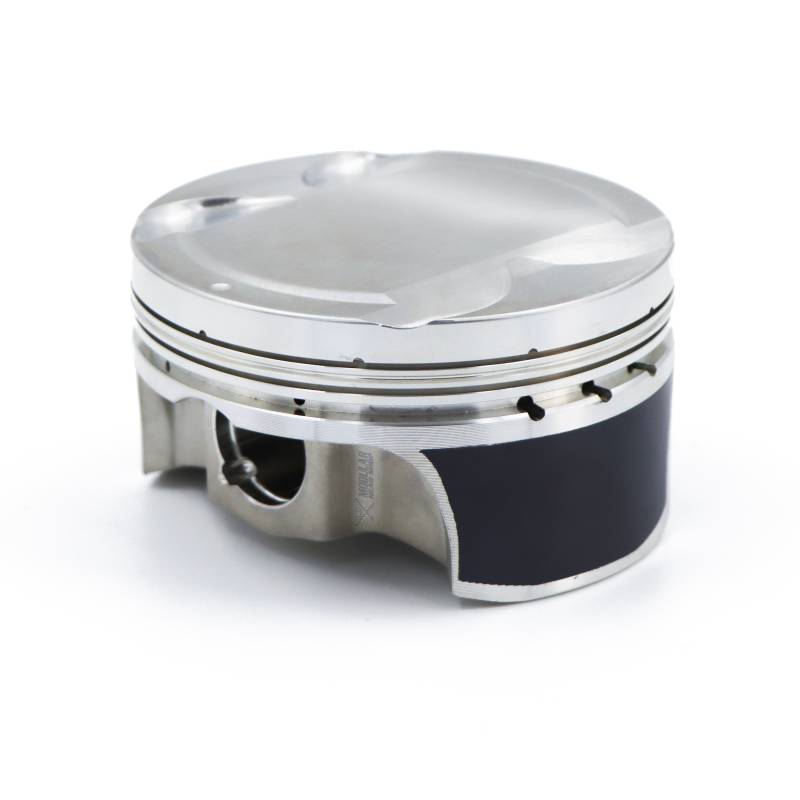

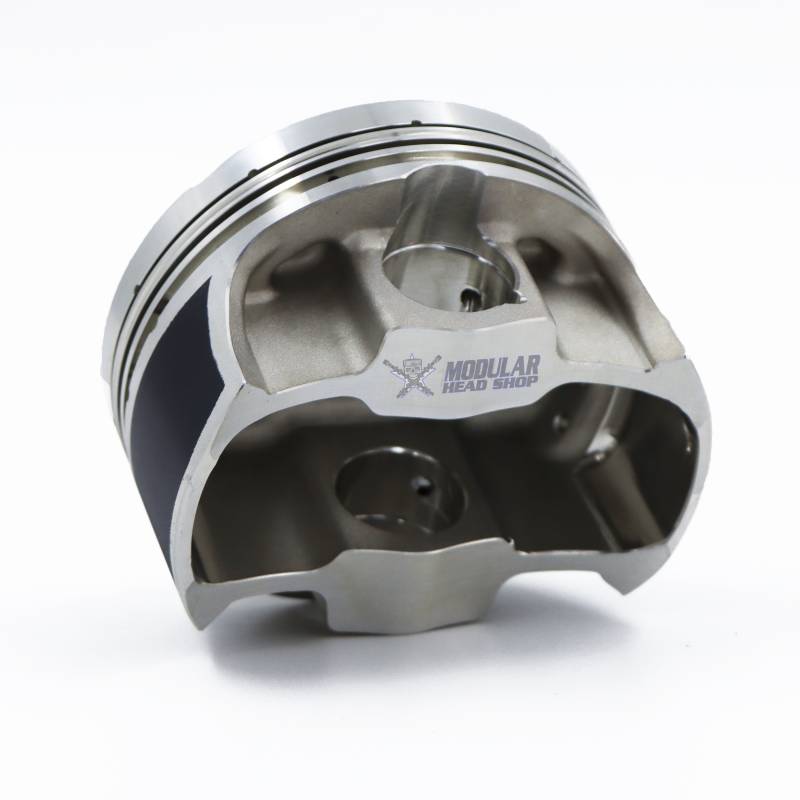

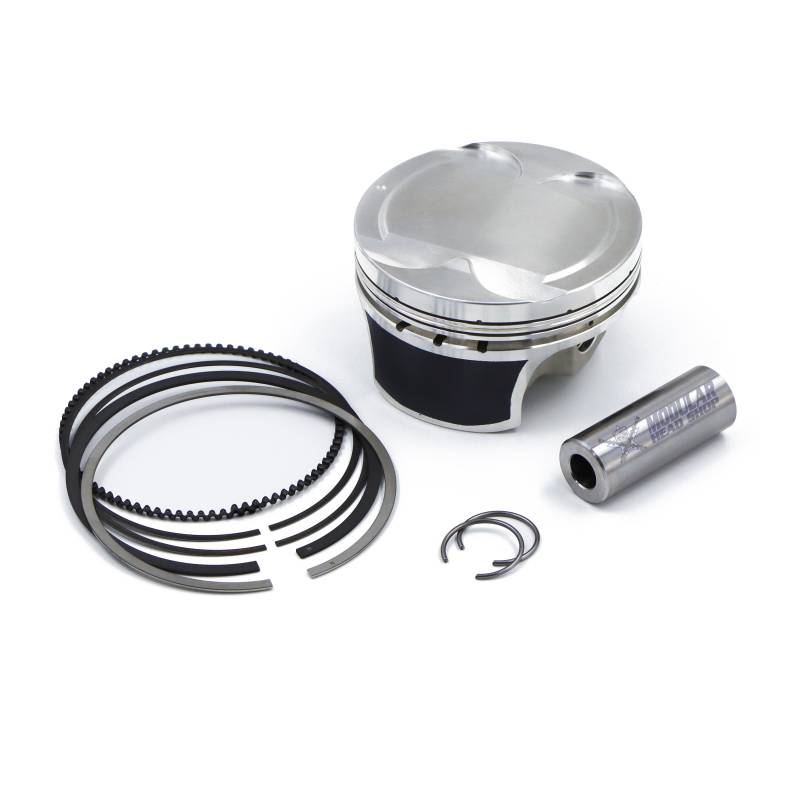

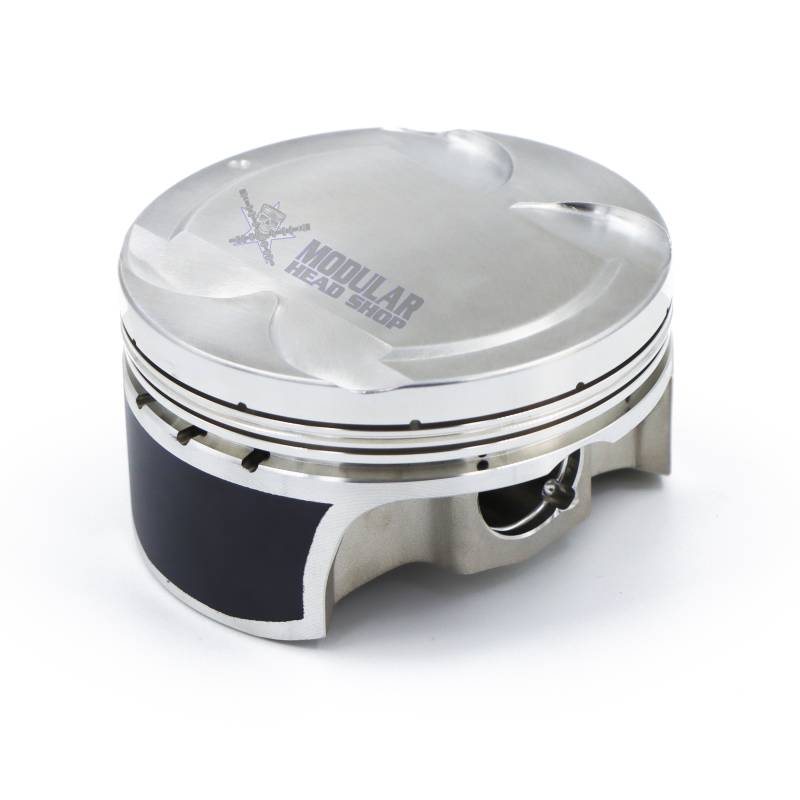

MHS / Wiseco Gen 3 5.0L Coyote Street / Strip Piston and Ring Kit- 3.662" Bore, +2cc Dome, 11:1 CR

MHS-305031
Includes Lateral Gas Ports, Moly Skirt Coating, .200" Wall Tool Steel Pins, Wiseco Steel Top / Napier 2nd Ring Set
Pricing: $1,349.00
Qty:
Free Shipping!

Description



Compression Ratio: 11.0:1

MHS / Wiseco GEN 3 Coyote Street / Strip Piston and Ring Kit. These Pistons are designed for GEN 3 Coyote Engine Blocks with the Factory Bore. These can also be used in sleeved blocks with the factory bore size. 1400+ WHP capable, but we highly suggest no more than 1200 WHP on the factory block without upgraded sleeves.

  • 3.662" Bore - Factory GEN 3 Bore
  • +2.0cc Dome / 11.0:1 Compression
  • In-Board / Strutted 2618 Alloy Forging
  • .300" Down Top Ring
  • Lateral Gas Porting for better Top Ring Seal
  • Moly Skirt Coating
  • Dual Forced Pin Oilers
  • 2.250" x .200" Wall Tool Steel Wrist Pins
  • Wiseco XX Ring Set - Steel Top, Napier 2nd
Part Number  MHS-305031
Application Ford 5.0L GEN 3 Coyote
Bore  3.662"
Stroke  3.650"
Rod Length  5.933"
Compression Height  1.176"
Piston Volume +2.0cc
Piston Skirt Design  Strutted Forging
Piston Material  2618 Aluminum Alloy
Piston Average Weight  405g
Compression Ratio 11.0:1 with Factory G3 Cylinder Heads (57cc)
Included Wrist Pin Wiseco S796
Wrist Pin Material  52100 Tool Steel
Wrist Pin Dimension  .866" x 2.250" x .200" Wall - 121.5g
Lock Style  Round Wire
Replacement Lock PN  W5590
Ring Stack  1.0mm x 1.2mm x 2.8mm
Included Piston Ring Set  Wiseco 9300XX
Piston Ring Details  Gas Nitrided Steel Top, Cast Iron Napier 2nd, 3 Piece Oil
Piston Assembly Reciprocating Weight   552g - Pistons, Pins, Clips and Rings
