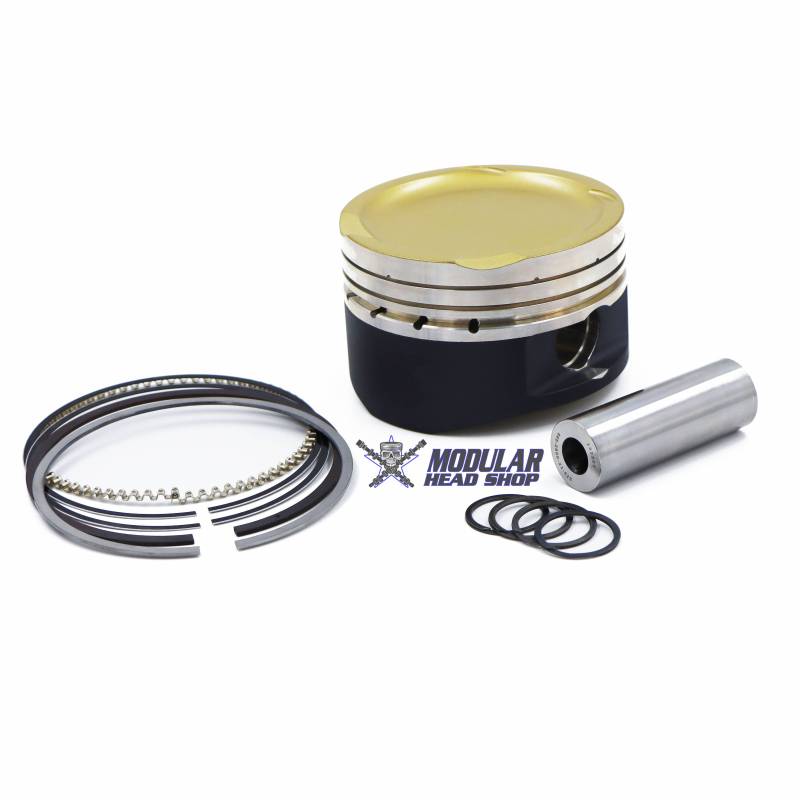

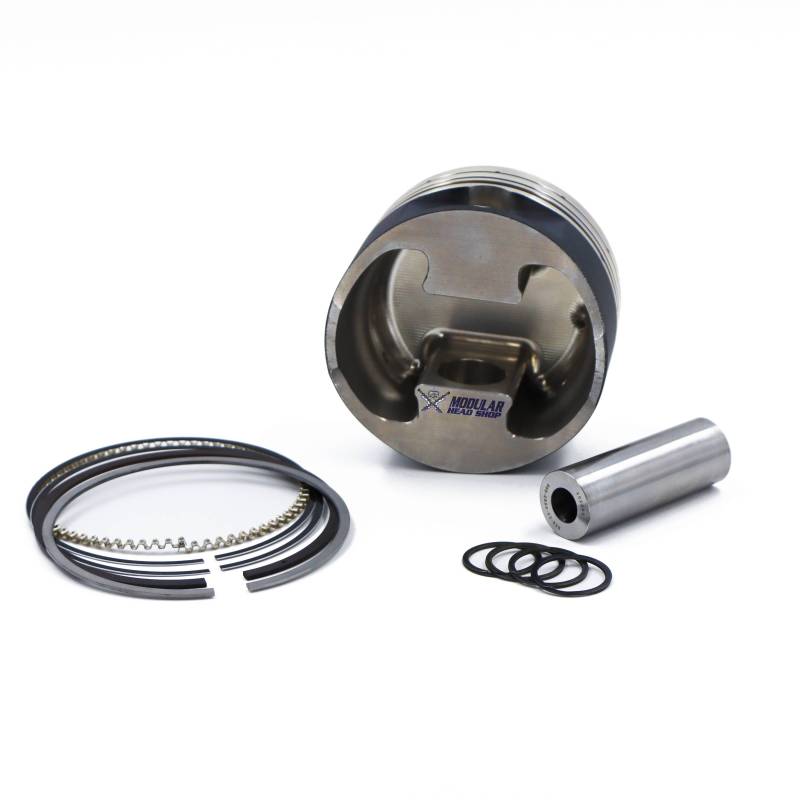

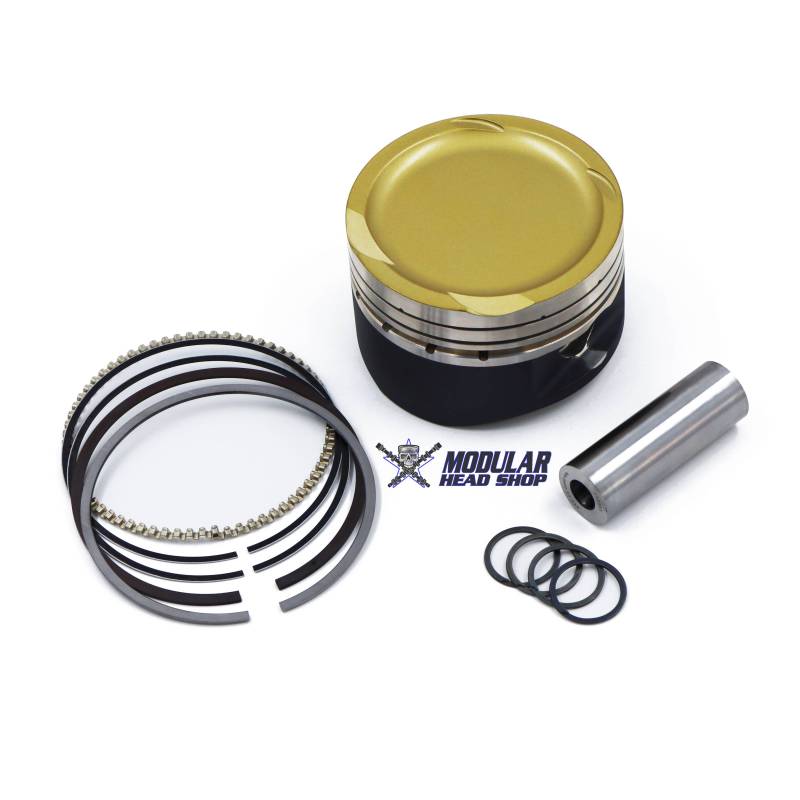

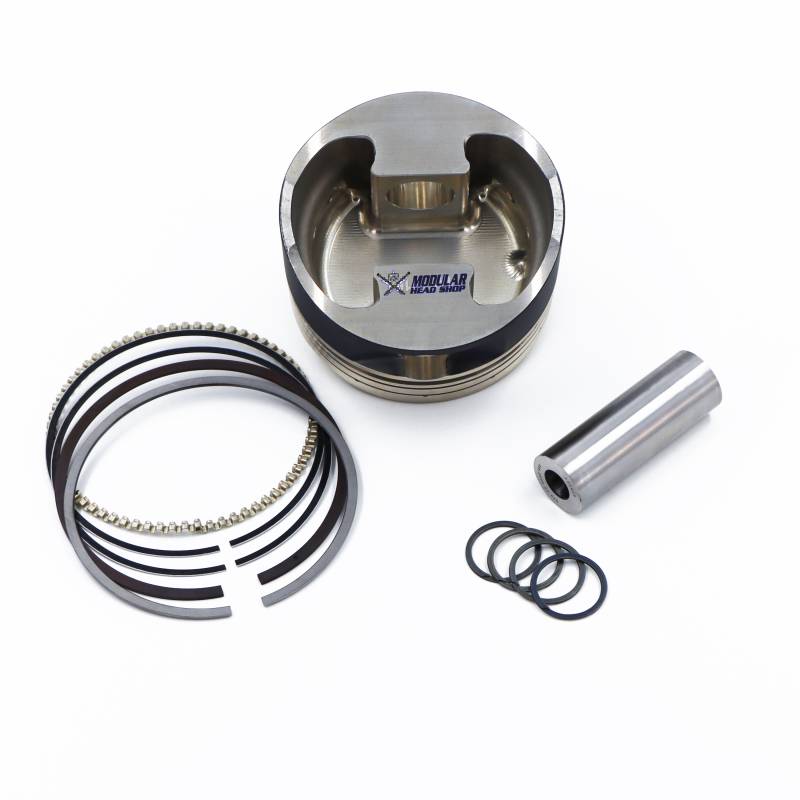

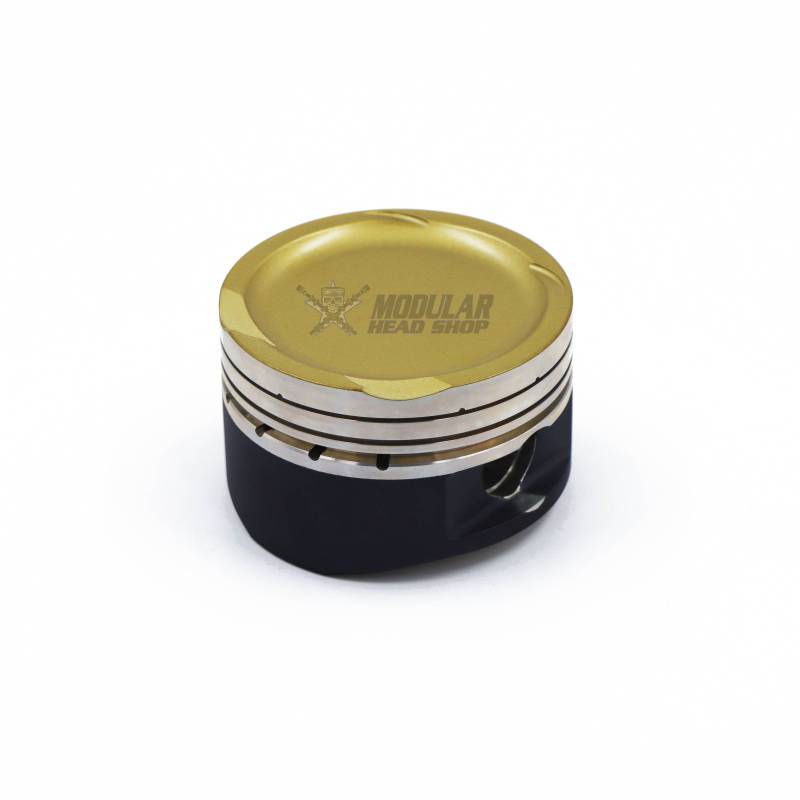

MHS / Wiseco 5.4L 4V GT500 Competition Piston and Ring Kit -16cc Dish, 3.572" Bore, 10.0:1 CR

MHS-305441
Includes Lateral Gas Ports, Ceramic Dome and Moly Skirt Coating, .230" Tool Steel Wrist Pins, Custom Total Seal AP Steel, Napier 2nd Ring Set
Pricing: $1,799.00
Qty:
Free Shipping!

Description



Compression Ratio: 52cc = 10.0:1

The all new MHS / Wiseco Competition Piston and Ring Kit for the 5.4L 4V. This piston kit is designed for the 5.4L GT500 guys trying to max out the Iron Block. These pistons are designed for big boost and have all the extras to handle it.

  • 3.572" Bore - .020" Over
  • -16cc Dish / 10.0:1 Compression
  • Full Round 2618 Competition Forging
  • .300" Down Top Ring with Max Ring Land Spacing
  • Lateral Gas Porting for better Top Ring Seal
  • Ceramic Dome Thermal Barrier Coating
  • Spray on Moly Skirt Coating
  • 3D Internal Skirt and Undercrown Mill for Lightening
  • Double Broached Pin Oilers
  • 2.500" x .230" Wall Tool Steel Wrist Pins
  • Custom Total Seal AP Steel 1.2mm x 1.5mm x 3mm Ring Set with Napier 2nd Rings





Part Number  MHS-305441
Application Ford 5.4L 4V / GT500 / Ford GT
Bore  3.572"
Stroke  4.165"
Rod Length  6.657"
Compression Height  1.328"
Piston Volume -16cc
Piston Skirt Design  Full Round
Piston Material  2618 Aluminum Alloy
Piston Average Weight  409g
Compression Ratio 10:1 w/ 52cc Chambers, 9.7:1 with 54cc Chambers
Included Wrist Pin JE 866-2500-23-52S
Wrist Pin Material  52100 Tool Steel
Wrist Pin Dimension  .866" x 2.500" x .230" Wall - 146g
Lock Style  Double Spiral Locks
Replacement Lock PN  JE 866-042-CS
Ring Stack  1.2mm x 1.5mm x 3mm
Included Piston Ring Set  Custom Total Seal AP Steel
Piston Ring Details  AP Steel C33 Top, Cast Iron Napier 2nd, 3 Piece Oil
Piston Assembly Reciprocating Weight   585g - Pistons, Pins, Clips and Rings
