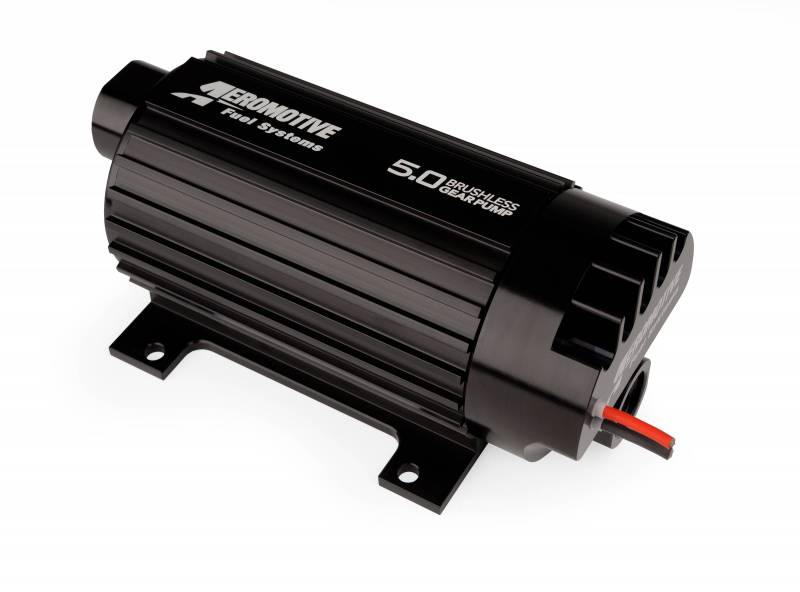

Aeromotive 5.0 GPM Brushless Spur Gear External Fuel Pump w/ Variable Speed Control

AER-11196
External, in-line fuel pump
Pricing: $1,610.92
Qty:
Free Shipping!

Description

Aeromotive 5.0 GPM Brushless Spur Gear External Fuel Pump w/ Variable Speed Control

  • Brushless design for longer life
  • E85 compatible (reduces HP limit by 30%)
  • Capable of supporting 1000s of HP
  • ORB -12 inlet and ORB -10 outlet
  • Up to 150 PSI peak pressure, base plus boost
  • Requires straight 12-VDC to 16-VDC power supply
  • Not compatible with speed controllers



Fuel Injected Engines:
– up to 3,400 FWHP on GAS – naturally aspirated
– up to 2,600 FWHP on GAS – forced air induction

– up to 2,380 FWHP on E85 – naturally aspirated
– up to 1,820 FWHP on E85 – forced air induction

– up to 1,190 FWHP on METHANOL – naturally aspirated
– up to 910 FWHP on METHANOL – forced air induction

Carbureted Engines:
– up to 3,600 FWHP on GAS – naturally aspirated
– up to 2,700 FWHP on GAS – forced air induction

– up to 2,520 FWHP on E85 – naturally aspirated
– up to 1,890 FWHP on E85 – forced air induction

– up to 1,260 FWHP on METHANOL – naturally aspirated
– up to 945 FWHP on METHANOL – forced air induction



Details

  • AER-11196
  • AER-11196
  • Aeromotive
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 7.0 lbs.
  • W5.0000” x H6.0000” x L10.0000”
  • Free Shipping!
