Division X- The Box Dual or Triple Pump Staged Fuel Pump Controller

DX-11821
Universal wiring harness to run 2 or 3 fuel pumps
Pricing: $269.00

Customize Your Item

- -
 * required
- -
 * required
Qty:
Free Shipping!

Description

Division X- The Box Dual or Triple Pump Staged Fuel Pump Controller

  • Universal wiring harness to run up to 3 pumps in a return style fuel system
  • Pump can be run all at once or can be stage using a Hobbs (pressure) switch
  • Plug and play style
  • Relays are rated at 50amp
  • 30amp replaceable fuses (x3)
  • 4 gauge main power wire
  • Status LEDs allow you to see which pumps are being powered
  • OEM 6 plug connector for plug and play installation for Division X pumps
  • Individual fuel pump output for each relay
  • Hobbs switch is not included but can be added via options above



What's included?

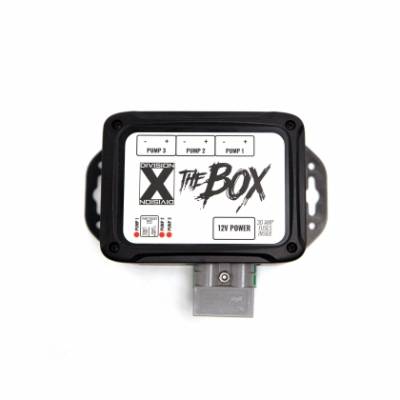

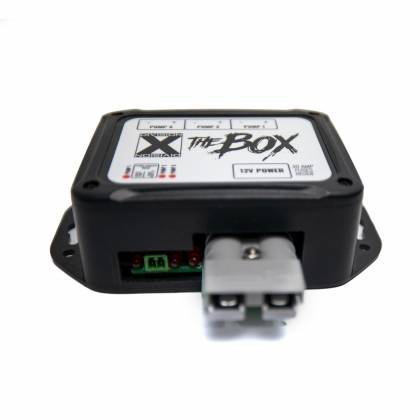

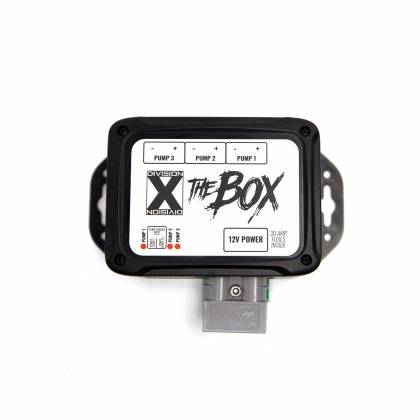

  • Division X The Box Fuel Pump Controller

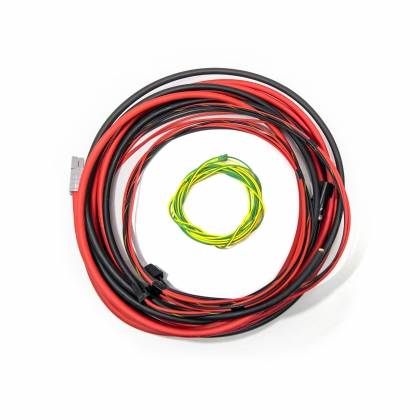

  • 15ft 4 AWG Power / Ground Wire
  • 4 AWG Ring Terminals
  • 7ft 12 AWG for 3 Fuel Pumps with Plug and Play Connector
  • In-Line Fuse Holder with 80amp Fuse (Main Power to Controller)
  • 15ft Wiring Harness for Pump Trigger / Hobbs / Pressure Switch





Details

  • DX-11821
  • DX-11821
  • DivisionX
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
  • W10.0000” x H10.0000” x L6.0000”
  • Free Shipping!
