Return Style Fuel System Wiring Harness for Dual Pump Division X Hats

Return Style Fuel System Wiring Harness for Dual Pump Division X Hats

• To be used with Division X Gen3 Dual Pump Hat
• Controls up to 2 pumps
• 90% plug and play
• Uses OEM Ford connectors where applicable
• Featured 12gauge power and ground wires
• Dual 40amp waterproof relays individually fused

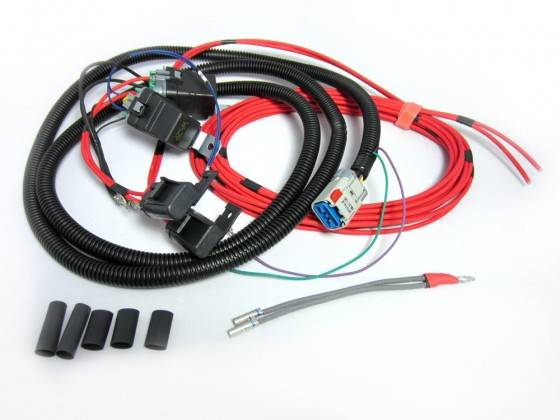

From Lethal Performance is the Dual Pump Return Style Fuel system wiring harness. It uses dual 10ga feeds from the battery with a fusible link, Dual 40amp waterproof relays individually fused with waterproof fuses, 12ga power and ground wires along with an OEM 6 pin connector making this virtually a plug and play kit for any of the NEW Gen 3 DivisionX hats. Where wire splicing is required, heat shrink is included to finish the job. Made specifically for Lethal Performance, by an industry leader to Lethal Performance specs. Works with any dual pump return style fuel system.

Link to installation guide: Click Here

Installation Video on YouTube: Click Here
