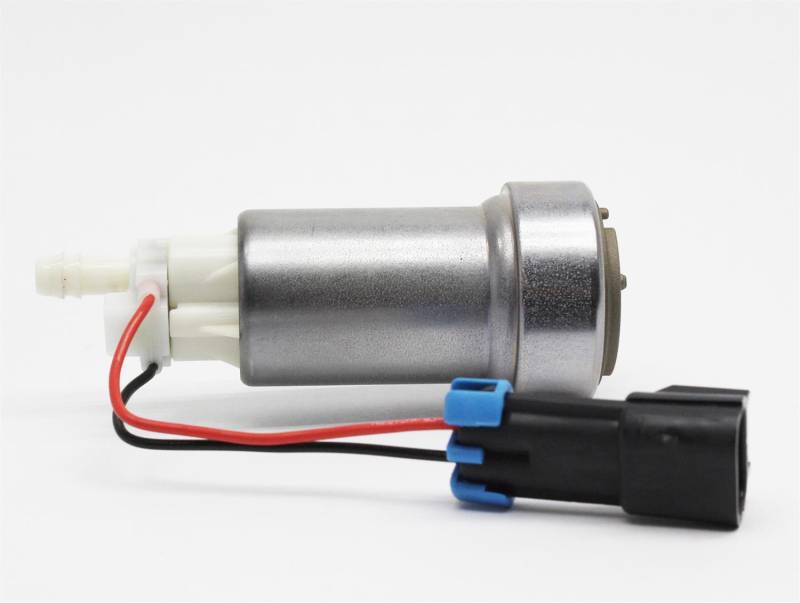

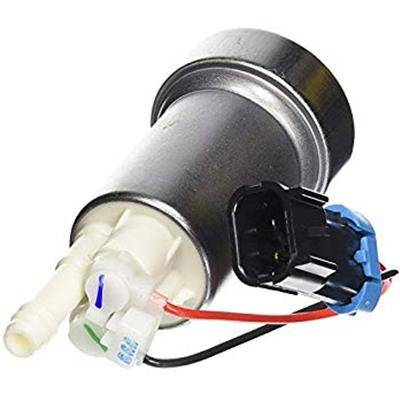

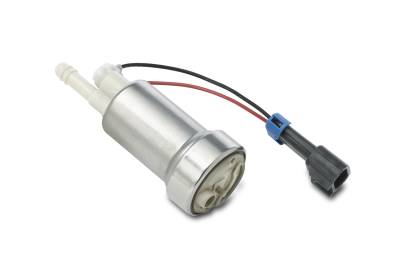

Walbro 525LPH "Hellcat" Fuel Pump - E85 Compatible

Walbro 525lph "Hellcat" Fuel Pump - E85 Compatible

This is a Universal Style Fuel Pump that will not work with Factory Fuel Pump Housings. It is designed for a custom installation with an Aftermarket style Fuel Hat such as the Division X or FORE hats.

Overall Length: 121mm / 4.76"
Main Housing Diameter: 39mm / 1.53"
Lower Housing Diameter: 50mm / 1.96"
Fuel Inlet Outside Diameter: 11mm / 0.433"
Fuel Outlet Outside Diameter: 11mm  / 0.433"
Flow Rate: 470 LPH @ 40psi
Test Voltage: 13.5 volts

Compatible with E85 Fuel
