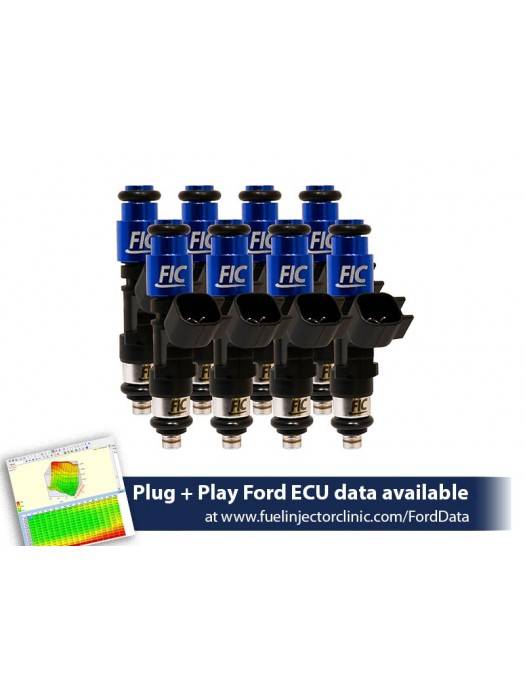

Fuel Injector Clinic IS402-2150H 2150cc / 210lb Fuel Injectors for 87-04 Mustang GT and 93-98 Cobra

FIC-IS402-2150H
Flows 210lbs / hr @ 43.5 Psi - Includes Pigtails
Pricing: $1,630.00
Qty:
Free Shipping!

Description

FIC 2150cc Fuel Injectors for 87 - 04 Ford Mustang GT and 93 - 98 Cobra. 210lbs / hr @ 43.5 Psi

  • FIC's Data Matched high performance fuel injectors featuring high impedance Bosch core, E85 compatible, with a lifetime warranty.

  • This massive high performance injector is in a class of its own when low end throttle response and short pulse width control is required. State of the art Data Match Technology dynamic flow matching is used during the production of these injector sets due their large flow rate. This significantly improves the ECU's ability to control these injectors in the sub 2ms pulse width area, typical of idle and part throttle conditions. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

  • Fuel Injector Clinic's high performance fuel injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set

  • Fuel Injector Clinic's high performance fuel injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.

  • Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.

  • CAUTION! The internal construction of this 2150cc/min injector includes a seal that has been found to swell when in contact with MTBE from oxygenated fuels like Q16 or VP Import. This swelling causes a significant reduction in flow through the injector and therefore renders it unsuitable for use with MTBE oxygenated fuels. Please be sure to follow the care instructions for these injectors since there are potential corrosion issues that may arise from prolonged disuse while exposed to alcohol based fuels (E85, etc.)

  • Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. For aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

  • Every injector is covered against failure caused by defects in original manufacture by FIC's lifetime warranty.

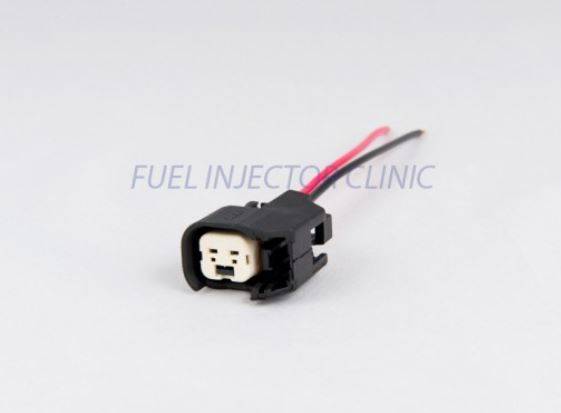

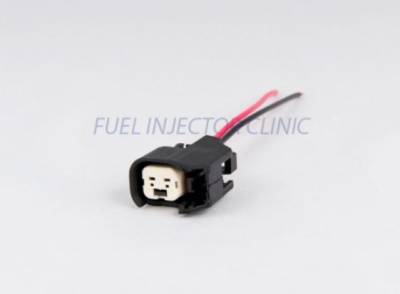

    This set of injectors requires you to change the injector plug on the wiring harness in your car if your ECU and / or Wiring Harness is original. This set of injectors includes pigtails with the proper Fuel Injector plug that can simply be soldered into your existing wiring harness. If you prefer something plug and play, then select the PnP option on the drop down menu. The PnP option adapts the earlier Jetronic / Minitimer plug to the newer style Denso Injector Plug specific to the 2150 and requires no soldering.

    See Specifications Tab for additional details

    See Injector Data Tab for Data Sheet Download. Includes files for both SCT and HP Tuners

Specifications

Specifications

Part Number   IS402-2150H
Quantity   Set of 8
Fitment   Ford 87-04 GT / 93-98 Cobra
Injector Size   2150cc
Flow Rating   210lbs/hr @ 43.5 Psi
Impedence   High-Z
Plug Style   USCAR

 Horsepower Ratings

WHP on Gas N/A @ 43 Psi 90% Duty Cycle  2506 HP
WHP on Gas Supercharged @ 43 Psi 90% Duty Cyle  2278 HP
WHP on Gas Turbocharged @ 43 Psi 90% Duty Cyle 2088 HP

WHP on Gas N/A @ 58 Psi 90% Duty Cycle  2893 HP
WHP on Gas Supercharged @ 58 Psi 90% Duty Cycle  2631 HP
WHP on Gas Turbocharged @ 58 Psi 90% Duty Cycle  2412 HP

WHP on E85 N/A @ 43 Psi 90% Duty Cycle  1928 HP
WHP on E85 Supercharged @ 43 Psi 90% Duty Cycle  1752 HP
WHP on E85 Turbocharged @ 43 Psi 90% Duty Cycle  1606 HP

WHP on E85 N/A @ 58Psi 90% Duty Cycle  2226 HP
WHP on E85 Supercharged @ 58 Psi 90% Duty Cycle  2024 HP
WHP on E85 Turbocharged @ 58 Psi 90% Duty Cycle  1855 HP
