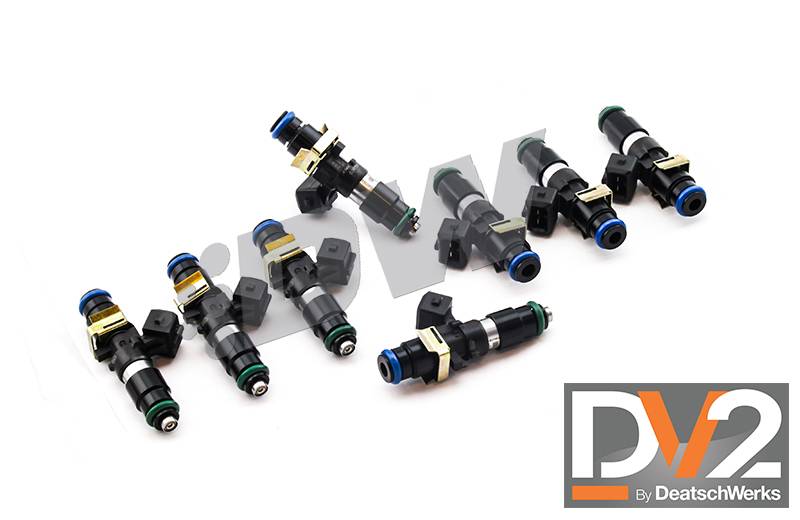

DeatschWerks 1200cc Fuel Injectors - Set of 8
DW-16MX-20-1200-8
Pricing:
$1,049.00
Description
DeatschWerks 1200cc Fuel Injectors - Set of 8
- Fits all Mustangs 1996 - 2004 except GT500
- E85 compatibility
- Flow rates and set balancing in-house by DeatschWerks
- Flow balanced to within 1-2% (flow report included)
- Excellent spray pattern and atomization for optimized idle and tuning
- Technical assistance and tuning data available via phone or email
- 3-year comprehensive warranty
- Minitimer Connector
1999 - 2004 Cobra / Mach 1 and 2005+ will need to use a USCAR to Jetronic / Minitimer Adapter
The DV2 advantage…
- Bosch EV14 technology-widely regarded as the gold standard in EFI.
- Flow rate in excess of 1,000cc/min at 3bar using SAE testing standards.
- Flow matched with our exclusive multi-point dynamic flow testing.
- Stainless Steel internals for compatibility with race fuels including MTBE-oxygenated fuels, ethanol blended fuels (including e85) and methanol blended fuels.
Specifications
| Fuel Pressure Range | 40 - 80 psi |
| Minimum Pulse Width | 1.4ms |
| Maximum Duty Cycle | 93% |
| Coil Impedance | 12.4 ohm |
| Injector Type | Bosch EV14 (Extended Nozzle) |
| Connector Type | Minitimer |
Flow Rate
Nominal Static Flow Rate
| PSI > | 43 | 58 | 70 | 80 | 90 | 100 |
| cc/min | 1143 | 1391 | 1520 | 1632 | 1746 | 1828 |
| lb/hr | 108.8 | 132.5 | 144.7 | 155.4 | 166.3 | 174.1 |
Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order
.
Battery Offset
Offset in Milliseconds (Pressure vs Voltage)
|
PSI > VOLTS v |
43 | 58 | 70 | 80 | 90 | 100 |
| 8 | 2.333 | 2.737 | 2.949 | 3.125 | 3.370 | 3.552 |
| 9 | 2.092 | 2.402 | 2.591 | 2.740 | 2.942 | 3.094 |
| 10 | 1.866 | 2.098 | 2.266 | 2.390 | 2.555 | 2.681 |
| 11 | 1.657 | 1.826 | 1.972 | 2.076 | 2.211 | 2.314 |
| 12 | 1.463 | 1.585 | 1.710 | 1.797 | 1.909 | 1.994 |
| 13 | 1.286 | 1.375 | 1.481 | 1.554 | 1.648 | 1.720 |
| 14 | 1.126 | 1.196 | 1.284 | 1.347 | 1.430 | 1.492 |
| 15 | 0.981 | 1.048 | 1.119 | 1.176 | 1.254 | 1.310 |
| 16 | 0.853 | 0.932 | 0.986 | 1.041 | 1.120 | 1.174 |
