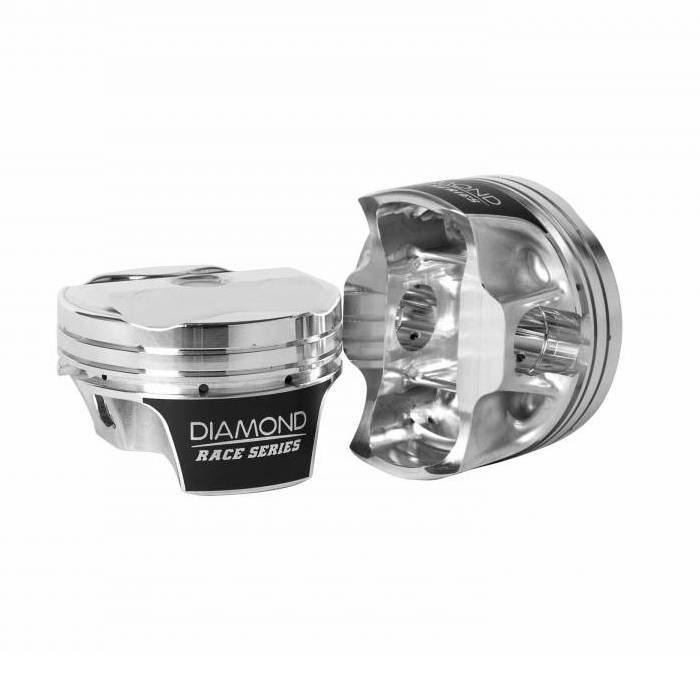

Diamond 30340-RS - Mod2k Race Series Piston / Ring Set for Ford 5.0L Coyote +1.8cc Dome, 3.630" Bore

DIA-30340-RS
Approx 10.7:1 Compression Ratio
Pricing: $1,049.00

Customize Your Item

- Add Ceramic Dome Coating? -
- Upgrade to Napier 2nd Rings -
Qty:
Free Shipping!

Description

Diamond's all new Mod2k Race Series Pistons for the Ford 5.0L Coyote Engine are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support up to 2000 HP right out of the box!

Features:

  • 2618 Alloy Strutted Forging
  • Additional Pin Boss Struts for added strength
  • .325" Down Top Ring Land
  • .100" Intake / .100" Exhaust Valve Reliefs - Trough Style
  • Lateral Gas Ports for better ring seal
  • Moly Coated Skirts
  • Trend Performance .225" Wall H-13 Wrist Pins
  • Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional

Compression Ratio: 10.7:1
Compression ratio calculated with 3.700" Bore / .040" Compressed Thickness
Head Gasket with .010" Piston to Deck Clearance

Specifications:

Part Number   30340-RS
Piston Material   2618 Aluminum Alloy
Fitment   5.0L Gen 1 and Gen 2
Piston Volume  +1.8cc Dome
Bore  3.630"
Stroke  3.650"
Rod Length  5.933"
Compression Height  1.169"
Wrist Pin Dimesions .866" x 2.250" x .225" Wall
Wrist Pin Material  H-13 Tool Steel
Included Piston Ring Set  09053630



Details

Shipping Information

  • Item Requires Shipping
  • 14.0 lbs.
  • W28.0000” x H12.0000” x L6.0000”
  • Free Shipping!
