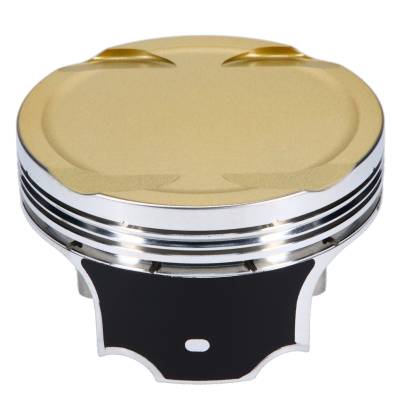

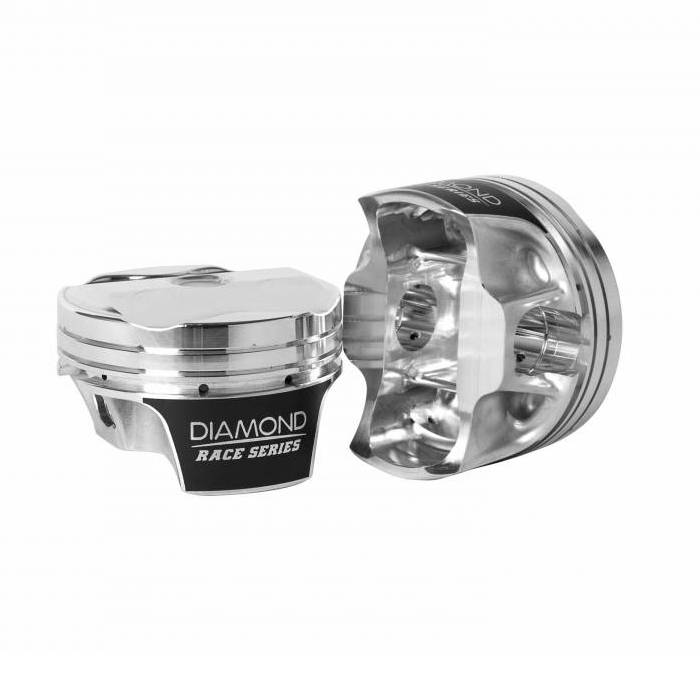

Diamond 30332-RS - Mod2k Race Series Piston / Ring Set for Ford 5.0L Coyote +8.0cc Dome, 3.630" Bore
Diamond's all new Mod2k Race Series Pistons for the Ford 5.0L Coyote Engine are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support up to 2000 HP right out of the box!
- 2618 Alloy Strutted Forging
- Additional Pin Boss Struts for added strength
- .325" Down Top Ring Land
- .100" Intake / .100" Exhaust Valve Reliefs - Trough Style
- Lateral Gas Ports for better ring seal
- Moly Coated Skirts
- Trend Performance .225" Wall H-13 Wrist Pins
- Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional
Compression Ratio: 11.7:1
Compression ratio calculated with 3.700" Bore / .040" Compressed Thickness
Head Gasket with .010" Piston to Deck Clearance
|Piston Material||2618 Aluminum Alloy|
|Fitment||5.0L Gen 1 and Gen 2|
|Piston Volume||+8.0cc Dome|
|Wrist Pin Dimesions||.866" x 2.250" x .225" Wall|
|Wrist Pin Material||H-13 Tool Steel|
|Included Piston Ring Set||09053630|
- Item Requires Shipping
- 14.0 lbs.
- W28.0000” x H12.0000” x L6.0000”
- Free Shipping!
