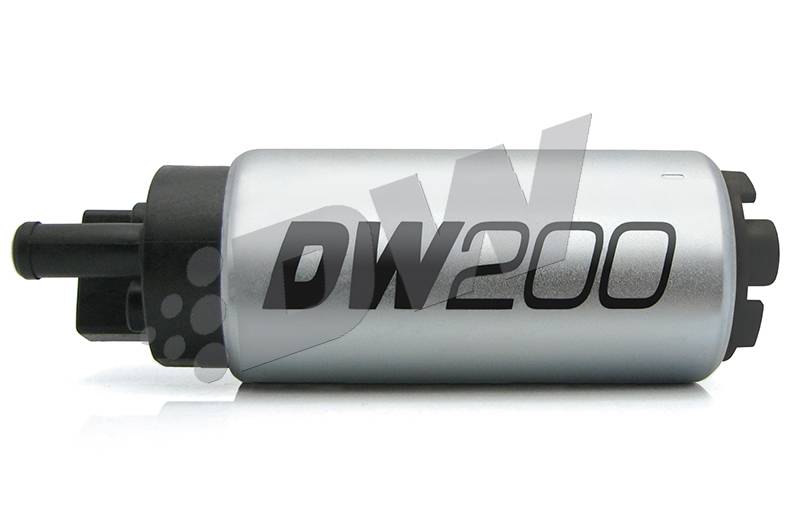

DeatschWerks 255LPH In-Tank Fuel Pump w/ Install Kit

DW-9-201-1014
Fits 1987 - 1997 Mustang GT
Pricing: $109.00
Qty:

Description

DeatschWerks 255LPH In-Tank Fuel Pump with Install Kit

  • Fits 1987 - 1997 Mustang GT
  • Flows 255 Liters Per Hour / 67 Gallons Per Hour
  • E-85 Compatible
  • 3 Year No Fault Warranty
  • Quiet and Reliable Turbine Impeller

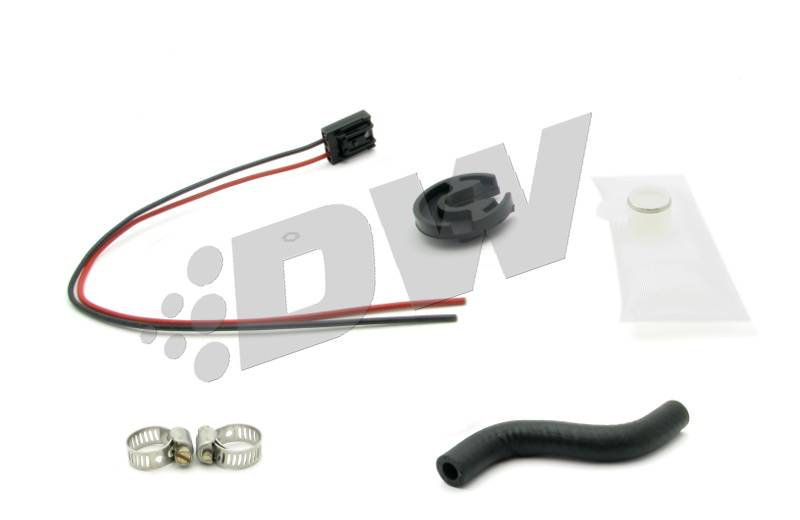

  • Installation Kit Included

Flow Data

DW200 at 13.5 volts

PSIG AMPS LPH BHP
0 7.4 355 1120
30 8.6 265 865
40 9.2 255 830
50 9.7 240 780
60 10.4 225 735
70 10.9 210 685
80 11.6 190 620
90 11.9 170 555
100 12.7 155 520

DW200 Flow Chart

Flow Data Notes:

  • Displayed data represents a 10 pump average of results collected in-house.
  • Every fuel pump is tested by DeatschWerks to be within specifications for flow, PRV activation, and amperage draw
  • BHP horsepower figures are for approximation only and can vary significantly depending on your set-up.


Mechanical Specs

DW200 Fuel Pump Tech

DW200 Fuel Pump Tech

Technical Information

The DW200 fuel pump has been specifically designed and tested for compatibility with gasoline and ethanol. DeatschWerks products are manufactured and sold for non-road vehicles used solely for competition.

Weight 12.6oz (360grams)
External Materials Electroplated steel
Inlet Fitting 7.7mm ID, 11.0mm OD
Outlet Fitting 5/16" hose clamp
PRV Activation 100psi
Impeller Design Single Scroll Composite Turbine



Electrical Specs



Connector Terminal Spade pos/neg
Min Voltage Input 6 volts
Max Voltage Input 18 volts
Current Draw (40 psi) 9 amps (13.5v)
Current Draw (80 psi) 12 amps (13.5v)


Details

  • DW-9-201-1014
  • DW-9-201-1014
  • Deatschwerks
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 3.0 lbs.
  • W2.0000” x H4.0000” x L6.0000”
