DeatschWerks 95lb Fuel Injectors - Set of 8

17U-05-0095-8
Pricing: $699.00
Qty:
Free Shipping!

Description

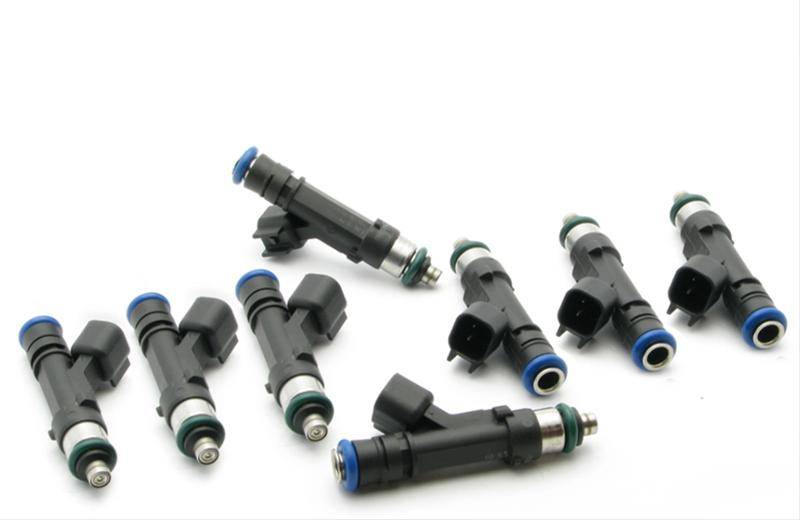

DeatschWerks 95lb/hr Fuel Injectors - Set of 8

  • Fits all Mustangs 1996 - 2004 except GT500
  • E85 compatibility
  • Flow rates and set balancing in-house by DeatschWerks
  • Flow balanced to within 1-2% (flow report included)
  • Excellent spray pattern and atomization for optimized idle and tuning
  • Technical assistance and tuning data available via phone or email
  • 3-year comprehensive warranty
  • USCAR Connector

1996 - 2004 Mustang GT and 1996 - 1998 Cobra will need to use a Jetronic / Minitimer to USCAR Adapter.

Specifications

Fuel Pressure Range   40 - 90 psi
Minimum Pulse Width   1.0 ms
Maximum Duty Cycle   93%
Coil Impedance   12.4 ohm
Injector Type   Bosch EV14 (Long)
Connector Type   USCAR



Flow Rate

Nominal Static Flow Rate

PSI > 43 58 70 80 90 100
cc/min 879 1090 1192 1295 1386 1451
lb/hr 83.7 103.8 113.5 123.3 132.0 138.2

Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order

.



Battery Offset

Offset in Milliseconds (Pressure vs Voltage)

PSI >
VOLTS v
43 58 70 80 90 100
8 2.89 2.56 2.83 3.01 3.24 3.41
9 1.96 2.22 2.43 2.59 2.79 2.94
10 1.66 1.91 2.08 2.21 2.39 2.52
11 1.40 1.64 1.77 1.88 2.05 2.16
12 1.18 1.39 1.50 1.60 1.75 1.85
13 0.99 1.19 1.27 1.37 1.50 1.60
14 0.83 1.02 1.10 1.18 1.31 1.39
15 0.72 0.88 0.96 1.04 1.16 1.24
16 0.64 0.77 0.87 0.95 1.07 1.15



Details

  • 17U-05-0095-8
  • 17U-05-0095-8
  • Deatsch Werks
  • New

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W8.0000” x H6.0000” x L6.0000”
  • Free Shipping!
