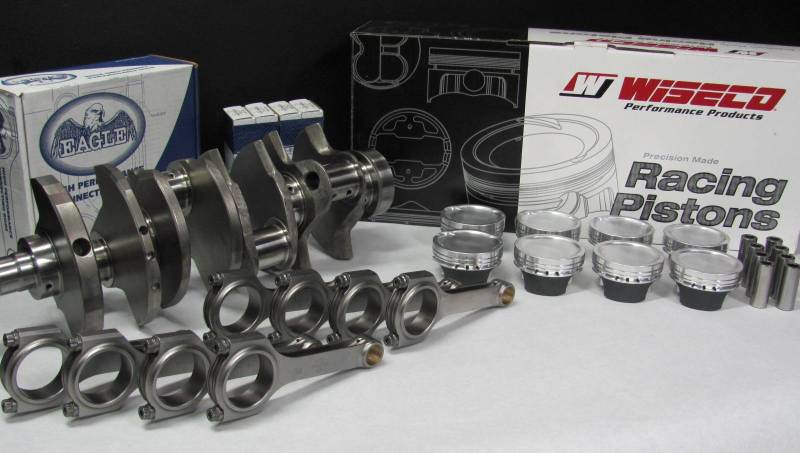

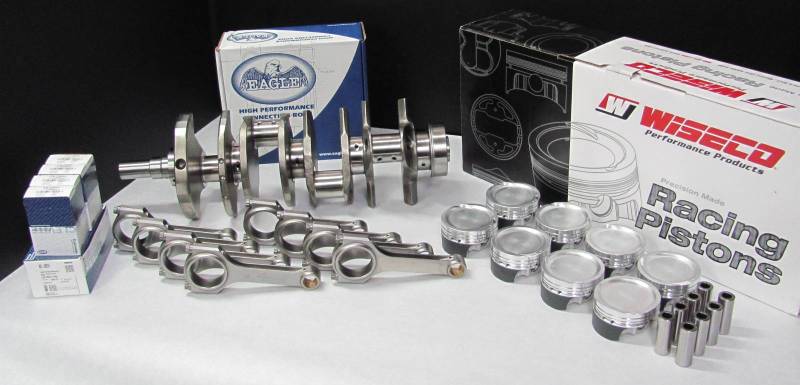

Modular Head Shop 600 HP 5.0L Stroker Rotating Assembly - Eagle Cast Steel Crankshaft, Eagle Forged 4340 H-Beam Rods and Custom Wiseco Pistons

MHS-460036
Fits 2V PI, 2V TFS, 3V or 4V Applications
Pricing: $2,249.00

Customize Your Item

- Select Block for Main Bearings -
 * required
- Select Bore -
 * required
- Select Dish -
 * required
- Select Valve Reliefs -
 * required
- Upgrade to Calico Coated Bearing -
 * required
- Balance Rotating Assembly? -
 * required
Qty:
Free Shipping!

Description

This Stroker Kit is an excellent choice for 4.6L based applications up to 600 RWHP. The crankshaft in this kit is the limiting factor as far as horsepower rating goes. While we have seen them make much more power without failure, 600 RWHP is where we feel comfortable rating this assembly. The 5.950" Rod Length is a much better design than the 5.850" Rod Length found in a lot of other stroker kits. While it does take .100" off the piston compared to the 5.850" style kit, it also keeps the piston skirt up in the bore an extra .100" which helps a ton. This is a great kit if you are looking to add some extra cubes and torque to your 4.6L. Will work very well with Nitrous, Turbo and Supercharged applications.

  • Eagle Cast Steel 8 Bolt 3.750" Stroke Crankshaft
  • Eagle Forged 4340 H-Beam Connecting Rods
    • 3/8" ARP 2000 Rod Bolts

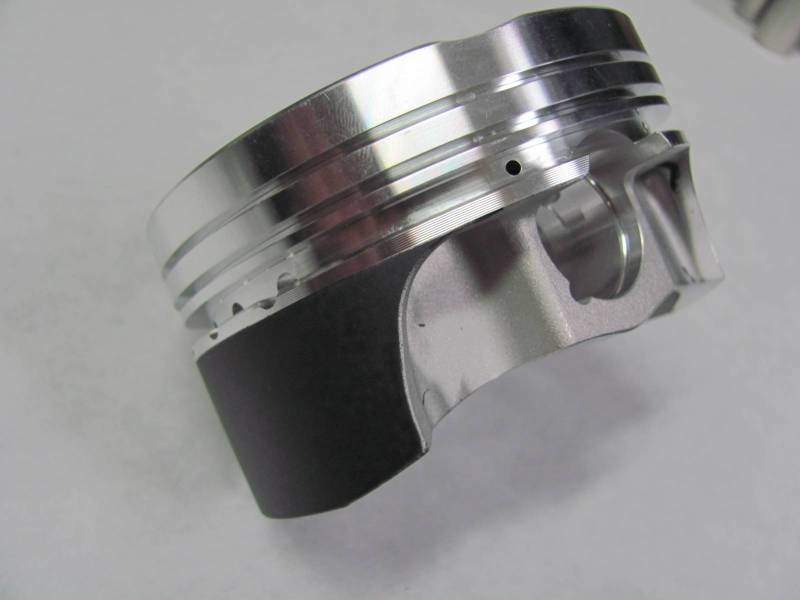

  • Custom Wiseco Forged 2618 Alloy Pistons
    • 2V PI, 2V TFS or 4V Specific Valve Reliefs
    • Wiseco's Moly Skirt Coating
    • 4130 Chrome Moly Wrist Pins with Round Wire Locks
  • Wiseco Steel Nitrided Stainless Steel Top, Napier 2nd Ring Set
    • Excellent for Boost and / or Nitrous
  • Clevite 77 H-Series Main Bearings
  • Clevite 77 H-Series Rod Bearings
Compression Ratios
   Piston Dish Volume       2V PI     2V TFS 38cc   2V TFS 44cc  3V     4V
-6cc Dish  12.0:1  12.9:1  11.5:1   10.4:1   10.3:1
-13cc Dish  10.7:1 11.4:1  10.4:1   9.5:1    9.4:1
-16cc Dish  10.3:1 10.9:1  10.0:1  9.1:1    9.0:1
-20cc Dish  9.7:1  10.2:1  9.5:1  8.7:1    8.6:1

*Internal Balancing Available
Rods and Pistons Weight Matched to +/- 0.1g
Crankshaft Balanced to 0.2g Tolerance

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 85.0 lbs.
  • W24.0000” x H24.0000” x L36.0000”
  • Free Shipping!
