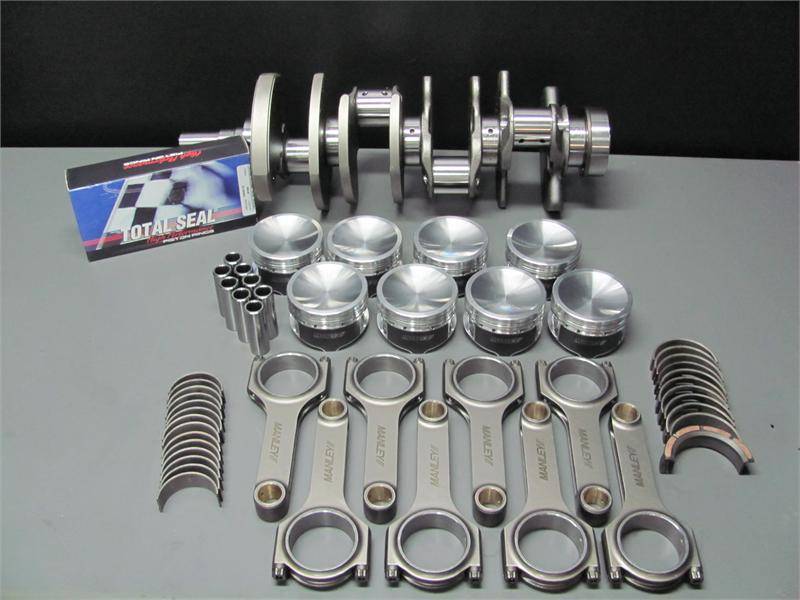

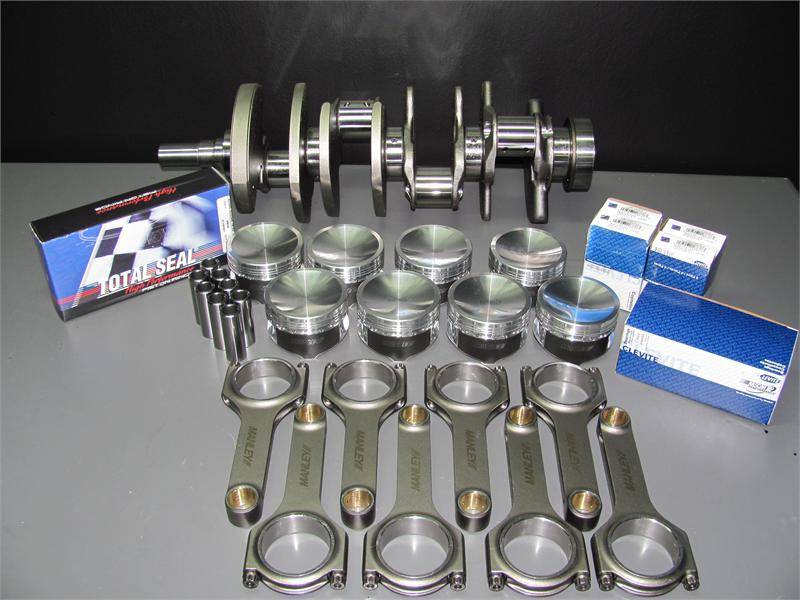

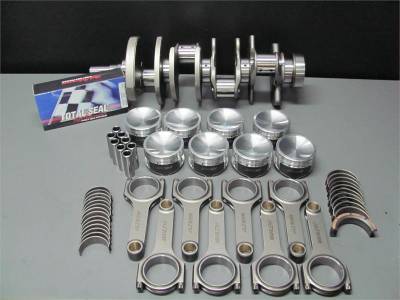

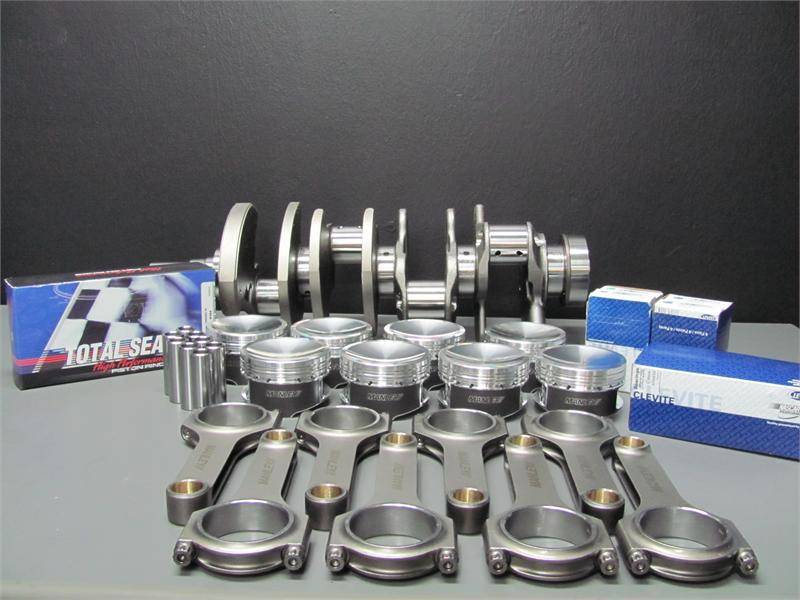

Modular Head Shop 1000 HP 4.6L 3V Rotating Assembly - Eagle Forged Crankshaft, Manley 4340 H-Beam Rods and Manley 3V Specific Pistons

MHS-460015
Includes Total Seal AP Steel Piston Rings
Pricing: $2,499.00

Customize Your Item

- Select Block for Main Bearings -
 * required
- Select Bore -
 * required
- Select Dish -
 * required
- Select Connecting Rods -
 * required
- Select Crankshaft -
 * required
- Balance Rotating Assembly? -
 * required
Qty:
Free Shipping!

Description

  • Eagle Forged 4340 8 Bolt Crankshaft
  • Manley Forged 4340 H-Beam Connecting Rods
  • Manley Platinum Series 3V Specific Pistons
    • Moly Coated Skirts
    • 4130 Chrome Moly Wrist Pins with Round Wire Locks
  • Total Seal AP Steel Piston Rings
  • King XP Series Main Bearings
  • King XP Series Rod Bearings

Compression Ratios

   Piston Dish Volume       3V Cylinder Head
-6.5cc Dish 10.1:1
-14cc Dish  9.2:1

Options
ARP 2000 Rod Bolts - Recommended for 800+ HP
Upgrade to Manley H-Tuff Rods - Recommend for 800+ HP - Includes ARP 2000 Bolts
Upgrade to 9310 Alloy Wrist Pins - Recommended for 800+ HP
Upgrade to Manley Forged Crankshaft - Recommended for Blower Applications
*Stud Manley Forged Crankshaft - Recommended for Blower Applications
*Includes 9/16" ARP Crankshaft Stud, Washer and Nut
*Only available with Balancing option

*Internal Balancing Available
Rods and Pistons Weight Matched to +/- 0.1g
Crankshaft Balanced to 0.2g Tolerance



Details

Shipping Information

  • Item Requires Shipping
  • 85.0 lbs.
  • W24.0000” x H24.0000” x L36.0000”
  • Free Shipping!
