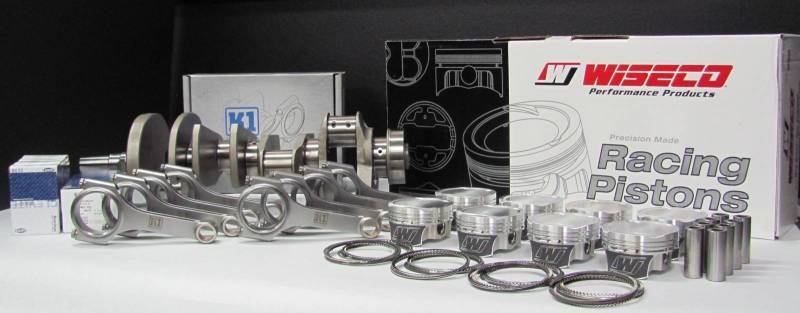

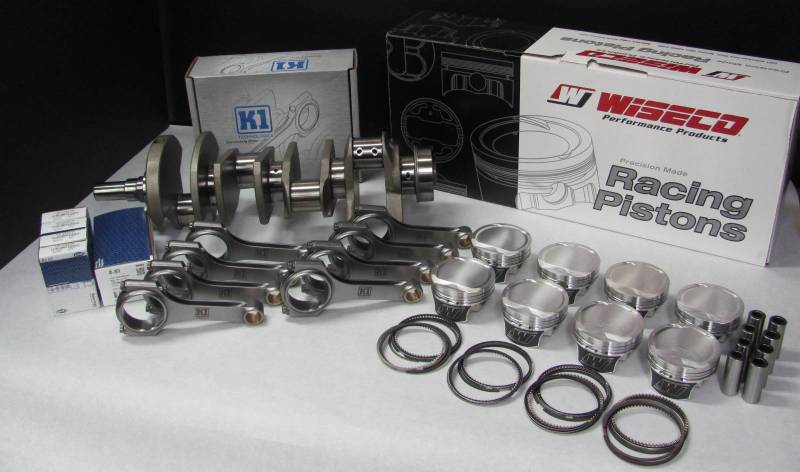

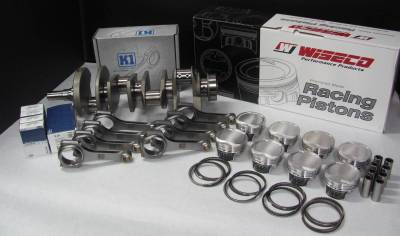

Modular Head Shop 1000 HP 4.6L Rotating Assembly - Eagle Forged 8 Bolt Crankshaft, K1 Forged 4340 H-Beam Rods and Wiseco Pistons

MHS-460035
Fits 2V PI, 2V TFS, 3V or 4V Applications
Pricing: $2,369.00

Customize Your Item

- Select Block for Main Bearings -
 * required
- Select Bore -
 * required
- Select Dish -
 * required
- Select Valve Reliefs -
 * required
- Select Wrist Pins -
 * required
- Select Crankshaft -
 * required
- Balance Rotating Assembly? -
 * required
Qty:
Free Shipping!

Description

This is the exact same Rotating Assembly we use in our 1000 HP Capable 4.6L Short Blocks. If you are looking for a Forged Rotating Assembly designed to handle up to 1000 HP Reliably without breaking the bank, this is it.

  • Eagle Forged 8 Bolt Crankshaft
  • K1 Forged 4340 H-Beam Connecting Rods
    • 7/16" ARP 2000 Rod Bolts
  • Wiseco Forged 2618 Alloy Pistons
    • 2V PI, 2V TFS, 3V or 4V Specific Valve Reliefs
    • Wiseco's Armour Glide Skirt Coating
    • 4130 Chrome Moly Wrist Pins with Round Wire Locks
  • Wiseco Steel Nitrided Stainless Steel Top, Napier 2nd Ring Set
    • Excellent for Any Amount of Boost and / or Nitrous
  • King XP Main Bearings
  • King XPSeries Rod Bearings
Compression Ratios
   Piston Dish Volume       2V PI     2V TFS 38cc   2V TFS 44cc  3V    4V
-6cc Dish  11.25::1  12.05:1  10.9:1   9.6:1 9.7:1
-13cc Dish  10.1:1 10.75:1  9.85:1   8.75:1   9.3:1
-16cc Dish  9.7:1 10.3:1  9.45:1  8.45:1   8.5:1
-20cc Dish  9.2:1  9.7:1  9.0:1  8.1:1   8.1:1

Options:
Upgrade to 52100 Tool Steel Wrist Pins - Recommended for 800+ HP
Upgrade to Manley Forged Crankshaft - Recommended for Blower Applications
*Stud Manley Forged Crankshaft - Recommended for Blower Applications
*Includes 9/16" ARP Crankshaft Stud, Washer and Nut
*Only available with Balancing option

*Internal Balancing Available
Rods and Pistons Weight Matched to +/- 0.1g
Crankshaft Balanced to 0.2g Tolerance

Details

Shipping Information

  • Item Requires Shipping
  • 85.0 lbs.
  • W24.0000” x H24.0000” x L36.0000”
  • Free Shipping!
