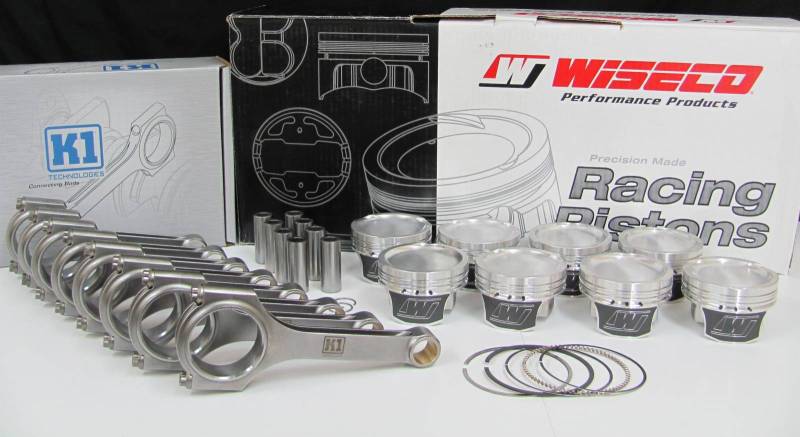

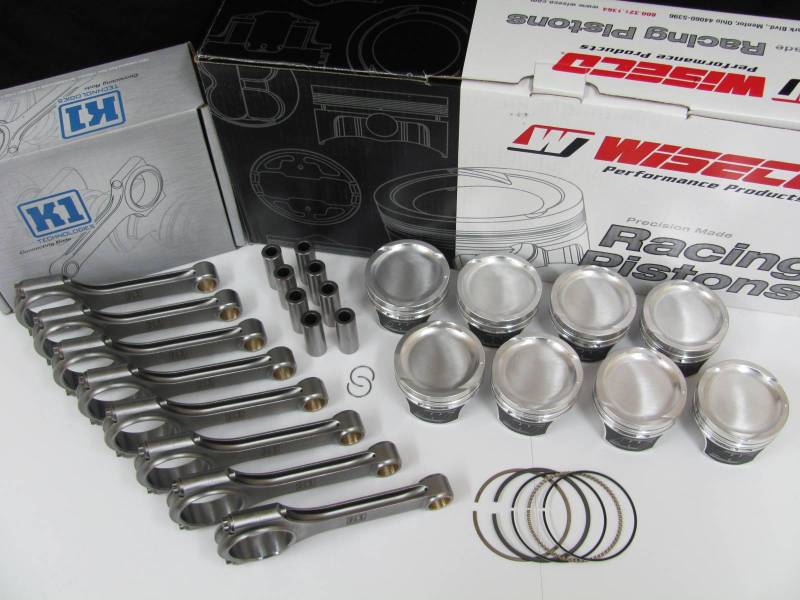

5.4L Wiseco Pistons / K1 H-Beam Connecting Rod Combo

MHS-13454
5.4L Specific Pistons available for 2V PI, 2V TFS, 3V and 4V. Comes with Boost / Nitrous Compatible Piston Ring Set and K1 Rods with 7/16" ARP 2000 Rod Bolts.
Pricing: $1,499.00

Customize Your Item

- Select Bore -
 * required
- Select Dish -
 * required
- Select Valve Reliefs -
 * required
- Select Wrist Pins -
 * required
- Add Rod Bearings? -
 * required
Qty:
Free Shipping!

Description


This Wiseco Piston / Rod Combo features 5.4L Specific Pistons with a 1.330" Compression Height which brings the piston up to the top of the deck. The standard 4.6L / 5.4L Pistons will sit .120" down in the cylinder on the 5.4L block which takes away quench and combustion efficiency. By raising the compression height we are able to improve combustion and flame travel which results on a more complete burn and more power. This is a great choice for all 5.4L's. The Pistons also feature super thick Skirts and Struts and a .300" Down Top Ring for added strength, as well as Wiseco's Armour Glide Skirt Coating. The K1 H-Beam Rods feature 7/16" ARP 2000 Rod Bolts and are some of the strongest H-Beam Rods available for the 5.4L Engines. This Kit also comes with Piston Rings. Wiseco GNX Ring Set uses a Steel Nitrided Top Ring and a Napier 2nd Ring and is able to handle boost pressures of over 50 PSI.

  • Wiseco Forged 2618 Alloy Piston
    • 5.4L Specific - 1.330" Compression Height
    • 2V PI, 2V TFS. 3V or 4V Valve Reliefs
    • .300" Down Top Ring
    • Extra Thick Skirts and Struts
    • Pressure Balance Groove
    • Armour Glide Coated Skirts
    • 4130 Chrome Moly .173" Wall Pins
    • Wiseco GNX Ring Set w/ Steel Top Ring and Napier 2nd Ring
  • K1 Forged 4340 H-Beam Connecting Rods
    • Strongest H-Beam Available

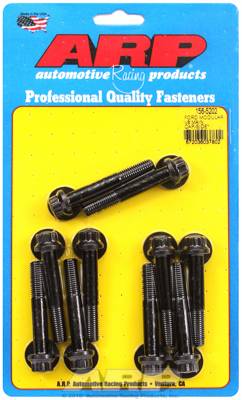

    • Comes Standard with 7/16" ARP 2000 Rod Bolts
Compression Ratios
  2V PI   2V TFS 38cc    2V TFS 44cc        3V             4V
-6cc Dish   13.0:1   14.0:1  12.6:1 11.0:1  11.1:1
-13cc Dish  11.7:1  12.5:1  11.4:1 10.1:1  10.2:1
-16cc Dish   11.2:1   11.9:1  10.9:1 9.8:1 9.9:1
-20cc Dish   10.6:1   11.2:1   10.4:1  9.3:1  9.4:1

Options:
  • Upgrade to Tool Steel .200" Wall Wrist Pins
  • Add a Set of Clevite H-Series Rods Bearings
  • Add a Set of Calico Coated Clevite H-Series Rod Bearings

The Pistons included in this kit are semi-custom and made to order. They will take around 3 weeks before they are ready to ship.

We also offer Internal Balancing. Send us your crankshaft and we will balance your entire assembly. Please call for details.



Details

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W14.0000” x H14.0000” x L28.0000”
  • Free Shipping!
