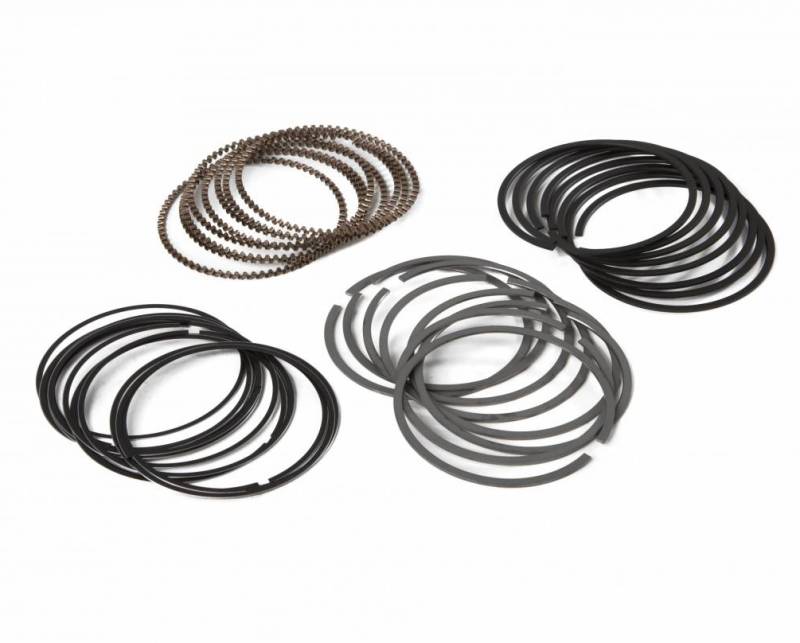

Diamond Pro Select 09053660 - AP Steel Piston Rings 1.5mm x 1.5mm x 3mm - 3.660" Bore

DIA-09053660
Fits Mod2K and earlier Diamond 5.0L Coyote Shelf PN Pistons
Pricing: $289.99
Qty:
Free Shipping!

Description

Diamond Pro Select 09053660 - AP Steel Piston Rings for Ford 5.0L Coyote - 3.660" Bore

This Diamond Pro Select Piston Ring Set includes AP Steel Top Rings, which we highly recommend for all Forced Induction and Nitrous applications. The 0905 Prefix Rings fit 2019 and earlier Diamond shelf PN Pistons with a 1.5mm x 1.5mm x 3mm Ring Stack. These will also fit the 5.0L Coyote Mod2K line of Pistons. Will not fit the newer 5.0L Competition Series.

Part Number  09053660
Bore   3.660"
Top Ring Axial Height  1.5mm / 0.0585"
Top Ring Radial Width   0.150"
Top Ring Type  AP Steel - C33 PVD Coated
2nd Ring Axial Height  1.5mm / 0.0585"
2nd Ring Radial Width   0.164"
2nd Ring Type   Reverse Back Twist - Cast Iron
Oil Ring Axial Height  3.0mm / 0.118"
Oil Ring Radial Width   0.145"
Oil Ring Type  3 Piece
Oil Ring Tension  Low 11lbs +/-
File to Fit?   Yes - Must file to fit
Quantity  Set of 8



Details

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W6.0000” x H2.0000” x L8.0000”
  • Free Shipping!
