Diamond Pro Select 09053552 - AP Steel Piston Rings 1.5mm x 1.5mm x 3mm - 3.552" Bore
DIA-09053552
Fits 2019 and earlier Diamond 4.6L / 5.4L and Mod2K Standard Bore Pistons
Pricing:
$289.99
Description

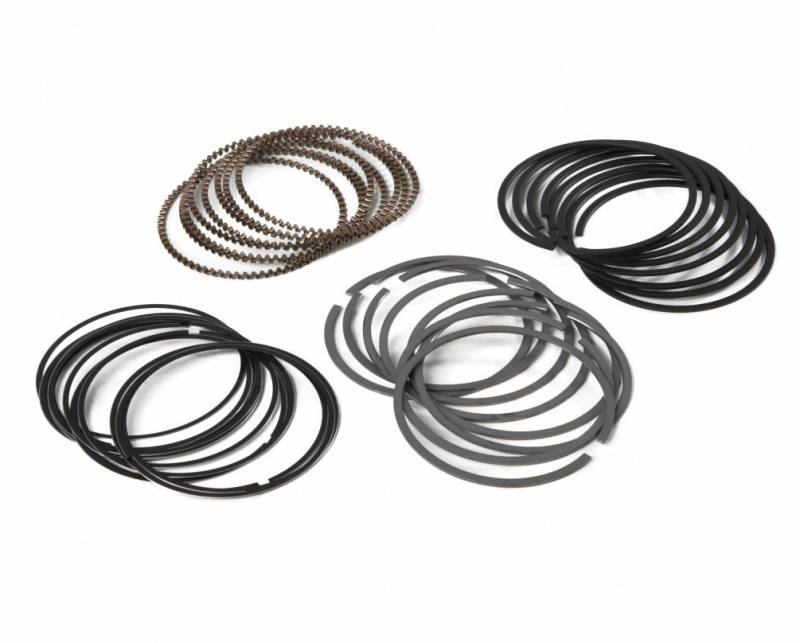

Diamond Pro Select 09053552 - AP Steel Piston Rings for Ford 4.6L / 5.4L - Standard Bore
This Diamond Pro Select Piston Ring Set includes AP Steel Top Rings, which we highly recommend for all Forced Induction and Nitrous applications. The 0905 Prefix Rings fit 2019 and earlier Diamond Piston Part Numbers for the 4.6L / 5.4L and the newer Mod2K line of Pistons. These will not fit the newer 4.6L / 5.4L Competition Series Pistons.
| Part Number | 09053552 |
| Bore | 3.552" |
| Top Ring Axial Height | 1.5mm / 0.0585" |
| Top Ring Radial Width | 0.150" |
| Top Ring Type | AP Steel - C33 PVD Coated |
| 2nd Ring Axial Height | 1.5mm / 0.0585" |
| 2nd Ring Radial Width | 0.157" |
| 2nd Ring Type | Reverse Back Twist - Cast Iron |
| Oil Ring Axial Height | 3.0mm / 0.118" |
| Oil Ring Radial Width | 0.145" |
| Oil Ring Type | 3 Piece |
| Oil Ring Tension | Low 11lbs +/- |
| File to Fit? | Yes - Must file to fit |
| Quantity | Set of 8 |
Details
- DIA-09053552
- DIA-09053552
- Diamond Racing Products
- New
Categories
- Piston Rings - Diamond Pro Select Piston Rings - 0905 Series - AP Steel 1.5mm x 1.5mm x 3mm
- 0905 Series - AP Steel 1.5mm x 1.5mm x 3mm
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W6.0000” x H2.0000” x L8.0000”
- Free Shipping!
