Diamond Pro Select 09053630 - AP Steel Piston Rings 1.5mm x 1.5mm x 3mm - 3.630" Bore

(0) Reviews: Write first review

SKU: DIA-09053630

Fits Mod2K and earlier Diamond 5.0L Coyote Shelf PN Pistons

Pricing: $333.41

Description
Details
Shipping
Reviews

Description

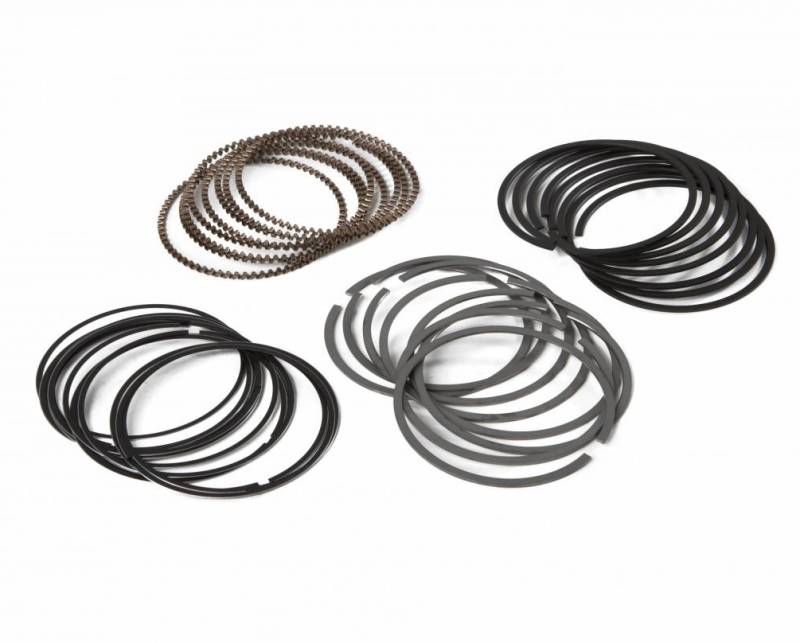

Diamond Pro Select 09053630 - AP Steel Piston Rings for Ford 5.0L Coyote - 3.630" Bore

This Diamond Pro Select Piston Ring Set includes AP Steel Top Rings, which we highly recommend for all Forced Induction and Nitrous applications. The 0905 Prefix Rings fit 2019 and earlier Diamond shelf PN Pistons with a 1.5mm x 1.5mm x 3mm Ring Stack. These will also fit the 5.0L Coyote Mod2K line of Pistons. Will not fit the newer 5.0L Competition Series.

Part Number	09053630
Bore	3.630"
Top Ring Axial Height	1.5mm / 0.0585"
Top Ring Radial Width	0.150"
Top Ring Type	AP Steel - C33 PVD Coated
2nd Ring Axial Height	1.5mm / 0.0585"
2nd Ring Radial Width	0.164"
2nd Ring Type	Reverse Back Twist - Cast Iron
Oil Ring Axial Height	3.0mm / 0.118"
Oil Ring Radial Width	0.145"
Oil Ring Type	3 Piece
Oil Ring Tension	Low 11lbs +/-
File to Fit?	Yes - Must file to fit
Quantity	Set of 8
