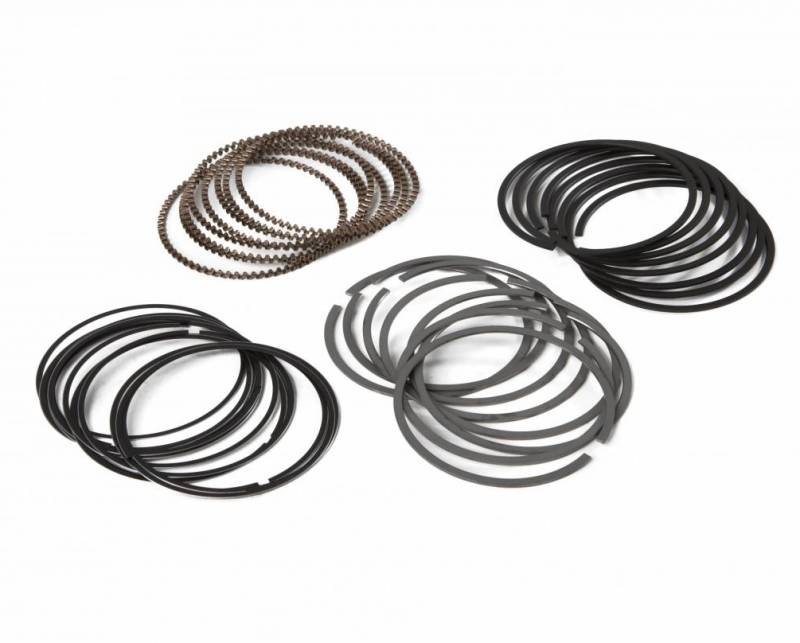

Diamond Pro Select 09053572 - AP Steel Piston Rings 1.5mm x 1.5mm x 3mm - 3.572" Bore

Fits 2019 and earlier Diamond 4.6L / 5.4L and Mod2K .020" Over Bore Pistons
Pricing: $333.41


Diamond Pro Select 09053572 - AP Steel Piston Rings for Ford 4.6L / 5.4L - .020" Over Bore

This Diamond Pro Select Piston Ring Set includes AP Steel Top Rings, which we highly recommend for all Forced Induction and Nitrous applications. The 0905 Prefix Rings fit 2019 and earlier Diamond Piston Part Numbers for the 4.6L / 5.4L and the newer Mod2K line of Pistons. These will not fit the newer 4.6L / 5.4L Competition Series Pistons.

Part Number  09053572
Bore   3.572"
Top Ring Axial Height  1.5mm / 0.0585"
Top Ring Radial Width   0.150"
Top Ring Type  AP Steel - C33 PVD Coated
2nd Ring Axial Height  1.5mm / 0.0585"
2nd Ring Radial Width   0.157"
2nd Ring Type   Reverse Back Twist - Cast Iron
Oil Ring Axial Height  3.0mm / 0.118"
Oil Ring Radial Width   0.145"
Oil Ring Type  3 Piece
Oil Ring Tension  Low 11lbs +/-
File to Fit?   Yes - Must file to fit
Quantity  Set of 8




Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W6.0000” x H2.0000” x L8.0000”
