MHS Edelbrock 4.6L 2V Intake Manifold Combo - Return Style with Regulator - 75mm

MHS-180066
Fits 96-98 4.6L 2V and all Return Style 2V Applications. Now Supplied with Magnafuel 2 Port Boost Referenced Fuel Pressure Regulator.
Not Available
Pricing: $1,175.00

Description

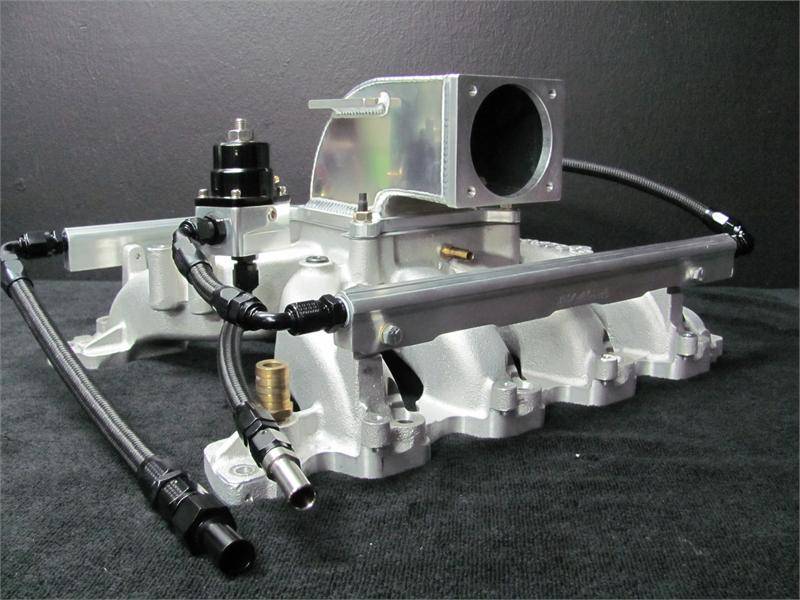

ITS FINALLY HERE! A Complete Bolt on Edelbrock Victor Jr. Intake Combo for Return Style Fuel Systems. It comes with custom fuel lines cut to length and assembled, Edelbrock Fuel Rails, the 6061 Elbow, a Magnafuel 2 Port Fuel Pressure Regulator and 4150 Gasket and Mounting Studs. This Manifold Setup does not allow for the use of the EGR. The Fuel Pressure Regulator uses a 1:1 Boost Reference and also comes with (1) Extra -6 ORB Port and (1) 1/8" NPT Port for running an aftermarket Fuel Pressure Gauge. The extra -6 AN ORB Port is an excellent place to tap into for running a Nitrous application. The Manifold combo is shipped with Fuel Lines and Fitting Assemblies installed. Just install the Elbow and click the factory spring lock lines to our adapters.

Included:
Edelbrock Victor Jr Manifold
MHS Sheet Metal 4150 Elbow w/ 3 1/4" NPT Ports
Edelbrock Aluminum Fuel Rails and Hardware
Custom Fuel Lines and AN Fitting Assemblies - Black Nylon Braid - E85 Compatible
Magnafuel 2 Port Fuel Pressure Regulator (1:1 Boost Reference) and Custom Mount
Factory Spring Lock Adapters for Feed and Return   -8 AN Feed, -6 AN Return
4150 Gasket
ARP Baseplate Studs - Black Oxide or Stainless



Options:

  • Port Matched Intake Runners - Fits all MHS Stage 1, 2 and 3 and TFS 185cc Intake Runners
  • ARP Stainless Steel Intake Manifold Bolt Kit
  • MHS Black Anodized Vacuum Fitting Kit
  • Accufab 75mm Throttle Body - Includes ARP Bolts

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 30.0 lbs.
  • W24.0000” x H12.0000” x L24.0000”
  • Free Shipping!
