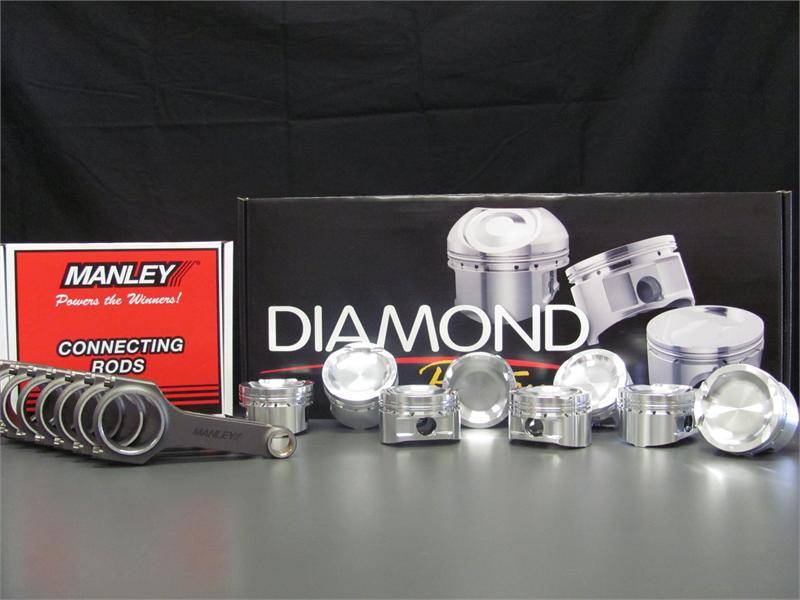

5.0L Coyote Diamond Competition Series Pistons / Manley H-Beam Connecting Rods Combo

EXC-13300
Pricing: $1,619.00

Customize Your Item

- Select Wrist Pins -
 * required
- Select Bore -
 * required
- Select Piston Volume -
 * required
- Add Ceramic Dome Coating -
 * required
- Add Lateral Gas Ports -
 * required
- Upgrade to ARP 2000 Rod Bolts? -
 * required
- Add Rod Bearings? -
 * required
Qty:
Free Shipping!

Description

  • Diamond Competition Series Forged 5.0L Coyote Pistons - Any Available Dish
    • Standard, .010" or .020" Over Bore
    • Premium 8620 Alloy .180" Wall Wrist Pins
    • .100" Intake and Exhaust Valve Pocket for High Lift Camshafts
    • Moly Skirt Coating Included to Reduce Friction and Protect Skirts
    • Total Seal AP Steel Ring Set Included - Great for Nitrous/High Boost Applications
  • Manley Forged 4340 H-Beam Connecting Rods
    • 3/8" ARP 8740 Cap Screws
Compression Ratios
                                             57cc
 +8.0cc Dome 11.5:1
 +5.0cc Dome  11.0:1
 +1.8cc Dome  10.5:1
-2.0 cc Flat Top 10.1:1
-6.0cc Dish  9.5:1
-10.0cc Dish  9.0:1
-15.5cc Dish  8.5:1

Options:
  • Upgrade to ARP 2000 Rod Bolts - Recommended for 800+ HP
  • Upgrade to H-13 Tool Steel Wrist Pins - Recommended for 800+ HP
  • Add Ceramic Dome Coating
  • Add Lateral Gas Porting - Recommended for Boost Levels over 20lbs
  • Add Clevite H-Series Rod Bearings
  • Add Calico Coated Clevite H-Series Rod Bearings
The 5.0L Coyote Diamond Pistons / Manley H-Beam Connecting Rod Combination is the Ultimate Package for 5.0L Coyote 4V Engines up to 1000 HP. It is at the 800 HP mark where we suggest upgrading to H-13 Tool Steel Wrist Pins and ARP 2000 Rod Bolts. The Piston Ring Set included with this set of pistons is the finest shelf stocking piston ring set available. This ring set features AP Steel Top Rings with the C33 face coating, Ductile Iron Napier Cut 2nd Rings and a 3 Piece Oil Ring Set. The AP Steel Top Rings are excellent for power adder applications and have better thermal transfer and sealing properties compared to old school chrome rings. The Ductile Iron Napier 2nd Rings offer additional oil control, which is always a bonus in high cylinder pressure applications. We recommend Clevite H-Series Rod Bearings for all modular applications.

The Pistons included in this kit are Made to Order. Please allow 2-3 Weeks for Delivery. Custom Pistons also available if you need something unique.

*We also offer Internal Balancing. Send us your Crankshaft and we can balance your entire assembly.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W14.0000” x H14.0000” x L28.0000”
  • Free Shipping!
