5.0L Coyote Ti-VCT Stage 2 CNC Porting Package

MHS-Ti-VCT-STG2CNC
Stage 2 CNC Porting Package for 5.0L Ti-VCT Cylinder Heads - Cleaning, Stage 2 CNC Program, Bronze Guides, Performance 4 Angle Valve Job, Manley +1mm Stainless Valves, PAC Stage 2 Springs and Retainers, Viton Stem Seals, Surfacing and Assembly
Pricing: $2,999.00

Customize Your Item

- Select Valve Springs -
 * required
Qty:
Free Shipping!

Description

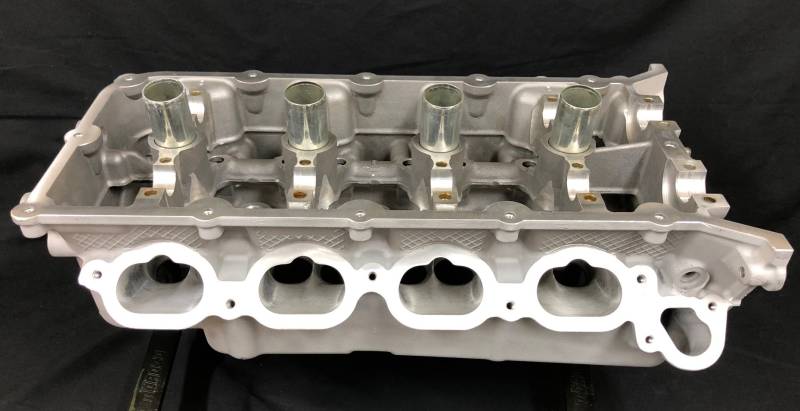

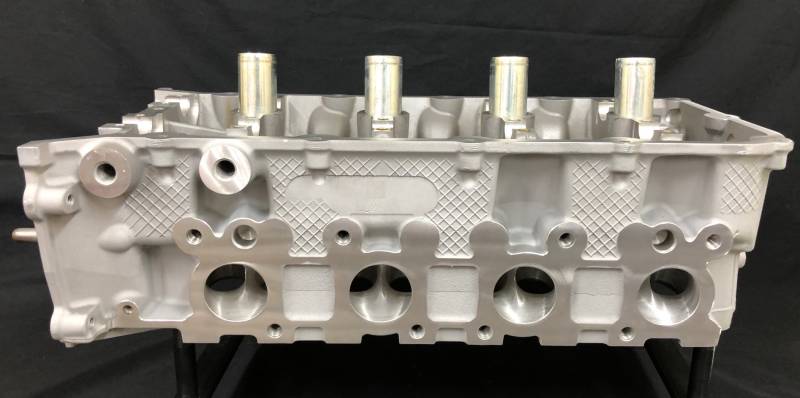

MHS 5.0L Coyote Ti-VCT Stage 2 CNC Porting Package

This Package includes the basic freshen up plus our Stage 2 CNC Porting and Chamber Programs, Manley +1mm Stainless Steel Valves and PAC Stage 2 Valve Springs and Retainers.

We start by disassembling the heads, thoroughly inspecting them for any possible damage, removing all oil galley plugs and freeze plugs, removing the old valve guides, deep cleaning them and bead blasting the ports and chambers to remove any additional carbon deposits. After cleaning the Cylinder Heads are ran through our Stage 2 CNC Porting Program. The heads are then moved over to our Seat and Guide area where our custom Bronze Guides are installed and honed to size. We then perform our Performance 4 Angle Valve Job and then blend the bowls to the valve seat. The Heads are then surfaced on our CBN / PCD Surfacer and Assembled with our Viton Valve Stem Seals, Manley Stainless Steel Valves and PAC Stage 2 Valve Springs and Retainers. We have multiple Valve Spring options as an upgrade. Heads will also be assembled with new USA Made Brass Freeze Plugs and New Oil Gallery Plugs.

Cylinder Heads are to be sent in with camshafts, lash adjusters and followers removed. If you would like to leave them in the cylinder heads, we can clean all the parts, polish up the camshafts and re-install everything for an additional cost.

Includes:

  • Disassembly and Cleaning of all Parts
  • Bead Blasting of Ports and Chambers

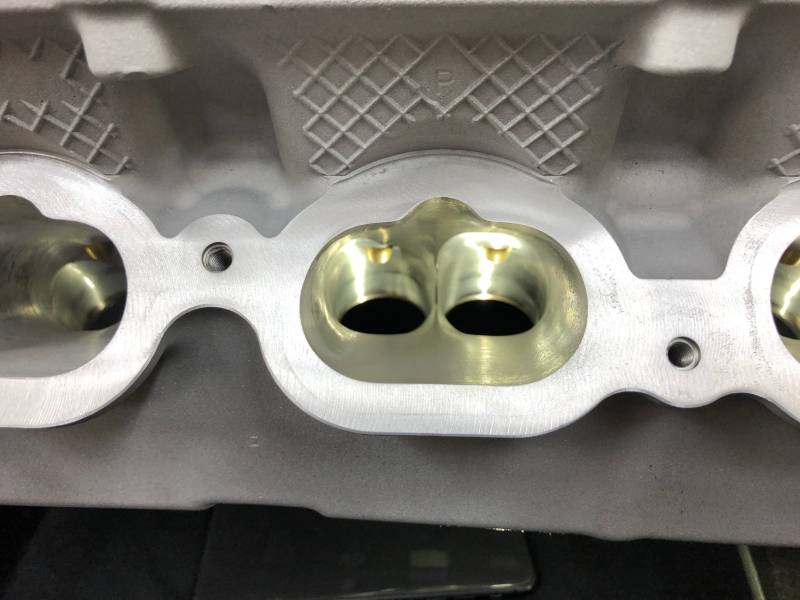

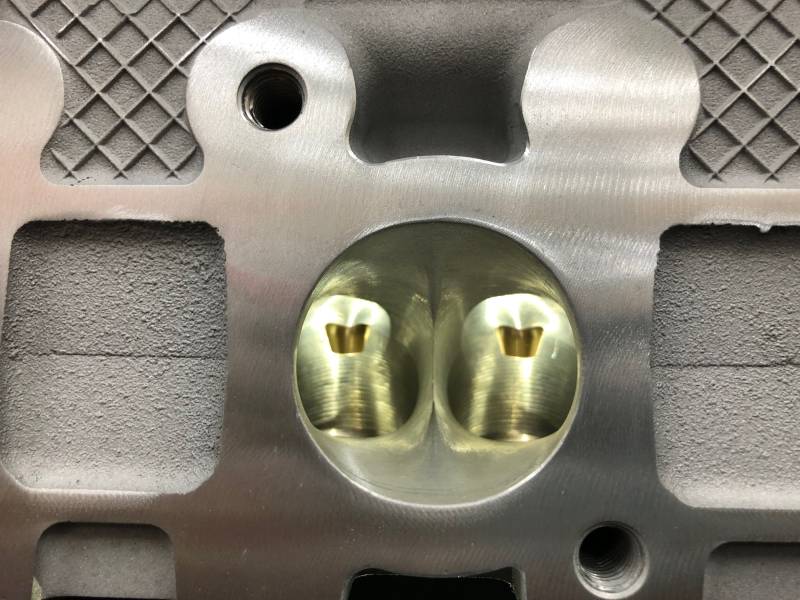

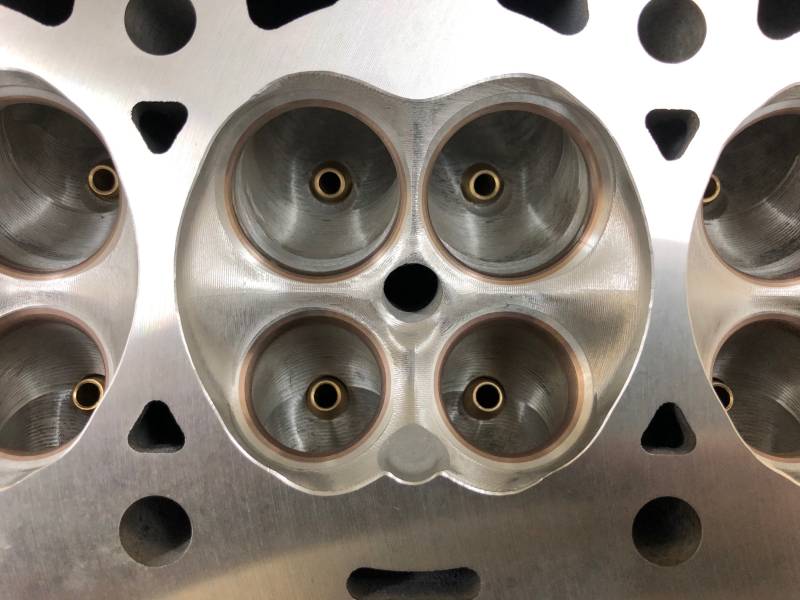

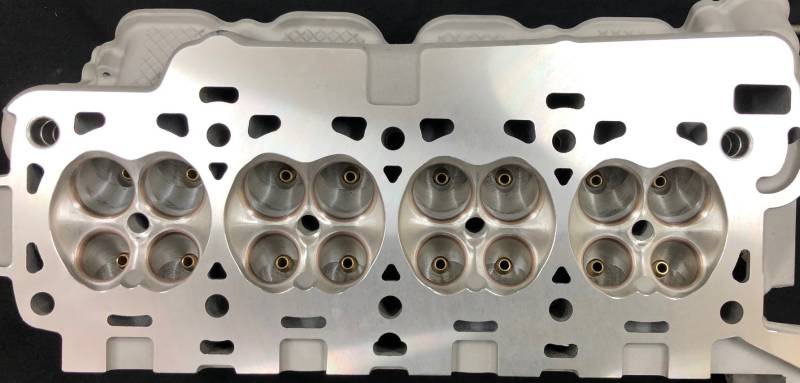

  • Stage 2 CNC Porting and Chamber Programs
  • Hand Blended Bowls to Valve Seats
  • MHS Bronze Valve Guides - Honed to Size
  • Performance 4 Angle Valve Job
  • Manley +1mm Stainless Steel Valves
  • MHS / PAC Stage 2 Valve Springs
  • MHS 4130 Chrome Moly Retainers
  • CBN Surfacing
  • New Viton Valve Stem Seals
  • New Brass Freeze Plugs and Oil Gallery Plugs
  • Assembly

Note: +1mm Oversize Valves only applies to GEN 1 Heads. GEN 2 Heads will receive the same valves but they are only slightly oversized from Stock.


SHIPPING - After your order is received, we will ship out a set of Cylinder Head Boxes to you with Pre-Paid Return Labels, all the proper packaging and packaging instructions to ensure your heads arrive safely. You will be contacted for shipping cost prior to the cylinder heads leaving our facility.

Details

  • MHS-Ti-VCT-STG2CNC
  • MHS-Ti-VCT-STG2CNC
  • Modular Head Shop
  • New

Shipping Information

  • Item Requires Shipping
  • 100.0 lbs.
  • W24.0000” x H12.0000” x L12.0000”
  • Free Shipping!
