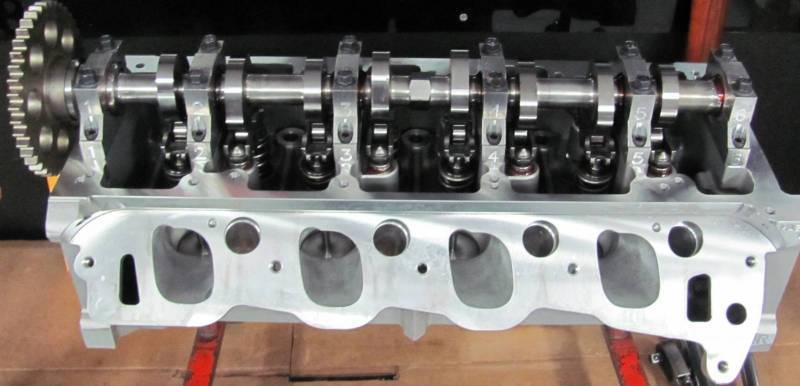

MHS Prepped TFS Twisted Wedge 185cc 2V Cylinder Head / Cam Combo

MHS-2V-TFS-C
Comes fully assembled with your choice of Camshafts. Available in 38cc or 44cc
Pricing: $5,399.00

Customize Your Item

- Select Chamber Volume -
 * required
- Select Camshafts -
 * required
Qty:
Free Shipping!

Description

MHS Prepped TFS Twisted Wedge 2V Cylinder Head / Cam Combo

  • TFS Twisted Wedge 185cc Cylinder Heads - 38cc or 44cc
  • TFS Stainless Steel 1.84" Intake / 1.450" Exhaust Valves
  • MHS / PAC RPM Series Valve Springs - 130lbs Seat Pressure, .600" Max Lift
  • MHS 4130 Chrome Moly Retainers
  • Viton Valve Seals
  • Ford GT Followers / Rockers
  • Ford GT Lash Adjusters
  • Any MHS Camshafts you want
  • Camshaft Bolts, Sprockets, Spacers and Washers
  • Camshaft Degree Service
  • A Set of TFS Billet Adjustable Crankshaft Gears

These Cylinder Heads come in a complete package ready to bolt on to your short block. We take care of everything else. These heads are 100% assembled in house. Valve lengths are verified, valve spring install heights are set exactly to our specifications, camshafts are degreed on our test engine and TFS crank gears are pinned together and marked for a simple installation. These heads come with our Stage 3 PAC RPM Series Valve Springs with 130lbs of seat pressure. We have tested these springs to 35lbs of boost and 8K RPM without any issues. We also use Ford GT Lash adjusters and Followers. These are a better design than the stock 2V / 4V lash adjusters and followers and be more reliable in high RPM applications.

Pricing is for a matching pair.



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 100.0 lbs.
  • W24.0000” x H12.0000” x L12.0000”
  • Free Shipping!
