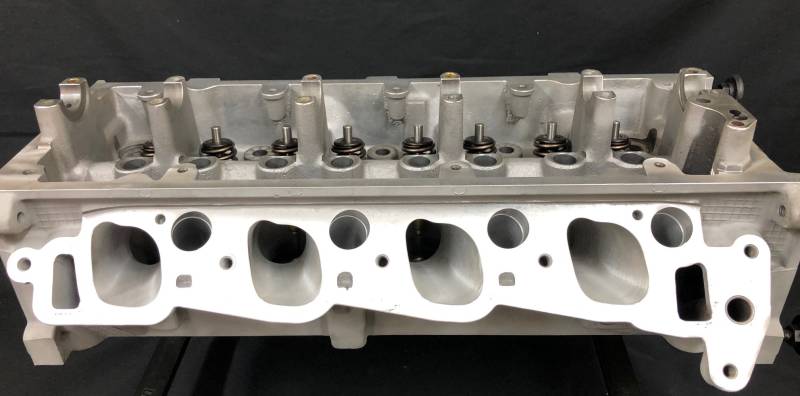

MHS 2V PI Romeo Stage 3 CNC Ported Head / Cam Combo

MHS-2VPI-STG3-C
Stage 3 CNC Ported Heads plus any MHS / Comp Camshafts, Ford GT Followers and Lash Adjusters, Cam Degree and Full Assembly. Ready to bolt on out of the box!
Was: $3,799.00
Sale: $3,419.10
Save: 10%
Save: $379.90

Customize Your Item

- Select Cylinder Head Cores -
 * required
- Select Camshafts -
 * required
Qty:
Free Shipping!

Description

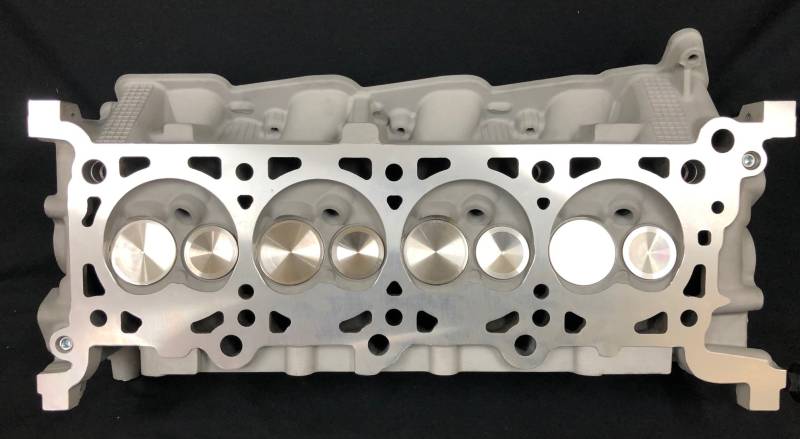

     The Stage 3 PI Head / Cam Combo is the ultimate 2V PI Cylinder head package. We include the best of the best components in these heads. Designed specifically for 700+ HP application. These heads are built to be abused. High Boost and High RPM is no issue. We have tested this combo to 35lbs of boost and 8500+ RPM. These cylinder heads are now only available with Manley Single Groove Valves and Ford GT Followers and Lash Adjusters.

Includes:

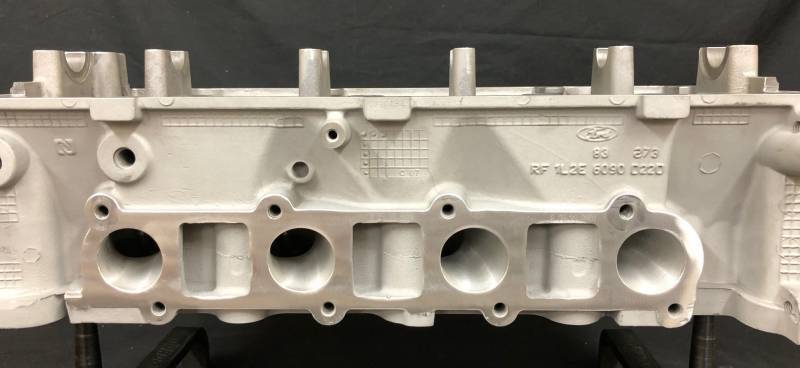

  • 2004 and Newer Romeo 8 Thread Castings

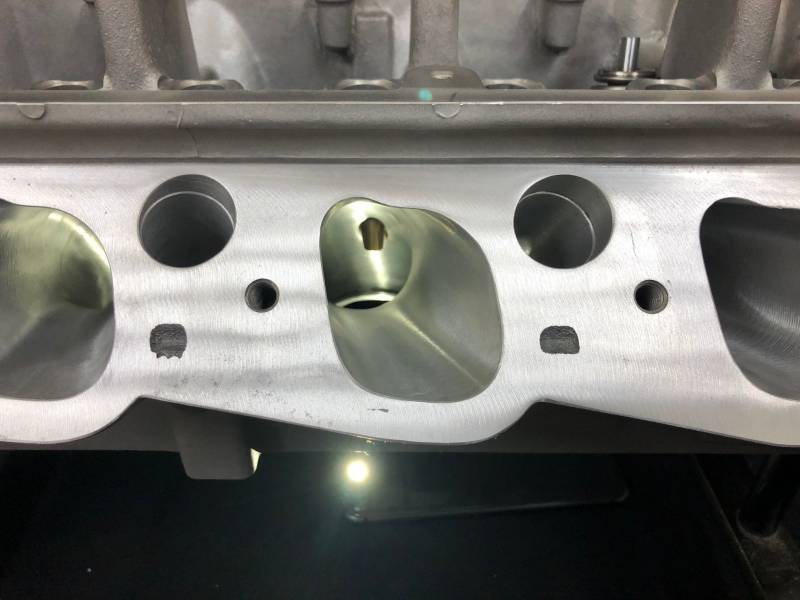

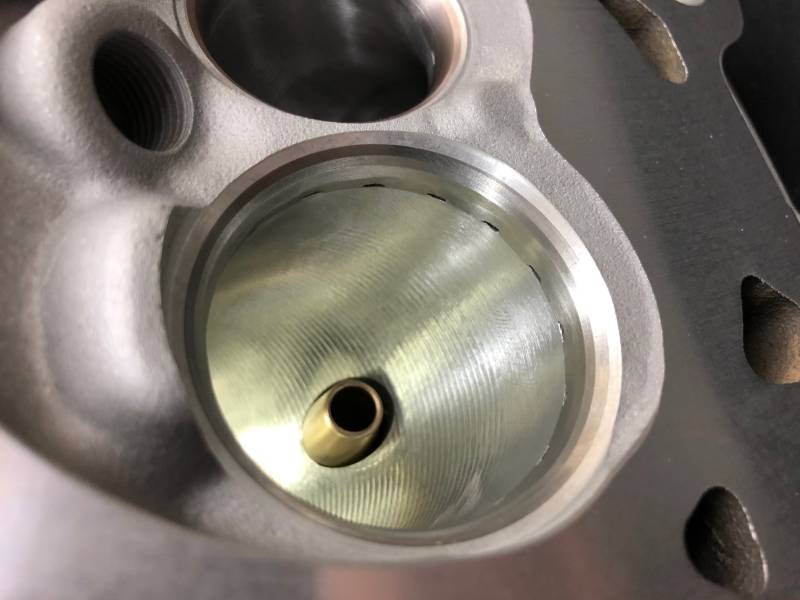

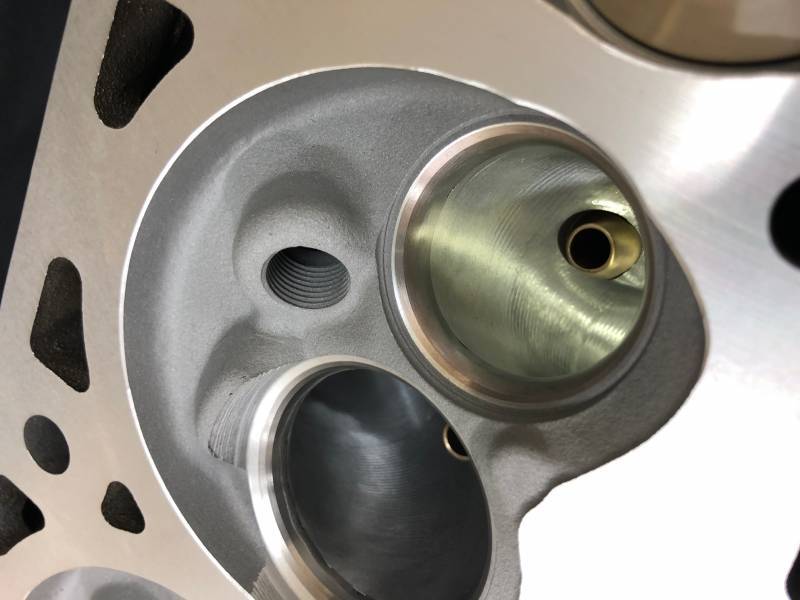

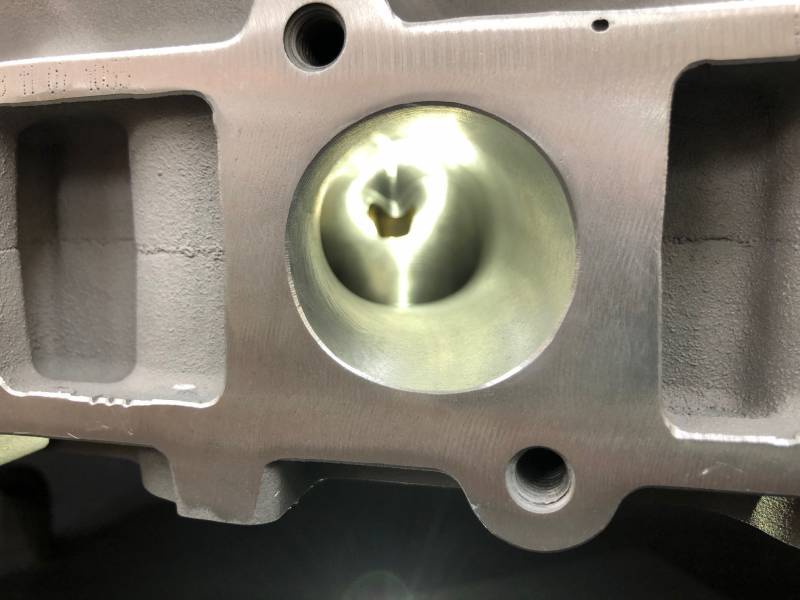

  • Stage 3 CNC Porting Program / Hand Blended Bowls to Valve Seat
  • Bronze Valve Guides Installed and sized with Diamond Hone
  • Competition Valve Job
  • Manley +1mm Stainless Steel BeadLoc Valves
  • Manley BeadLoc Valve Locks
  • MHS / PAC RPM Series Valve Springs - 135lbs Seat pressure
  • MHS 6AL-4V Titanium Retainers
  • Viton Valve Seals
  • Brass Freeze Plugs
  • CBN Surfacing for MLS Gaskets

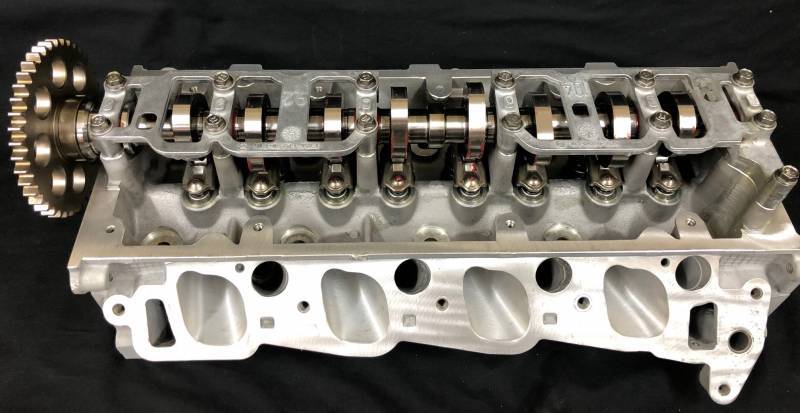

  • Any Set of MHS / Comp Camshafts
  • Camshaft Sprockets, Spacers, Washers, and ARP Camshaft Bolts
  • Ford GT Lash Adjusters
  • Ford GT Followers
  • Cam Degree Service
  • TFS Billet Adjustable Crank Gears - Pinned after adjustments are made
  • Full Assembly - Heads are ready to bolt on out of the box.

Options and Upgrades:

  • Switch to Windsor Cores - This is needed for 99-00 4.6L and 5.4L applications.
    • These are late model 8 thread cores, with the larger timing cover bolt holes and Windsor Valve cover bolt pattern.

Details

  • MHS-2VPI-STG3-C
  • MHS-2VPI-STG3-C
  • Modular Head Shop
  • New

Shipping Information

  • Item Requires Shipping
  • 40.0 lbs.
  • W24.0000” x H12.0000” x L12.0000”
  • Free Shipping!
