MHS 5.0L Coyote Competition Rod and Piston Combo

MHS-13033
The Ultimate 5.0L Coyote Rod and Piston Combo. Available with 300M H-Beam or I-Beam Connecting Rods.
Pricing: $4,249.00

Customize Your Item

- Select H-Beam or I-Beam Rods -
 * required
- Select Bore Size -
 * required
- Add Rod Bearings? -
 * required
Qty:
Free Shipping!

Description

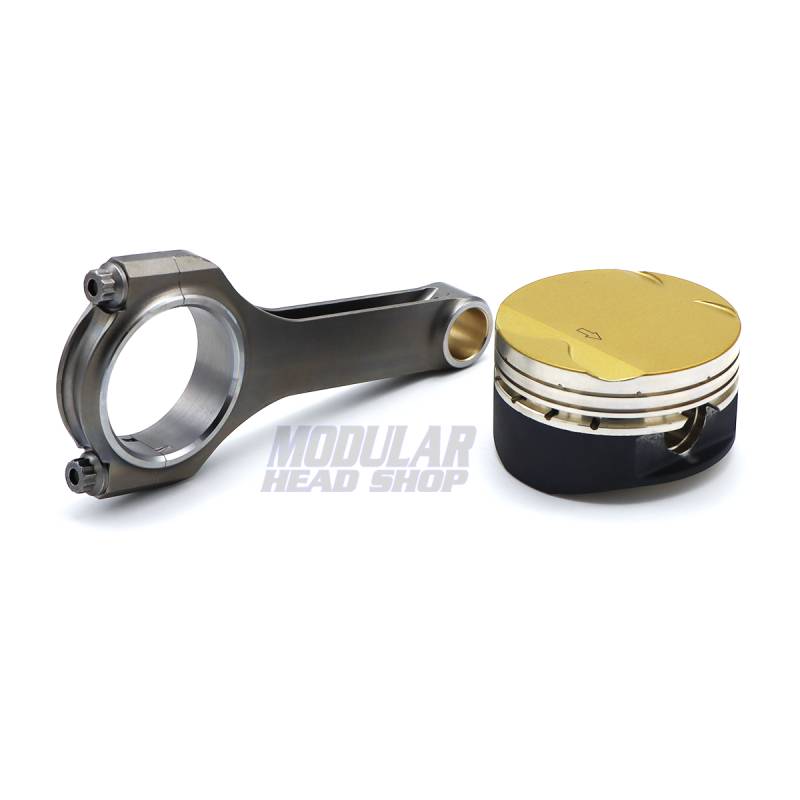

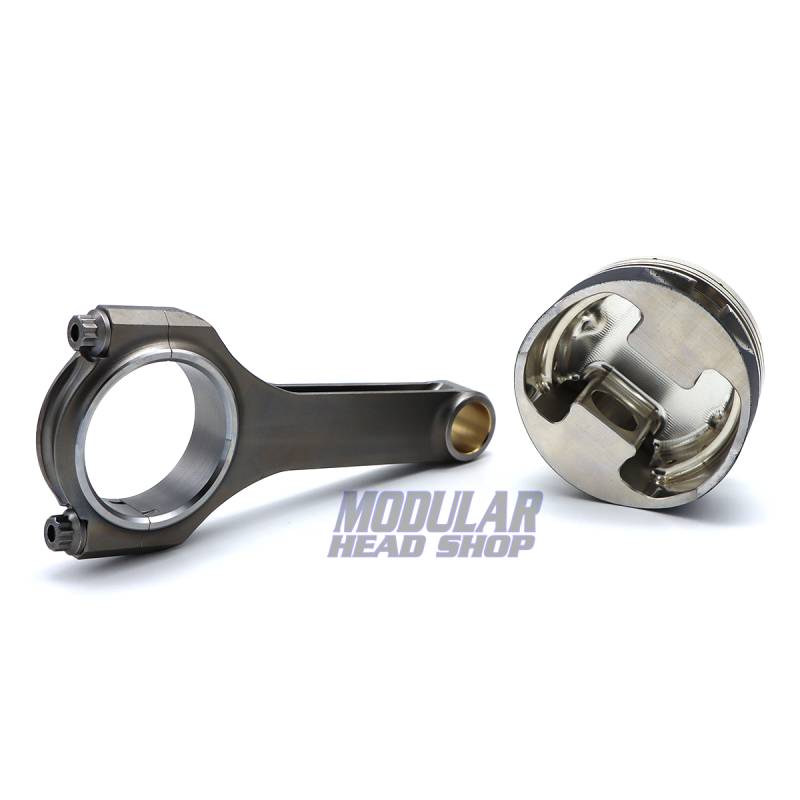

Modular Head Shop 5.0L Coyote Competition Rod and Piston Combo

This rod and piston combo is designed for max effort 5.0L coyote applications. Designed for 1600+ WHP with lots of boost in mind. Both the Connecting Rods and Pistons we use in this combo are Forged and Machined right here in the USA to the tightest tolerances in the industry. This combo will come with your choice of our 300M H-Beam or I-Beam Connecting Rods paired with our Competition Wiseco Flat Top Pistons in your choice of 3.630" or 3.650" Bore.
We always suggest starting with 3.630" bore on a fresh build, so you have the maximum amount of bore to work with for freshen ups. We will be adding a 3.640" Bore option in the near future.

Piston Specs:

  • MHS-304033 / 304035
  • Manufactured by Wiseco
  • 3.630" or 3.650" Bore
  • -3cc Flat Top / 10.1:1 Compression
  • Full Round 2618 Competition Forging
  • .300" Down Top Ring with Max Ring Land Spacing
  • Lateral Gas Porting for better Top Ring Seal
  • Ceramic Dome Thermal Barrier Coating
  • Spray on Moly Skirt Coating
  • 3D Internal Skirt and Undercrown Mill for Lightening
  • Double Broached Pin Oilers
  • 2.500" x .230" Wall Tool Steel Wrist Pins
  • Wiseco 1.5mm x 1.5mm x 3mm Gas Nitrided Top, Napier 2nd, 3 Piece Oil Ring Set
  • Pistons, Rings, Pins, Rails and Locks Reciprocating Weight = 564g / 569g

Connecting Rod Specs
Manufactured by Dyers Top Rods for MHS
Forged, Machined, Heat Treated and Finished in the USA!

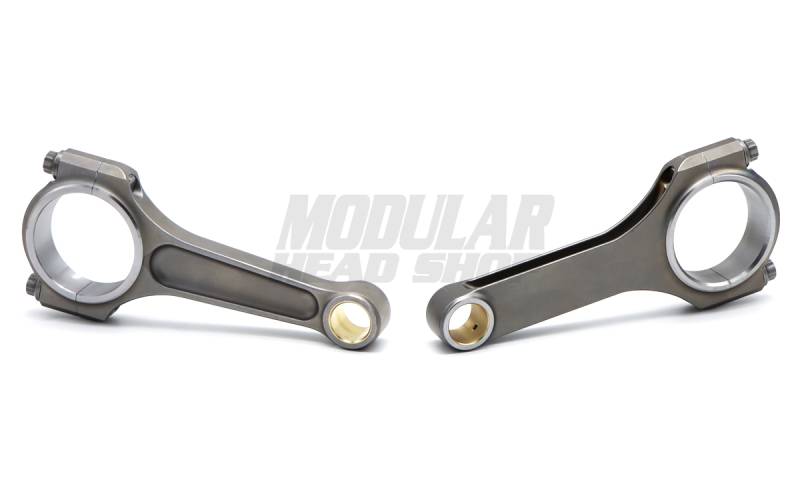

  H-Beams  I-Beams
Part Number MHS-155933  MHS-165933
Material  300M Alloy   300M Alloy
Length   5.933"   5.933"
Big End Bore   2.2396"   2.2396"
Wrist Pin Bore .8670"  .8670"
Big End Width  .938"  .938"
Pin End Width  .940"  .940"
Rod Bolts 7/16" ARP 2000  7/16" ARP 2000
Big End Weight   454g  471g
Pin End Weight   171g  196g
Total Weight   625g   667g

Average bobweight with H-Beams - 1749g / 1754g
Average bobweight with I-Beams - 1808g / 1813g

We are currently stocking this combo in 3.630" and 3.650" Bore.
Other bore sizes would be made to order.
Want to add a crankshaft or send yours in for balancing? Please contact us with any questions.
