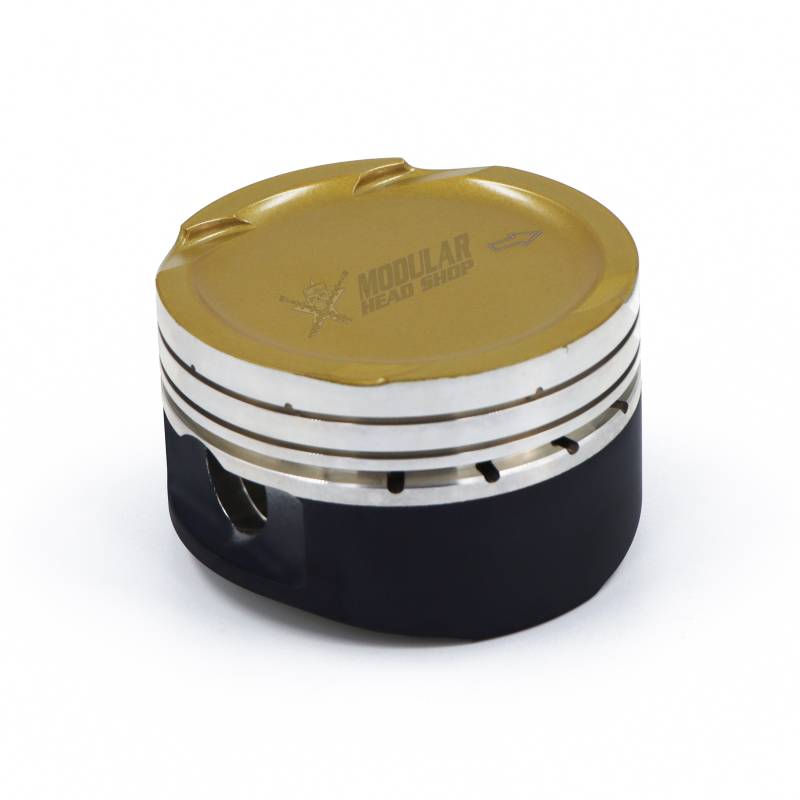

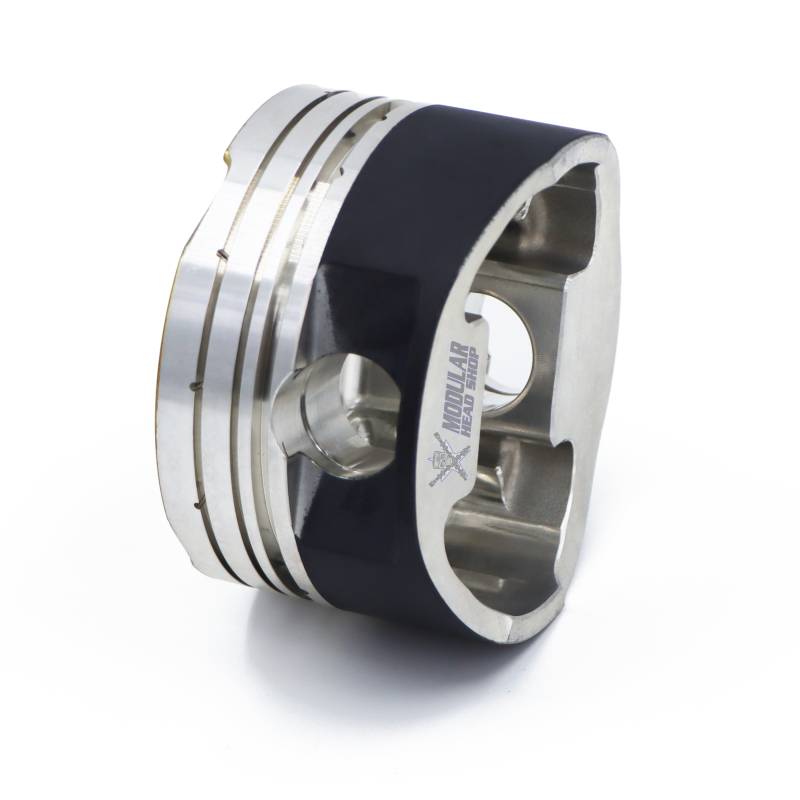

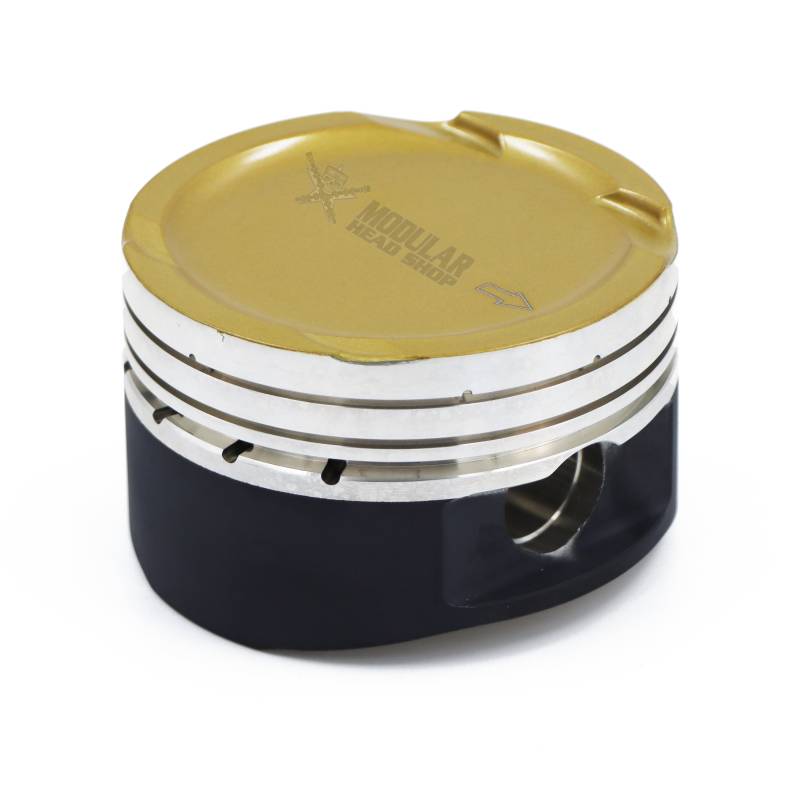

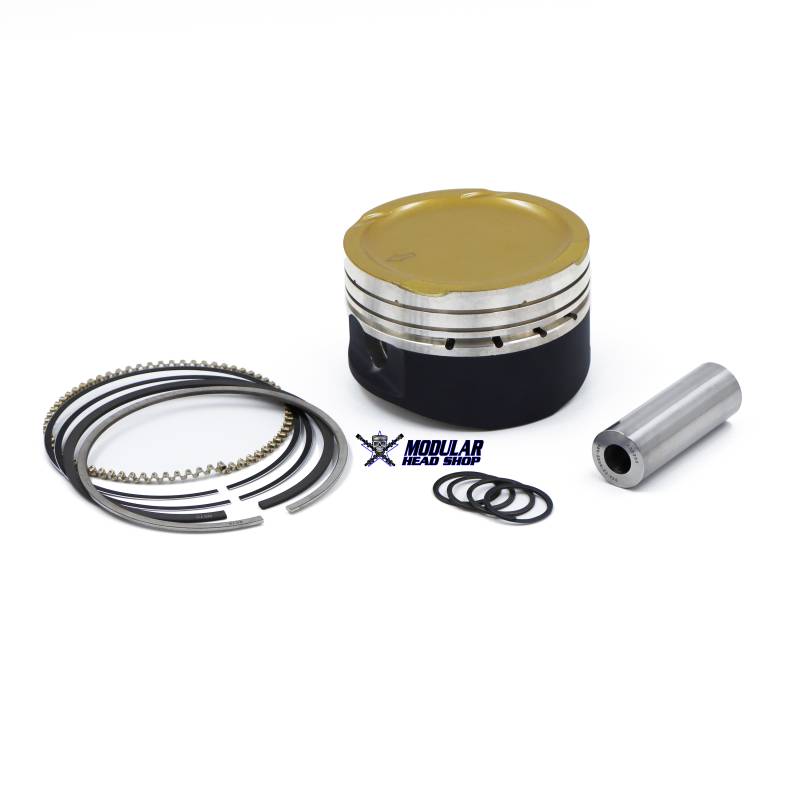

MHS / Wiseco 5.8L GT500 Competition Piston and Ring Kit -13cc Dish, 3.681" Bore

MHS-305830
Includes Lateral Gas Ports, Ceramic Dome and Moly Skirt Coating, .230" Tool Steel Wrist Pins.
Pricing: $1,799.00
Qty:
Free Shipping!

Description



This custom MHS /Wiseco Piston and Ring Kit is designed for competition use and capable of relabiably holding 2500+ HP and 45+ lbs of boost. These Pistons have many subtle upgrades and details that make them just plain work!

Why 10.5:1 Compression? It's a good compression ratio for high boost pressures. There is no need to go any higher, just to have to pull more timing. We have had extremely good success in the 10.0:1 - 10.5:1 Compression range on both Ethanol based fuels and Methanol.

  • 3.681" Bore
  • -13cc Dish / 10.5:1 Compression
  • Full Round 2618 Competition Forging
  • .300" Down Top Ring with Max Ring Land Spacing
  • Lateral Gas Porting for better Top Ring Seal

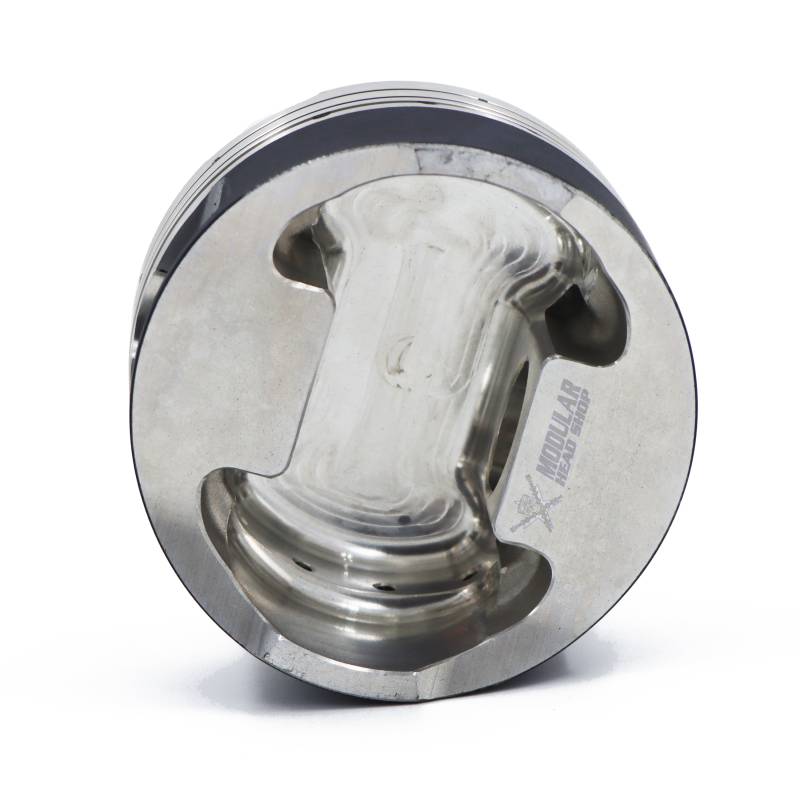

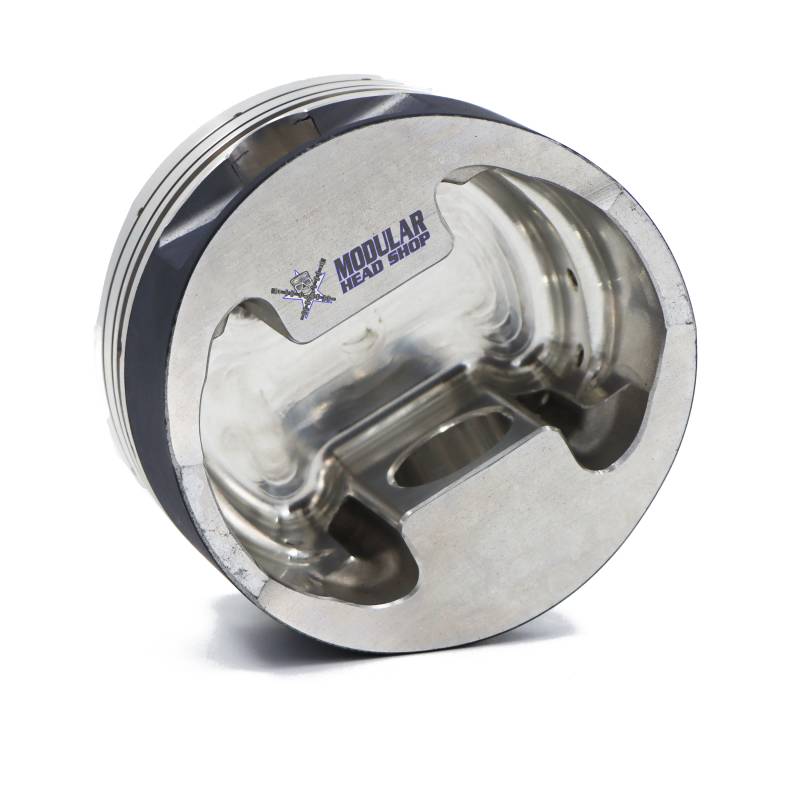

  • Internal Skirt and Undercrown Mill for Lightening
  • 3D Ball Milled / Softened Valve Pockets for Big Boost
  • Ceramic Dome Thermal Barrier Coating
  • Spray on Moly Skirt Coating
  • Double Broached Pin Oilers
  • 2.500" x .230" Wall Tool Steel Wrist Pins
  • Double Spiral Locks
  • Wiseco GNX Rings - Nitrided Steel Top, Napier 2nd
Part Number  MHS-305830
Application Ford 5.4L/ 5.8L GT500 / Ford GT
Bore  3.681"
Stroke  4.165"
Rod Length  6.657"
Compression Height  1.320"
Piston Volume -13cc
Piston Skirt Design  Full Round
Piston Material  2618 Aluminum Alloy
Piston Average Weight  474g
Compression Ratio 10.7:1 w/ 52cc Chambers, 10.4:1 with 54cc Chambers
Included Wrist Pin JE 866-2500-23-52S
Wrist Pin Material  52100 Tool Steel
Wrist Pin Dimension  .866" x 2.500" x .230" Wall - 146g
Lock Style  Double Spiral Locks
Replacement Lock PN  JE 866-042-CS
Ring Stack  1.5mm x 1.5mm x 3mm
Included Piston Ring Set  3681GNX
Piston Ring Details  Gas Nitrided Steel Top, Cast Iron Napier 2nd, 3 Piece Oil
Piston Assembly Reciprocating Weight   652g - Pistons, Pins, Clips and Rings
