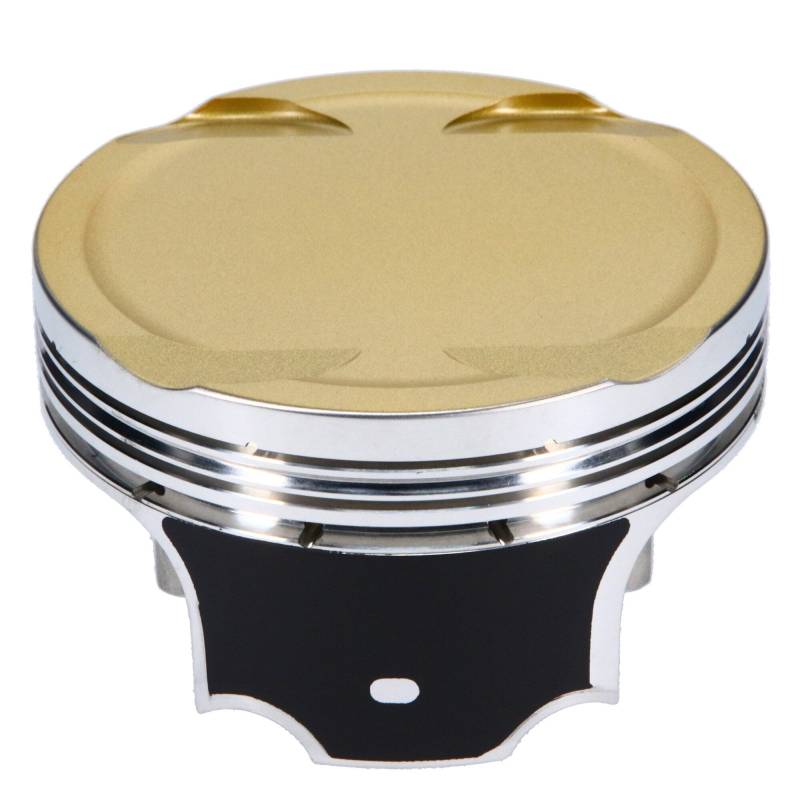

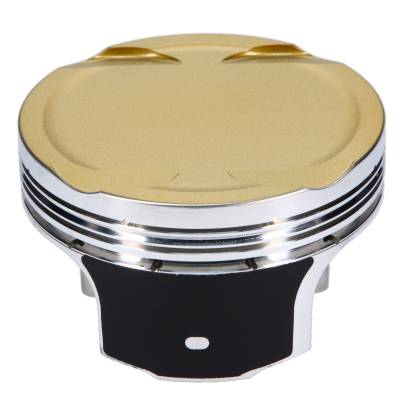

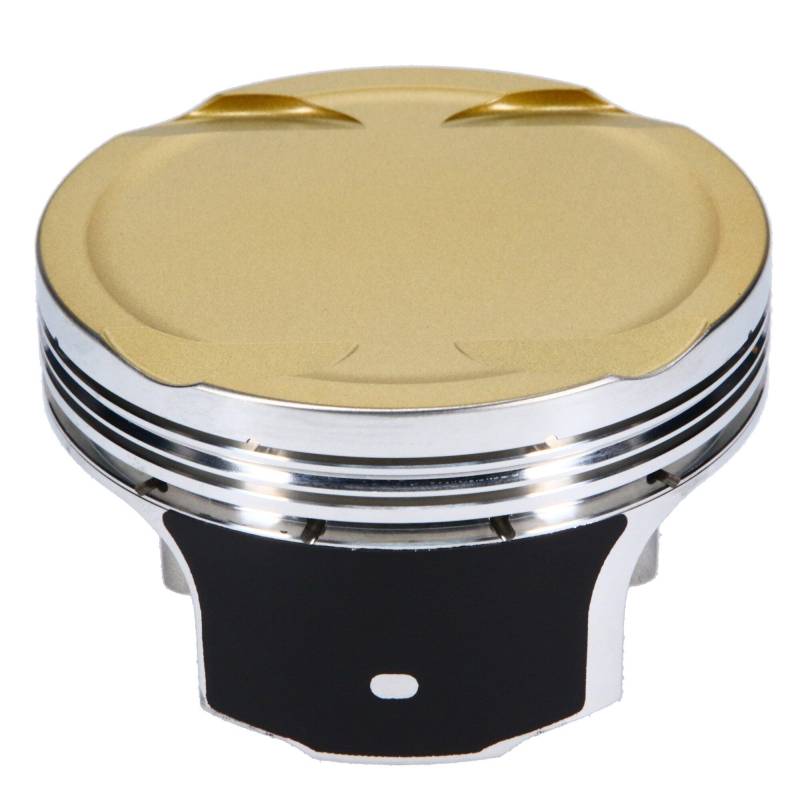

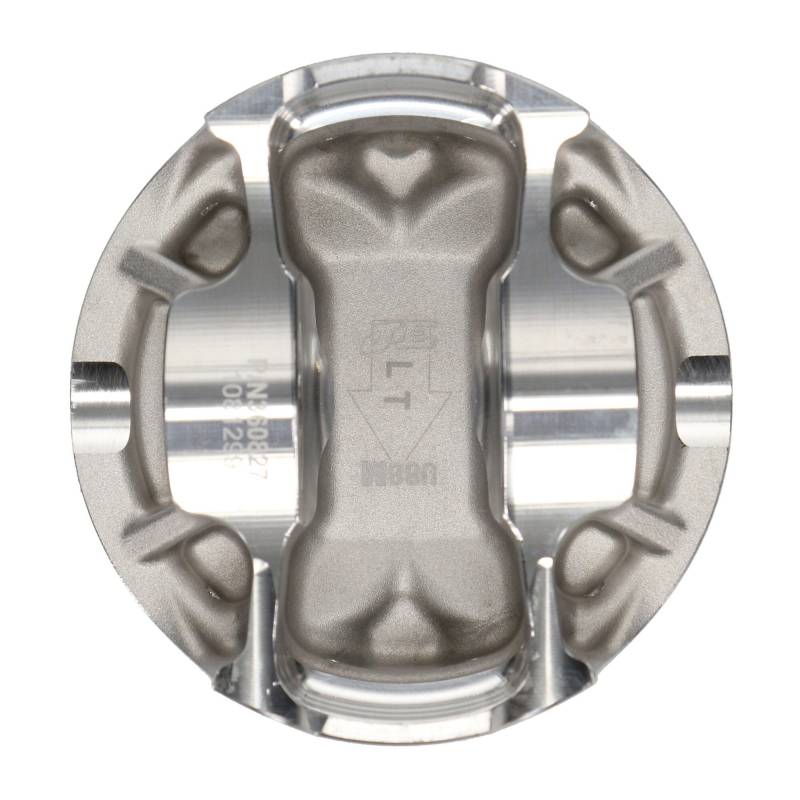

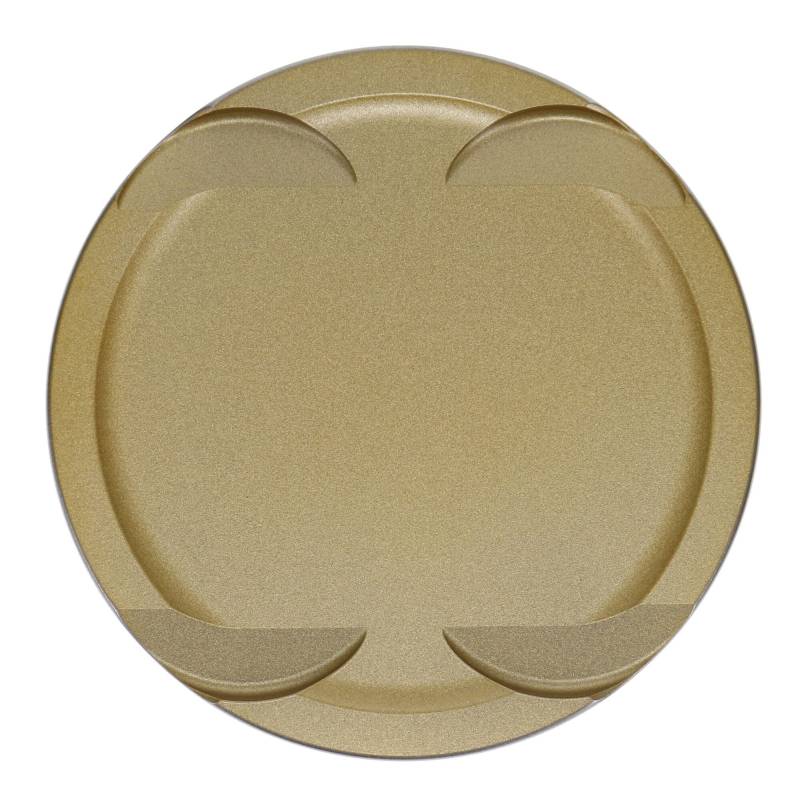

JE Pistons 360829 - Ford 5.0L Coyote Ultra Series Pistons 1.9cc Dome, 3.650" Bore, 3.650" Stroke, 5.933" Rod Length, 1.174" CD, .866" Pin
|Application||Ford Modular 5.0L Coyote|
|Cubic Inch||306 CI|
|Piston Skirt Design||Strutted - Forged Side Relief|
|Piston Average Weight||N/A|
|Included Wrist Pin||866-2250-23-93C|
|Included Wrist Pin Material||9310 Alloy|
|Included Wrist Pin Dimesions||.866" x 2.250" x .230" Wall - 132g|
|Ring Stack||1.0mm x 1.2mm x 2.8mm|
|Recommended Piston Ring Set||JG1008-3652|
|Recommended Piston Ring Details||Gas Nitrided Steel Top, Ductile Iron Napier Cut 2nd, Low Tension Oil|
The JE Ultra Series Pistons for the 5.0L Coyote are an excellent choice for applications anywhere from 800 HP all the way to 1500 HP +. These pistons include many "Custom" options such as Grain Optimized Forgings, Lateral Gas Ports, Perfect Skirt Coating, Ceramic Dome Coating and .230" Wall Tool Steel Wrist Pins, all in a shelf part number. While extremely strong, these pistons are not particularly heavy and work well in both standard liner and sleeved applications.
Options and features explained:
- JE's Perfect Skirt Coating is a screen style skirt coating that is 3x thicker than traditional skirt coatings. This allows high performance pistons to be ran at slightly tighter piston to wall clearances. This coating is designed to continuously conform to the cylinder bore while reducing piston skirt and cylinder bore wear.
- Item Requires Shipping
- 12.0 lbs.
- W12.0000” x H6.0000” x L12.0000”
- Free Shipping!
