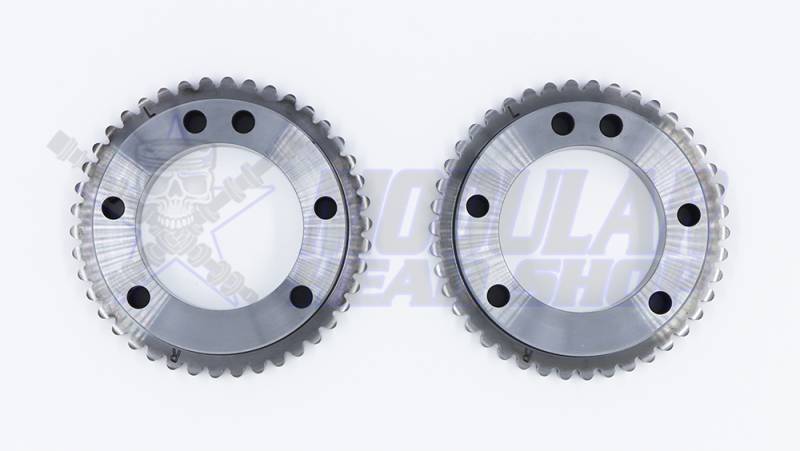

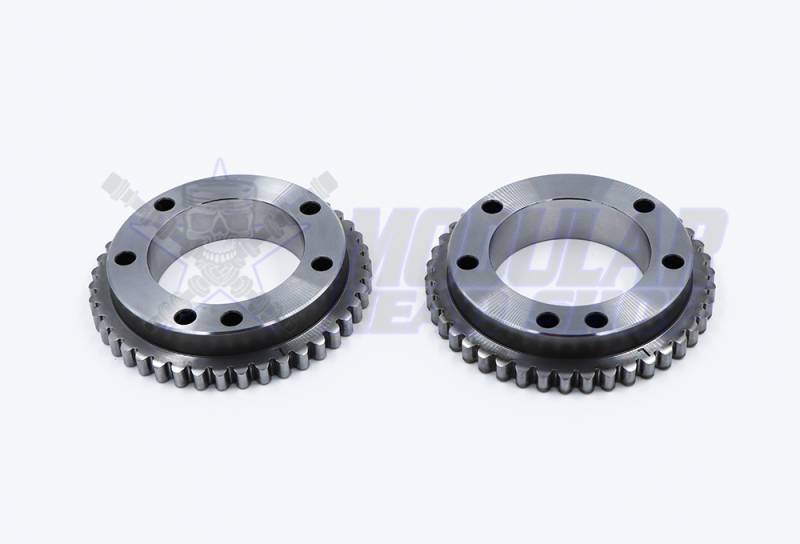

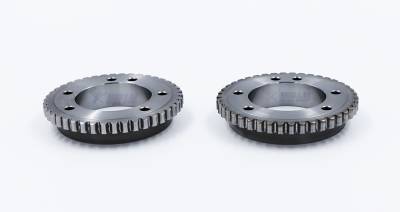

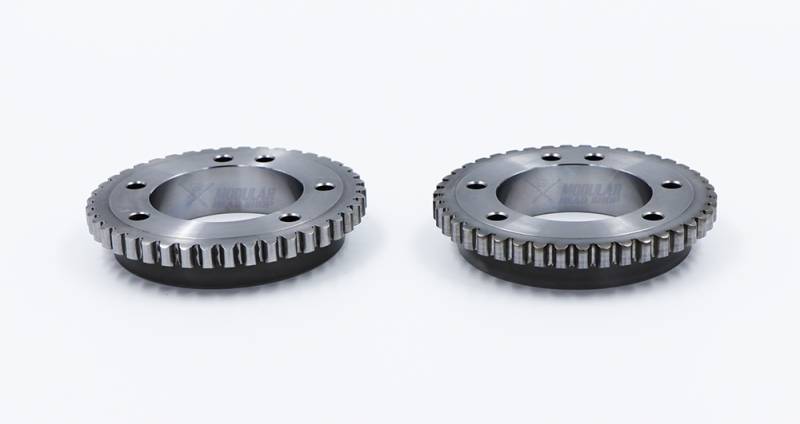

MHS 5.0L Coyote Competition Billet Primary Sprockets

MHS-501500
Compatible with both GEN 1 and GEN 2 Camshafts.
Not Available
Pricing: $649.00

Description

MHS 5.0L Coyote Billet Steel Primary Timing Chain Sprockets

  • Precision Machined Billet Steel Sprockets
  • Concentric Design for smooth operation at high RPM
  • Designed for use with GEN 1 Primary Timing Chains
  • Will work with most lockout plates
  • Can be used with OEM or MHS Big Chain GEN 1 or GEN 2 Secondary Sprockets
The Primary Sprockets are machined to be concentric, unlike the factory primary phasers.This helps reduce harmonics drastically. Your primary chains, guides and tensioners will see a lot less wear as well.

The Sprockets in this kit are made in small batches and go through a multi-step machining and heat treating process. The sprockets are first rough machined to .010" under, then stress relieved and shot peened and then through hardened. Once the heat treatment is done, the sprockets are machined to their final dimensions. All dimensions are held to extreme tolerances and once you hold these pieces in your hands, you will see for yourself that these are top notch quality.

We recommend using the RGR Engines Lockout Plate Kit with this setup. The RGR Kit will include all the hardware necessary.

Please Note: The Primary Sprockets supplied in this kit are machined to accept the stronger GEN 1 Primary Timing Chains. You must use GEN 1 Primary Timing Chains and a GEN 1 Crankshaft Sprocket with this kit. You can still use OE or MHS Big Chain GEN 2 Secondary Sprockets with these Primaries.


Details

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
  • W8.0000” x H8.0000” x L8.0000”
  • Free Shipping!
