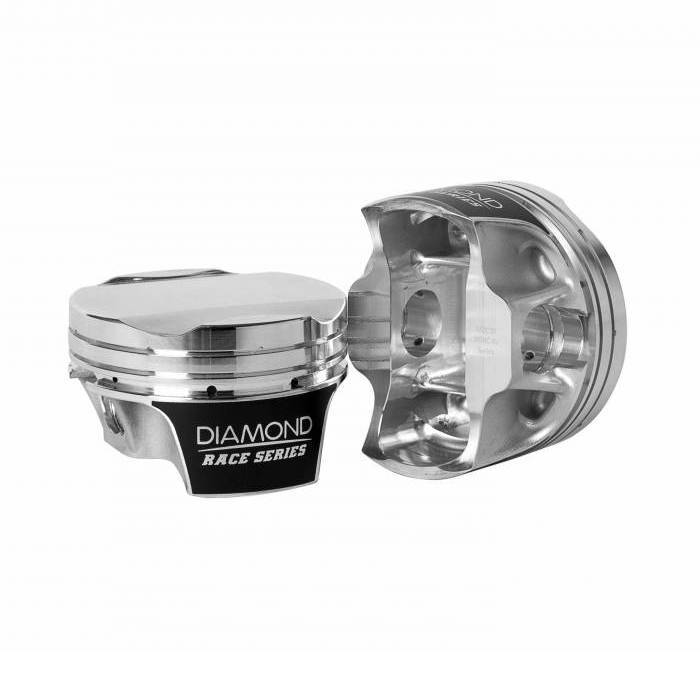

Diamond 30316-RS - Mod2k Race Series Piston / Ring Set for Ford 4.6L 4V -1.8cc Flat Top, 3.552" Bore, 3.543" Stroke, 5.933" Rod Length, 1.220" CD

Approx 10.3:1 Compression Ratio
Pricing: $1,279.94

Customize Your Item

- Add Ceramic Dome Coating? -
- Upgrade to Napier 2nd Rings -
Free Shipping!


Diamond's all new Mod2k Race Series Pistons for the Ford 4.6L 4V Engines are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support up to 2000 HP right out of the box!


  • 2618 Alloy Strutted Forging
  • Additional Pin Boss Struts for added strength
  • .325" Down Top Ring Land
  • .165" Intake / .070" Exhaust Valve Reliefs - Trough Style
  • Lateral Gas Ports for better ring seal
  • Moly Coated Skirts
  • Trend Performance .225" Wall H-13 Wrist Pins
  • Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional

Compression Ratio: 10.3:1
Compression ratio calculated with 3.650" Bore / .039" Compressed Thickness
Head Gasket with .010" Piston to Deck Clearance - 52cc Chambers


Part Number   30316-RS
Piston Material   2618 Aluminum Alloy
Fitment   Ford 4.6L 4V
Piston Volume  -1.8cc Flat Top
Bore  3.552"
Stroke  3.543"
Rod Length  5.933"
Compression Height  1.220"
Wrist Pin Dimesions .866" x 2.250" x .225" Wall
Wrist Pin Material  H-13 Tool Steel
Included Piston Ring Set  09053552




Shipping Information

  • Item Requires Shipping
  • 14.0 lbs.
  • W28.0000” x H12.0000” x L6.0000”
  • Free Shipping!
