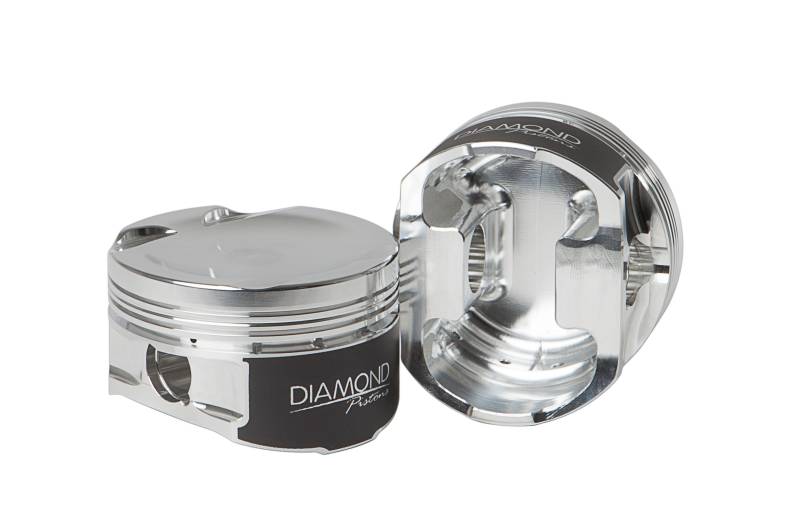

Diamond 30806 - 5.8L Shelby Series Piston / Ring Kit -30.5cc Dish, 3.670" Bore
Diamond's all new 5.8L Trinity Shelby Series Pistons feature a much taller compression height to bring the Piston closer to the deck. This drastically improves combustion efficiency and flame travel while allowing the rings to be spaced out for additional strength. These Pistons are designed to be used in a 5.8L Block that has been sleeved.
- 2618 Alloy Forging for High HP Applications
- .320" Down Top Ring Land
- .151" Intake / .050" Exhaust Valve Reliefs
- Moly Coated Skirts
- Premium 8620 Wrist Pins - H-13 Tool Steel Upgrade optional
- Total Seal AP Steel Piston Ring Set - Napier 2nd Rings
Compression Ratio: 8.5:1
Compression ratio calculated with 3.700" Bore / .036" Compressed Thickness
|Piston Material||2618 Aluminum Alloy|
|Fitment||Ford 5.8L Trinity - Factory Spray in Liner|
|Wrist Pin Dimesions||.866" x 2.500" x .180" Wall|
|Wrist Pin Material||8620 Alloy|
|Optional Wrist Pin Dimensions||.866"x 2.500" x .200" Wall|
|Optional Wrist Pin Material||H-13 Tool Steel|
|Included Piston Ring Set||09523670|
|Piston Ring Stack||1.2mm x 1.5mm x 3.0mm|
|Piston Ring Specifications||AP Steel Top, Napier 2nd, 3 Piece Stainless Oil|
H-13 Wrist Pin upgrade suggested for applications over 800 HP
- Item Requires Shipping
- 14.0 lbs.
- W28.0000” x H12.0000” x L6.0000”
