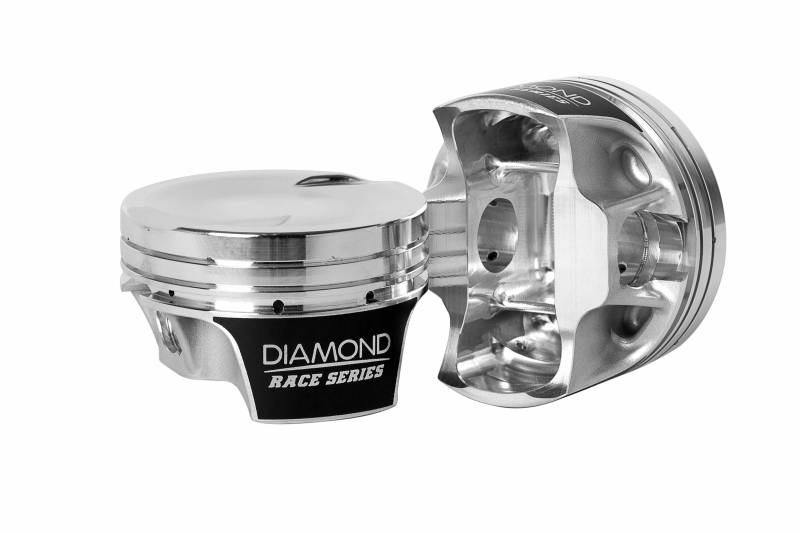

Diamond 30315-RS - Mod2k Race Series Piston / Ring Set for Ford 4.6L 2V TFS Heads -17.5cc Dish, 3.582" Bore, 3.750" Stroke, 1.200" CD
Diamond's all new Mod2k Race Series Pistons for the Ford 4.6L / 5.4L 2V with Trick Flow Twisted Wedge Heads are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support well over 1500 HP.
- 2618 Alloy Strutted Forging
- Additional Pin Boss Struts for added strength
- .325" Down Top Ring Land
- .180" Intake / .100" Exhaust Valve Reliefs
- Lateral Gas Ports for better ring seal
- Moly Coated Skirts
- Trend Performance .225" Wall H-13 Wrist Pins
- Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional
|Piston Material||2618 Aluminum Alloy|
|Fitment||4.6L 2V with TFS Heads|
|Piston Volume||-17.5cc Dish|
|Bore||3.582" - Standard Bore|
|Rod Length||5.850" - Standard Length|
|Wrist Pin Dimesions||.866" x 2.250" x .225" Wall|
|Wrist Pin Material||H-13 Tool Steel|
|Included Piston Ring Set||09053582|
Compression Ratios figured with 3.650" Bore x .039" Thick Head Gasket and .010" Deck Clearance
- Item Requires Shipping
- 14.0 lbs.
- W28.0000” x H12.0000” x L6.0000”
