Diamond 30313-RS - Mod2k Race Series Piston / Ring Set for Ford 4.6L 2V TFS Heads -17.5cc Dish, 3.562" Bore, 3.750" Stroke, 1.200" CD

Diamond Racing Products

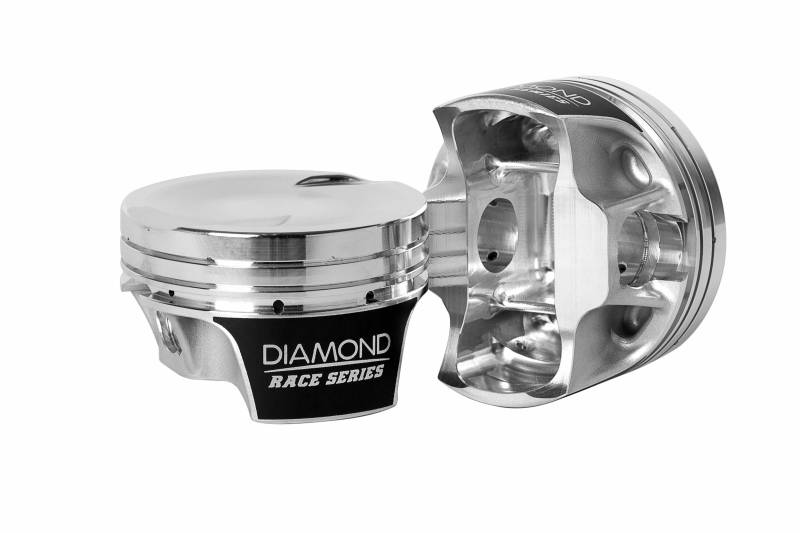

Click on image to zoom
Pricing: $1279.94

Customize Your Item

- Add Ceramic Dome Coating? -
- Upgrade to Napier 2nd Rings -
Qty:
Free Shipping!
DIA-30313-RS
  • DIA-30313-RS
    • (0) Reviews: Write first review

    Description

    Diamond's all new Mod2k Race Series Pistons for the Ford 4.6L / 5.4L 2V with Trick Flow Twisted Wedge Heads are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support well over 1500 HP.

    Features:

    • 2618 Alloy Strutted Forging
    • Additional Pin Boss Struts for added strength
    • .325" Down Top Ring Land
    • .180" Intake / .100" Exhaust Valve Reliefs
    • Lateral Gas Ports for better ring seal
    • Moly Coated Skirts
    • Trend Performance .225" Wall H-13 Wrist Pins
    • Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional

    Specifications:

    Part Number   30313-RS
    Piston Material   2618 Aluminum Alloy
    Fitment   4.6L 2V with TFS Heads
    Piston Volume  -17.5cc Dish
    Bore  3.562" - Standard Bore
    Stroke  3.750" Stroke
    Rod Length  5.850" - Standard Length
    Compression Height  1.200"
    Wrist Pin Dimesions .866" x 2.250" x .225" Wall
    Wrist Pin Material  H-13 Tool Steel
    Included Piston Ring Set  09053562
