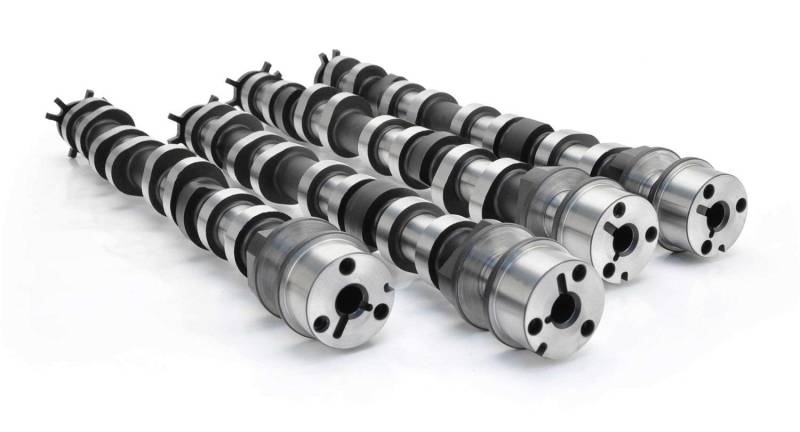

MHS 5.0L Coyote Race Turbo Camshafts

MHS-50-TBR
Upgraded Springs required.
Pricing: $1,899.00

Customize Your Item

- 5.0L Coyote Camshafts - Year -
 * required
Qty:
Free Shipping!

Description

Part Number  MHS-50-TBR
Name  5.0L Coyote Race Turbo
Duration @ .050"  236 / 234
Lift  .512" / .512"
Lobe Sep Angle  115.5 + 5.5
Center Lines  110 / 121
Springs Required?  Yes
Suggested Valve Springs  MHS / PAC Stage 3
Phaser Deletes Required   YES

These MHS 5.0L Coyote Race Turbo Camshafts are designed for high HP Street / Strip and Race applications. These camshafts will easily support 1300 - 1400 WHP, efficiently. Quick spool times, and excellent gains throughout the entire RPM band.  3500 - 4500 Stall recommended, depending on Turbo size and intended use. Will support 8500+ RPM. Ported heads not necessary but recommended for maximum gains.

Valve Events and Center Lines:
For large single and larger twin turbo applications, we typically will tighten up the LSA to improve spool time. 80mm + Single and 62mm + twin applications will benefit from this. We have had very good success tightening up the LSA to 112 - 112.5 and running 5.5 degrees of advance. Please contact us for any questions on degreeing these camshafts for your specific combination.

Phaser Deletes or Lockout Plates required.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 16.0 lbs.
  • W30.0000” x H8.0000” x L8.0000”
  • Free Shipping!
