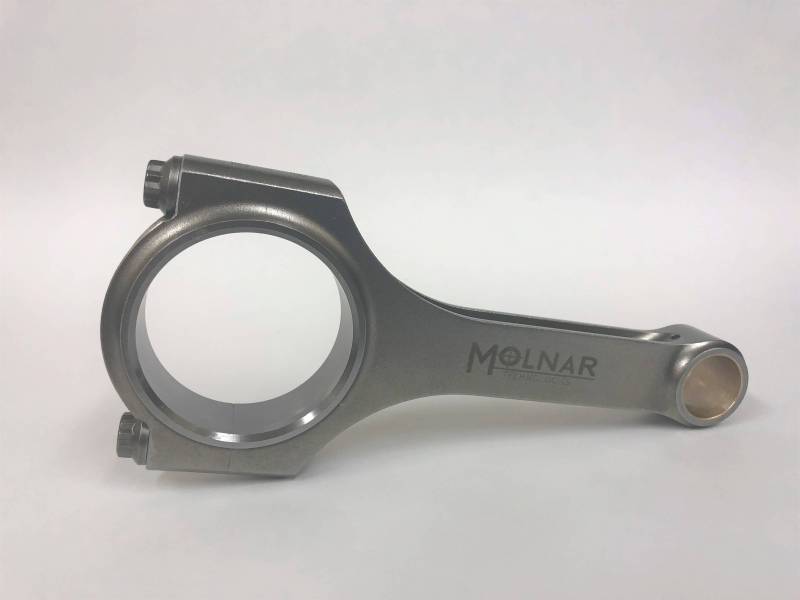

Molnar Technologies FH6657RFB8-A - Ford 5.4L / 5.8L H-Beam Connecting Rods

MOL-FH6657RFB8-A
Comes with 7/16" ARP 2000 Rod Bolts
Not Available
Pricing: $795.00

Description

The Molnar Technologies H-Beam Connecting Rods are recommended for applications up to 1200 HP. These Connecting Rods are forged from premium 4340 Steel and feature 7/16" ARP 2000 Rod Bolts.



Specifications



Part Number  MOL-FH6657RFB8-A
Application  Ford 5.4L / 5.8L
Length    6.657"
Big End Bore    2.239"
Wrist Pin  .866"
Big End Width   .940"
Pin End Width   .965
Rod Bolts  7/16" ARP 2000
Gram Weight   655g





Details

Categories

Shipping Information

  • Item Requires Shipping
  • 15.0 lbs.
  • W8.0000” x H6.0000” x L12.0000”
  • Free Shipping!
