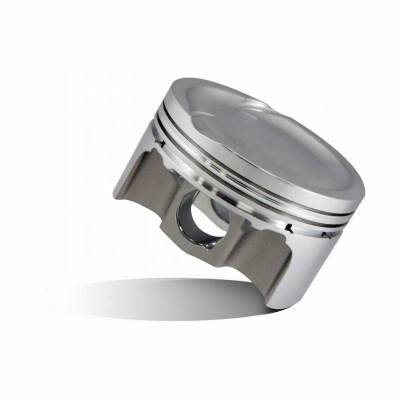

JE Pistons 314684 - Ford 5.4L 3V FSR Pistons -8.4cc Dish, 3.572" Bore, 4.165" Stroke, 6.657" Rod Length, 1.320" CD, .866" Pin

JEP-314684
11:1 Compression Ratio
Pricing: $970.84
Qty:
Free Shipping!

Description



Part Number  314684
Application Ford Modular 5.4L 3V
Bore  3.572"
Cubic Inch  334 CI
Stroke  4.165"
Rod Length  6.657"
Compression Height  1.320"
Piston Volume -8.4cc
Piston Skirt Design  Strutted - Forged Side Relief
Piston Average Weight  356g
Compression Ratio 11.0:1
Included Wrist Pin 866-2250-15-51C
Wrist Pin Material  5115 Alloy
Wrist Pin Dimension  .866" x 2.250" x .150" Wall - 98g
Optional Wrist Pin Upgrade 866-2250-23-93C
Optional Wrist Pin Material  9310 Alloy
Optional Wrist Pin Dimesions .866" x 2.250" x .230" Wall - 132g
Ring Stack  1.2mm x 1.5mm x 3mm
Recommended Piston Ring Set  JG3208-3571-0
Recommended Piston Ring Details  Gas Nitrided Steel Top, Cast Iron 2nd, Low Tension Oil

These JE FSR Pistons are specifically designed for high horsepower Ford Modular applications. The new FSR - Forged Side Relief strutted forging allows for a good amount of weight savings while adding material where it's needed for extra strength. This particular set of Pistons fits the 5.4L 3V Engine and has valve reliefs to accommodate aftermarket camshafts. The 5.4L specific pistons have a raised compression height bringing the piston crown closer to the top of the deck. The stock 5.4L pistons sit down in the bore around .120" which is not very efficient. By bringing the crown of the piston closer to the deck of the block, combustion efficiency and flame travel is significantly improved. Supplied with .150" Wall 5115 Alloy Wrist Pins. Optional .230" Wall 9310 Alloy Wrist Pins available as an upgrade and suggested for 700 + HP.



Details

  • JEP-314684
  • JEP-314684
  • JE Pistons
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W12.0000” x H6.0000” x L12.0000”
  • Free Shipping!
