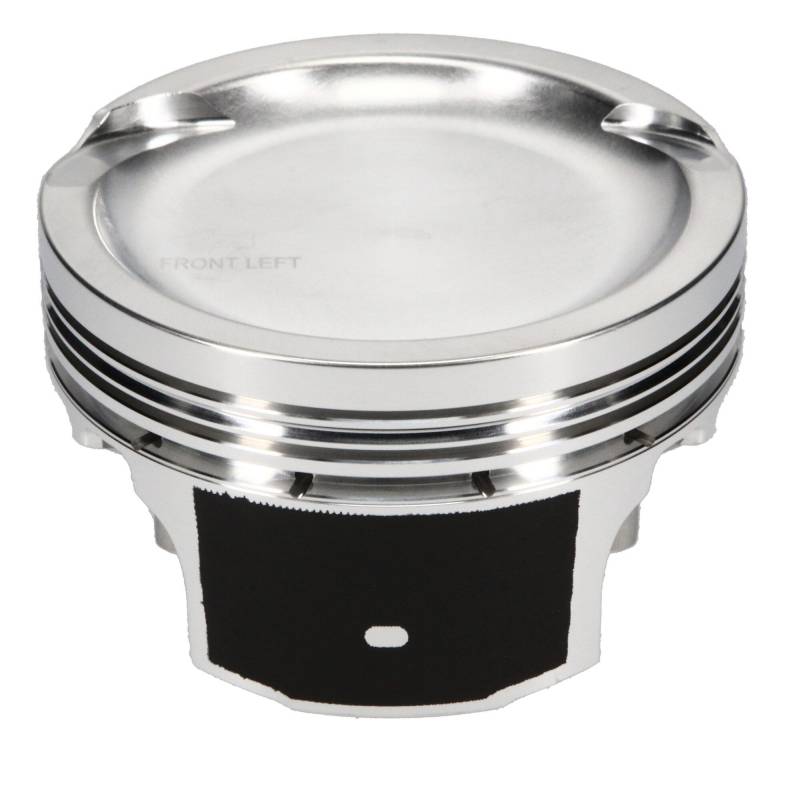

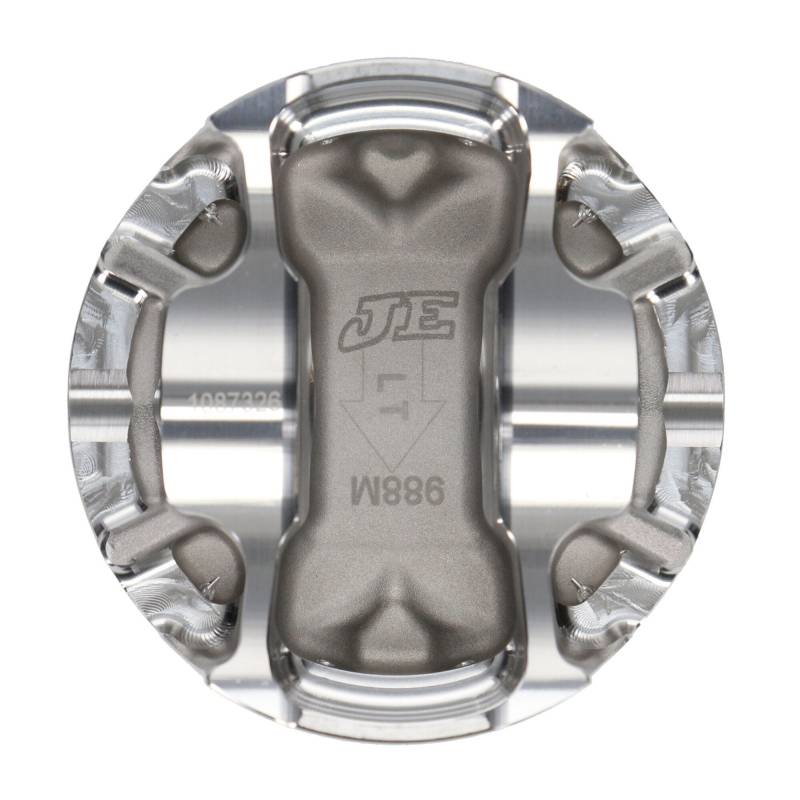

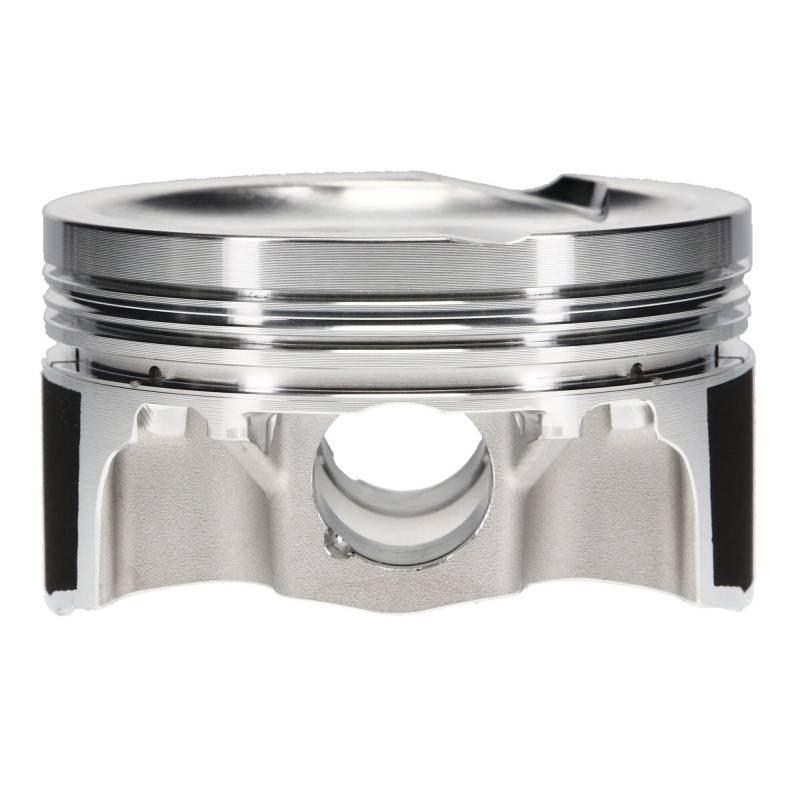

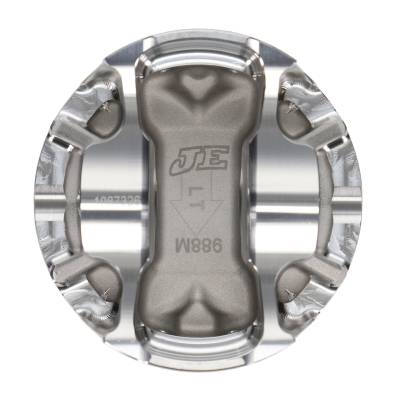

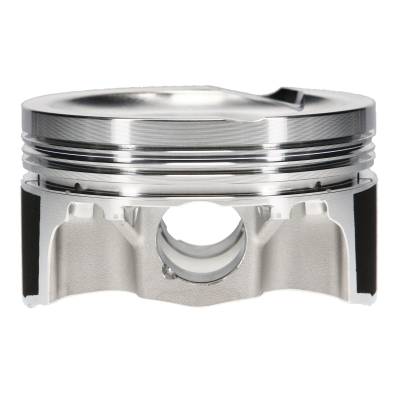

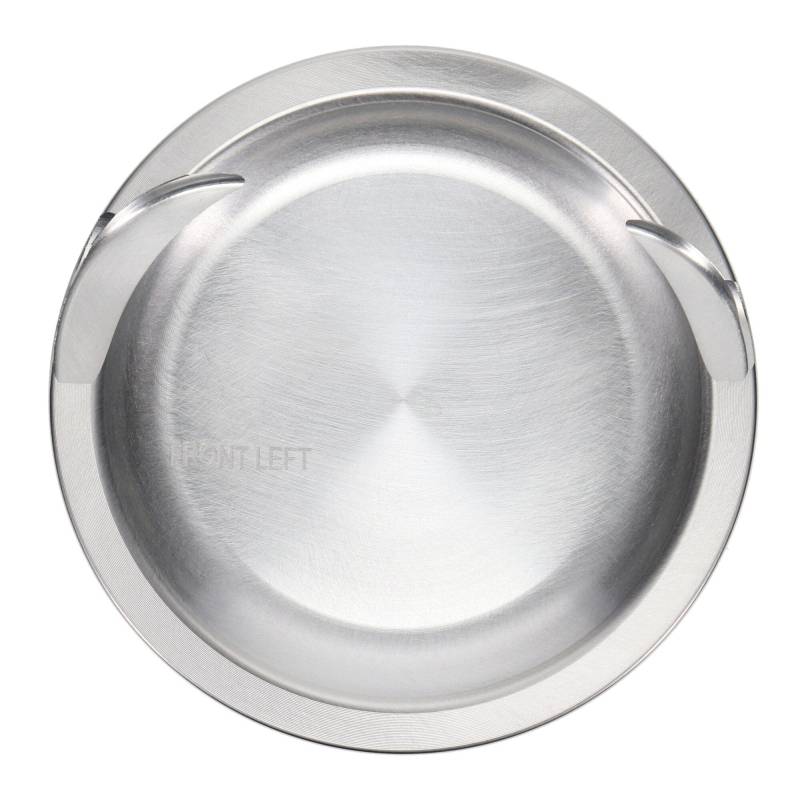

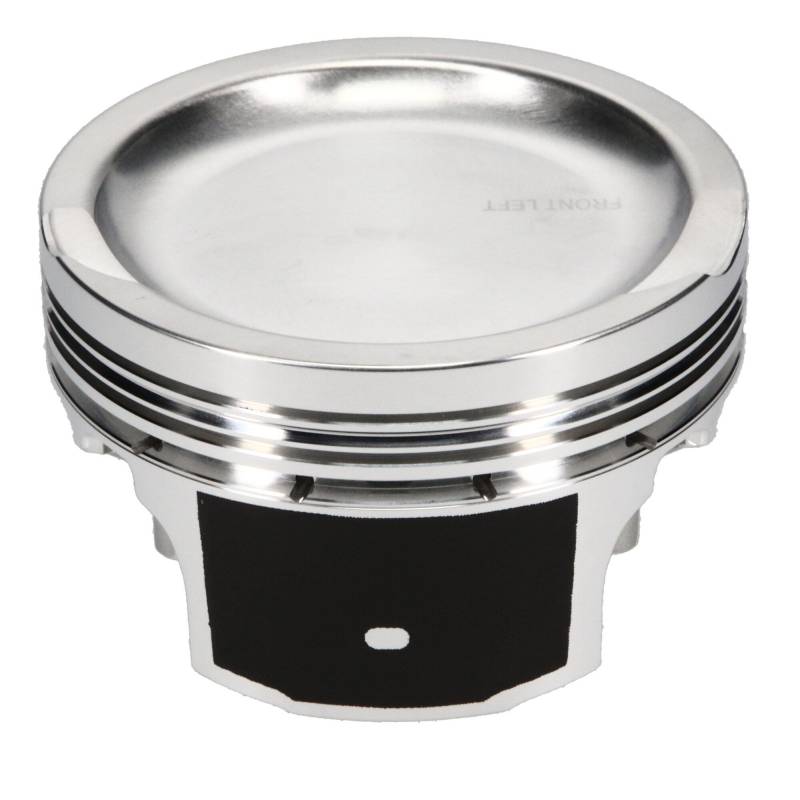

JE Pistons 314571 - Ford 4.6L 2V FSR Pistons -9.3cc Dish, 3.622" Bore, 3.543" Stroke, 5.933" Rod Length, 1.220" CD, .866" Pin

JEP-314571
Pricing: $724.99
Qty:
Free Shipping!

Description



Part Number  314571
Application Ford Modular 4.6L 2V
Bore  3.622"
Cubic Inch  292 CI
Stroke  3.543"
Rod Length  5.933"
Compression Height  1.220"
Piston Volume -9.3cc
Piston Skirt Design  Strutted - Forged Side Relief
Piston Average Weight  345g
Compression Ratio - 2V PI 42cc 11.0:1
Included Wrist Pin 866-2250-15-51C
Wrist Pin Material  5115 Alloy
Wrist Pin Dimension  .866" x 2.250" x .150" Wall - 98g
Optional Wrist Pin Upgrade 866-2250-23-93C
Optional Wrist Pin Material  9310 Alloy
Optional Wrist Pin Dimesions .866" x 2.250" x .230" Wall - 132g
Ring Stack  1.0mm x 1.2mm x 2.8mm
Recommended Piston Ring Set  JG1008-3622
Recommended Piston Ring Details  Gas Nitrided Steel Top, Ductile Iron Napier Cut 2nd, Low Tension Oil

These JE FSR Pistons are specifically designed for high horsepower Ford Modular applications. The new FSR - Forged Side Relief strutted forging allows for a good amount of weight savings while adding material where it's needed for extra strength. This particular set of Pistons fits the 4.6L 2V Engine with a standard stroke crankshaft and has valve reliefs for the 2V PI Cylinder Head. Supplied with .150" Wall 5115 Alloy Wrist Pins. Optional .230" Wall 9310 Alloy Wrist Pins available as an upgrade and suggested for 700 + HP.
