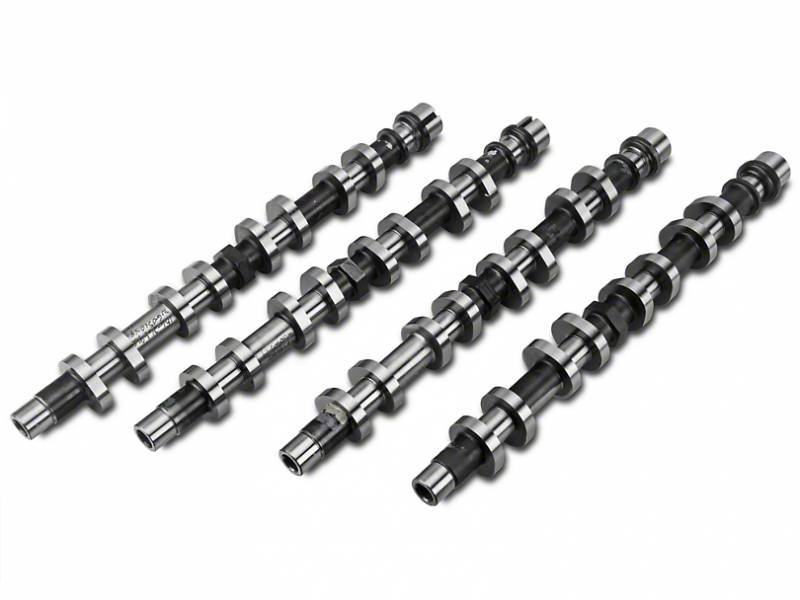

MHS 4.6L / 5.4L 4V Stage 3 N/A Camshafts

MHS-4V-STG3NA
Upgraded Springs required.
Pricing: $1,349.00
Qty:
Free Shipping!

Description

Part Number  MHS-4V-STG3NA
Name  4V Stage 3 N/A
Duration @ .050"  230 / 228
Lift  .480" / .480"
Lobe Sep Angle  109 + 3
Center Lines  106 / 112
Springs Required?  Yes
Suggested Valve Springs  MHS / PAC Stage 2 or Stage 3
Valve Reliefs Required?   No

These Camshafts should be used with a built bottom end due to RPM range. 11:1 Compression, Long Tube Headers, upgraded MAF and Fuel Injectors highly recommended. Ported Cylinder Heads optional but will definitely improve power production. Short runner intake suggested. These Camshafts focus mostly on mid-range power improvement but will pull very hard in the upper RPM range. Shift points can be anywhere from 6800 - 7200 RPM depending on what cylinder heads and intake manifold are used. 3.73 - 4.10 gears and 3000 - 3200 stall suggested. Choppy lope at idle.

Details

Shipping Information

  • Item Requires Shipping
  • 16.0 lbs.
  • W30.0000” x H8.0000” x L8.0000”
  • Free Shipping!
