Boundary Pump Division 4.6L 4V Oil Pump Assembly with Pickup

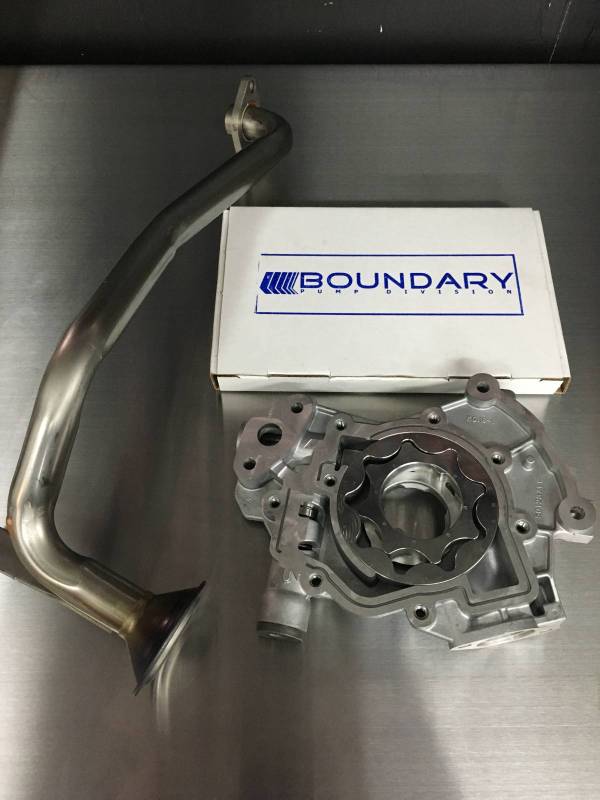

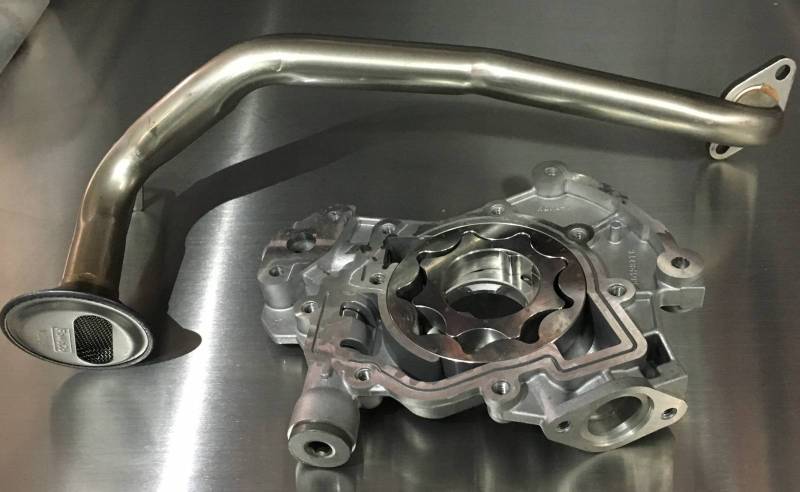

Ford 4.6L High Volume Oil Pump Housing with Boundary Billet Gear Installed and OEM Ford Pickup Tube - Fits Mustang Oil Pans
Pricing: $375.00



Boundary Pump Division 4.6L 4V Oil Pump Assembly with Pickup

Boundary Pump Division Billet Oil Pump Gears are of the finest available for the Ford Modular Engines. We have been using these for some time now and will continue to use them on nearly every engine we build. These gears have been proven in applications of up to 1500 HP and we recommend them for any application over 500 HP. This Oil Pump Assembly comes with an OEM Ford 4V Oil Pump Housing with a Boundary Billet Gear Set installed and a 4.6L 4V 15/16" Pickup Tube. Pickup Tube will fit the Mustang Oil Pans only. Make sure your tube to pan clearance falls between .320-.370". Too close and the pickup will have issues with picking up the oil. Too far, and you are simply cheating yourself out of oil capacity.

  • Machined from Heat Treated 4130 Chrome Moly Billet Steel
  • Machined in matched sets
  • Shipped with Blueprinting Paperwork
  • Made in the USA
  • Guaranteed forever, as long as you... or the next guy / gal owns them
  • Includes an OEM Ford Pump Housing and 15/16" Pickup for Mustang Pans



Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W6.0000” x H6.0000” x L6.0000”
